(3) Operation section

31
35
37
39
40
41
31. Ready indicator
32. Data indicator
33. Attention indicator
34. Message display
35. Left select key
36. Right select key
R R eady eady Data Data
Logout Cancel
Menu enu
Back Back

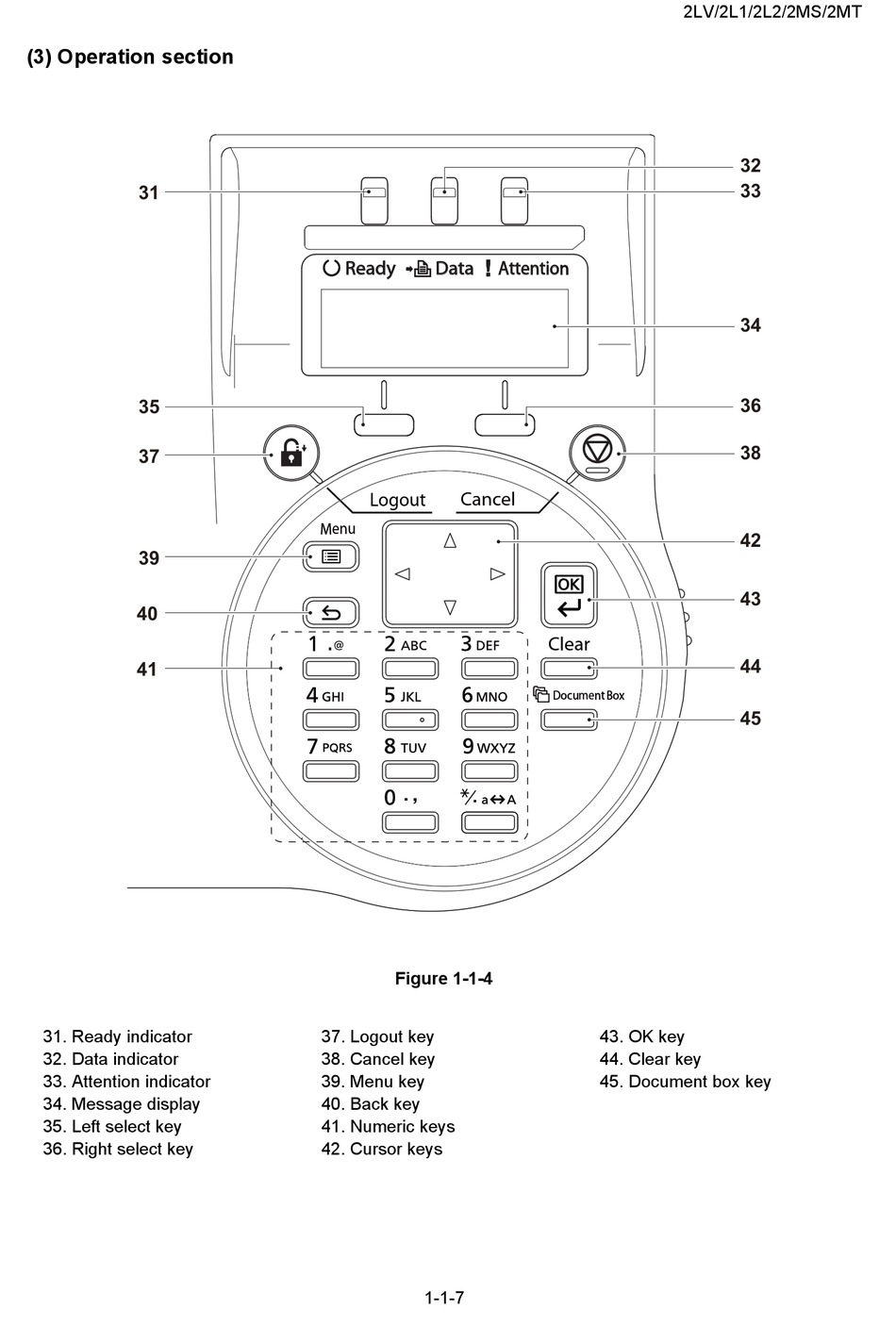

Figure 1-1-4
37. Logout key
38. Cancel key
39. Menu key
40. Back key
41. Numeric keys
42. Cursor keys
1-1-7
Attention Attentio
Clear Clear
Docume ment Box
43. OK key
44. Clear key
45. Document box key
2LV/2L1/2L2/2MS/2MT
