* Easily cleanable
* Sturdy, level and horizontal
* Capable of sustaining weights up
to 300 lbs.
* 2.5" round hole drilled for hoses
(see "Footprint" for hole location)
* Clearance: 1" behind, 3" in front
Water requirement
* 3/8" cold water supply line
* Properly treated water required for
warranty (see below for details)
* Shut-off valve
* Located within 5' of the machine
* Braided stainless lines provided
Proper water filtration and regular filter changes are a requirement to keep your factory
warranty valid and your machine functioning properly. It is highly recommended that you
contact a professional water filtration specialist in your area and have your water tested
to determine the proper filtration system. It is important to note that many municipalities
change their water sources throughout the year, so periodic water tests may be necessary.
Water Standards to keep your warranty valid:
Total Dissolved Solids (TDS) 30 to 200 ppm (parts per million)
Total Hardness - in ppm Less than 85 ppm
Total Hardness - in grains 3 to 5 grains (divide ppm by 17.1 to get grains)
pH 6 pH to 8 pH
Chloride 0 ppm - any Chlorides can be corrosive and harmful
Total Alkalinity Less than 100 ppm
Chlorine 0 ppm
Iron 0 ppm
Technical Manual

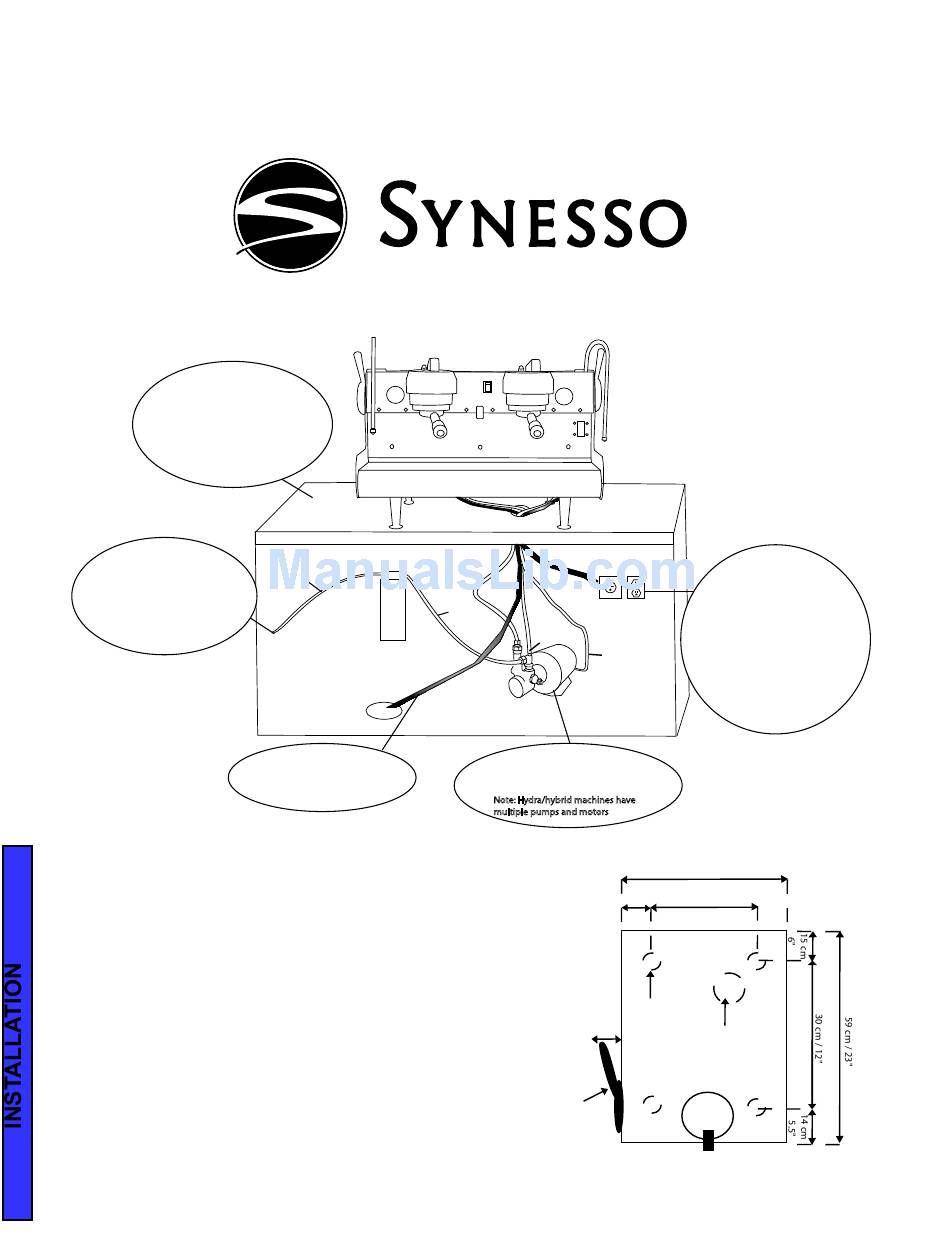

INSTALLATION DIAGRAM
Incoming Water
Filtration System
Drain hose
Drainage requirements:
Located within 5' of the machine.
Drain hose should run as vertically
away from the machine as possible.
Water Requirements
Water from
Mains
pump to groups
power
Treated
Water
water to
to steam
pump
tank
Pump and Motor:
Located within 5' of the machine.
Dimensions: H 6.5"x W 5.5"x D 9.5"
Note: Hydra/hybrid machines have
multiple pumps and motors
Legend:
X: 1 group: 39.5cm / 16"
2 group: 67cm / 26"
3 group: 94cm / 37"
Y: 1 group: 21cm / 8"
2 group: 48 cm / 19"
3 group: 76cm / 30"
7 cm
Steam handle
6
Electrical requirements:
1 Group 110v: 60 hz, 20 amp
1 Group 220v: 50/60 hz, 16 amp
2 Group: 220v, 50/60 hz, 28 amp
3 Group: 220v, 50/60 hz, 36 amp
Hydra Electrical Requirements:
Power
to
2 Group: 220v, 50/60 hz, 30 amp
3 Group: 220v, 50/60 hz, 40 amp
pump
*Located within 3' of machine
MACHINE FOOTPRINT
X
Y
8.5cm
4"
Foot diameter
Hole for
3.1cm / 1.25"
hoses
3"
6.5cm / 2.5"
View of top of
1 group machine
Front of machine
