Synesso Espresso Machine Technical Manual page 43

PROGRAMMING
(NOTE: Options for adjustments to brew groups 2, 3, and 4, if applicable, will appear on the following
screens of the control panel interface. Adjustments for 'Temperature Control' as well as 'Optional
Features' on these brew groups will be the same as the instructions for brew group 1. These screens
are omitted from this manual for simplicity.)

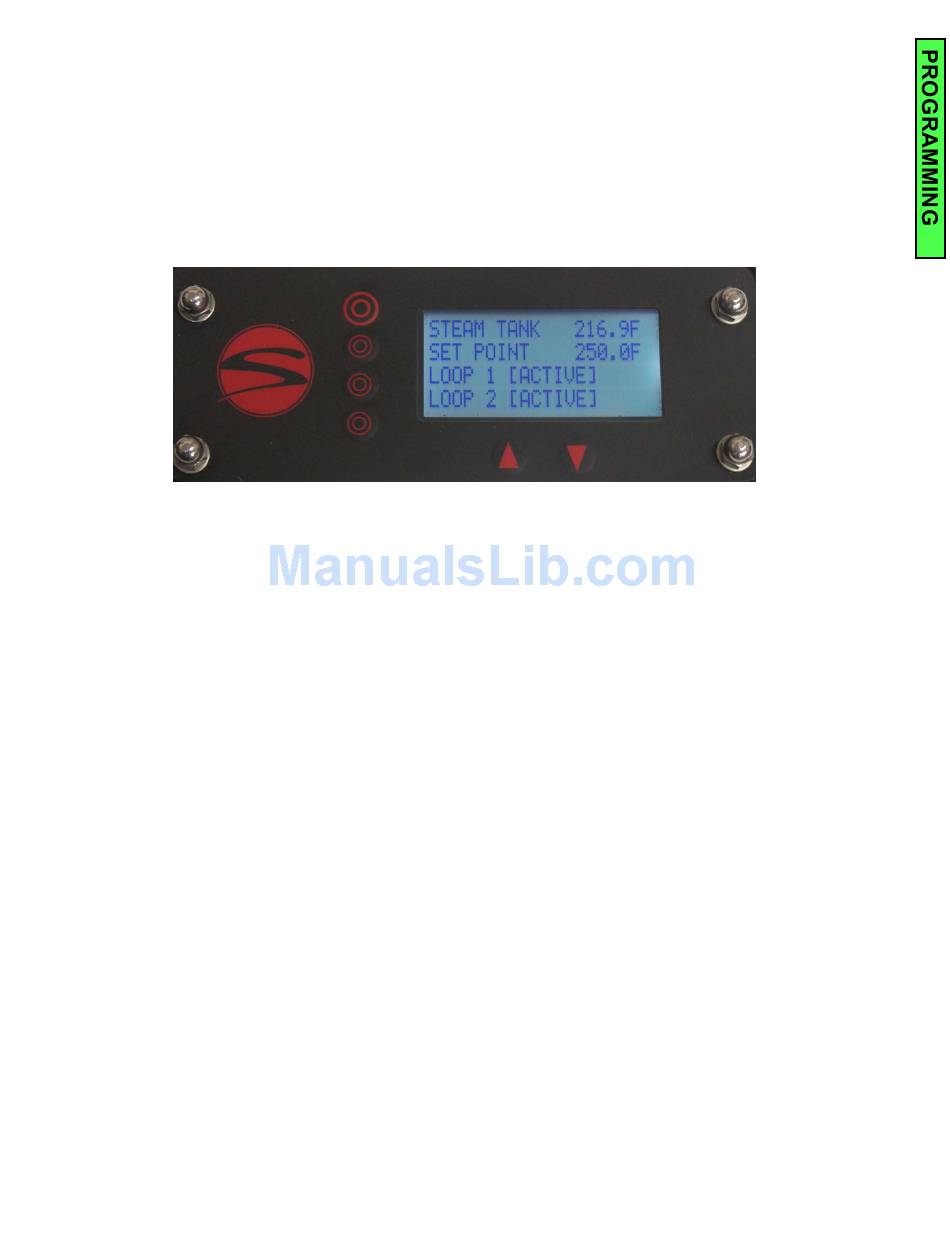

Line 1 The Steam Tank Temperature Control screen indicates the current temperature being
recorded by the steam tanks temperature probe, 216.9F in this example. Once this temperature
reaches the set point, the digital display will continuously cycle up and down by small increments as
the electronics balance the temperature.
Line 2 is indicating the factory set point of 250.0F (121.1C). The adjustable set range for the steam
tank is between 170F and 270F (76.6C and 132.2C).
Line 3 and 4 are indicating that loops 1 and 2 of the elements are activated.
To change the temperature set point, press the button next to line 2. The current set temperature
(250.0F), will begin to flash. To adjust the temperature settings, press the '▲' or '▼' buttons until the
desired temperature is reached. Press the button next to line 2 to confirm the new temperature point.
To turn off loop 1 or 2 of the element, press the button associated with the appropriate line. The
indicator reading [Active] will begin to flash. Press either the '▲' or '▼' button to select [off], followed
by the line 3 or 4 button accordingly, to confirm the selection.
Turning off either loop 1 or 2 of the element can be used as a troubleshooting procedure and is not a
recommended method of energy conservation.
To cycle to the next display screen in the menu level, press the button next to line 1.
Technical Manual 43
