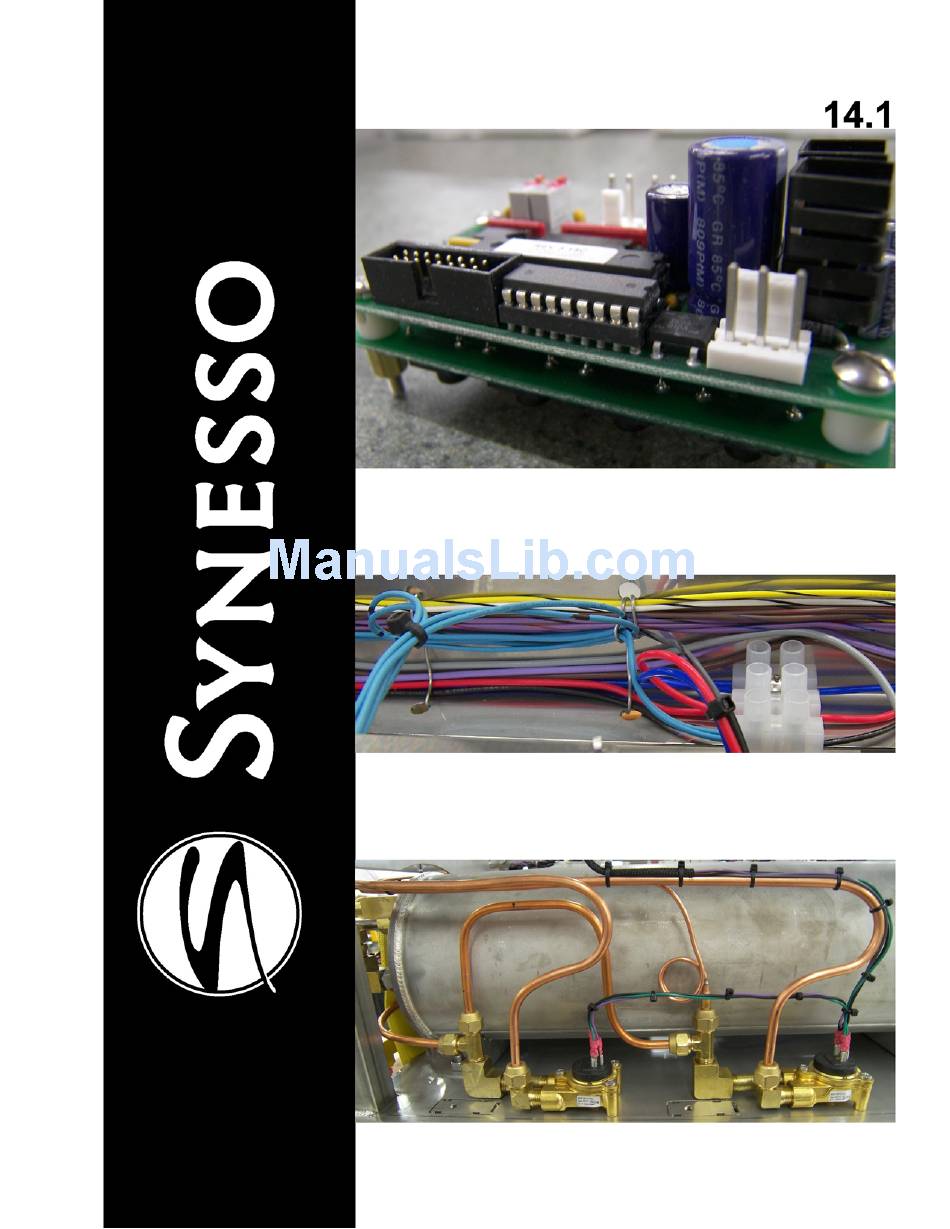

  • Page 1 Technical Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS   Introduction Safety Warnings   Tools + Supplies   Warranty   Installation   Plumbing Requirements   Electrical Requirements   Hydra/Hybrid   Hydra Bypass installation and Setup   Operation   Hydraulic System   Water Inlet System Water Outlet System  ...

  • Page 3: Introduction

    This manual applies to all Synesso™ models: Cyncra, Sabre, Hydra and Hybrid machines. The Cyncra is Synesso’s™ manual machine, available in 2 and 3 group models. The Sabre is a volumetric machine, also available in 2 or 3 group models. Hydra machines have an individual pump and motor per group head and can accommodate 4-stage pressure ramping on all groups.

  • Page 4: Safety Warnings

    The hot water mix valve can be adjusted to deliver water as hot as 212°F (100°C), which can cause severe burns: please use caution when activating this water source.     Safety Label Locations: Synesso™ complies with UL regulations by posting the following labels on its machines: Electrical box: California only:  ...

  • Page 5: Safety Precautions

    Safety Precautions: Espresso machines have numerous potential hazards, and it is of paramount importance to Synesso™ that people servicing our machines take all necessary precautions to ensure their personal safety. When working on the machine’s boilers (unless otherwise instructed in the directions): Turn the machine off and shut off the incoming water supply.

  • Page 6: Tools + Supplies

        TOOLS AND SUPPLIES   Tools and recommended Items required to fully diagnose, service and maintain Synesso™ machines   Multi Meter – reads volts, amps and ohms. Die and Tap, 1/8” NPT and 1/4” NPT • • (The Fluke T5-600 is recommended) Tap for Threads, 10 - 32 and 3/8 –...

  • Page 7: Warranty

      Synesso’s™ liability is limited to the purchase price of the product and Synesso™ shall not be held liable for damages that extend beyond the product itself. Synesso’s™ liability of consequential, incidental damages, indirect or direct damages for personal injury, inability to properly use this product, loss of business profits or interruption to business is expressly disclaimed.

  • Page 8: Installation

      INSTALLATION   To maintain the 1 year warranty, an authorized or certified espresso service representative must perform the installation of this espresso machine. Site Preparation - See Diagram p.9     The machine must be placed on a level horizontal surface that can be easily cleaned and is capable of sustaining a minimum of 300 lbs.
  • Page 9 INSTALLATION      ...

  • Page 10: Plumbing Requirements

      LUMBI ING R REQU IREM MENTS This s equipmen t must be in nstalled to c comply with h the applic cable federa al, state or local plumb bing codes. TER TREAT TMENT IS REQUIRED D TO PRES SERVE THE E FULL MA ACHINE WA ARRANTY.

  • Page 11: Electrical Requirements

      ELECTRICAL REQUIREMENTS All Synesso™ machines are rated to operate on 220v AC with a 50 or 60 Hz frequency, single phase. Machines will operate between 208v and 240v.     Listed amp ratings are all measured at 220v. Incorrect voltage can cause malfunction or damage to the machine.

  • Page 12: Hydra/Hybrid

    In contrast, a Cyncra or Sabre has a single pump and motor for the entire machine. Having individual pumps and motors allows the operator to set a separate brewing pressure per group head, and each group functions independently without affecting the pressure at the other groups.

  • Page 13: Hydra Bypass Installation And Setup

    Pressure regulator: Used to achieve the stage 1 low pressure pre-infusion. It is set and tested at 50 psi in the Synesso™ factory. This pressure setting can be lowered if desired, but 50psi is the maxi- mum output pressure. To adjust the pressure regulator, first loosen the nut on the threaded post, then turn the post counter-clockwise to decrease pressure.

  • Page 14: Operation

    Once the desired pressure is reached, retighten the lock nut. Please allow at least 30 minutes of “warm up” time before using your Synesso™espresso machine to brew shots or steam milk. The steam gauge (the left hand gauge) should read a minimum of 1.1 Bar.
  • Page 15 Select the correct spout and basket configuration. Single, double and bottomless portafilters are available through Synesso™. The single spout portafilter is used with a single (7g) basket to brew a single shot. The double spouted or bottomless portafilters can be used with double (14g) or triple (18g or 21g) baskets to brew triple, double, or 2 single shots of espresso.
  • Page 16 Remove the wand from the milk, purge, and wipe clean immediately after each use.     NOTE: Although Synesso™ steam wands are made with a proprietary double-walled process that helps to keep the outer wall cooler, the tip and base can become very hot and caution must be used.  ...

  • Page 17: Hydraulic System

    Overview   The hydraulic system in the Synesso™ is comprised of all parts through which water flows starting with where it enters the machine from the water treatment/filtration system. This chapter will detail the flow of water and some of the associated electrical components.
  • Page 18         1.451   1.452 1.225 1.225 1.225 1.453       STEAM TANK STEAM TANK                       1.320 BREW TANK #1     1.313     1.321 BREW TANK #3 1.313  ...
  • Page 19 HYDRAULIC SCHEMATIC - SINGLE INLET                                                                        ...
  • Page 20 HYDRAULIC SCHEMATIC - HYDRA                                                                          ...
  • Page 21       Pump configurations: Until serial number 356, Synesso™ ma- chines had a single inlet configuration as the standard. After 356, the dual inlet con- figuration is the standard. Hydras have a separate pump and motor per group, there- fore all Hydras come equipped with single inlet style pumps.

  • Page 22: Water Inlet System

      Brew Gauge: The brew gauge reflects pressure in the brewing system. On a Cyncra or Sabre, there is one gauge for the entire brew system; on a Hydra, each brew tank has its own brew gauge. The gauge normally moves between 3-5 bar (line pressure) to 9 bar (brewing pressure) and up to 12 bar (expansion pressure) at which point the expansion valve releases the excess pressure.
  • Page 23   Cold Water Valve: Synesso™ machines have 2 valves which provide water to the americano / tea spout: the hot and cold water valves. Mixing in cold water allows the user to moderate the temperature at the spout. Boiling water is not appropriate for all beverages.
  • Page 24   HYDRAULIC SYSTEM MAjOR COMPONENTS OF THE WATER INLET SYSTEM (CONT.) Steam Inlet Check Valve: See Brew tank check valve description. (Page 22).     Steam Inlet Water Control Valve: When the upper level probe (Page 25) detects an absence of water, the control board will send a signal to open this valve and allow water into the steam tank.

  • Page 25: Water Outlet System

      Brew Tank: Synesso’s™ brew tanks are entirely stainless steel, welded internally and externally to be water tight and thermally stable. Each brew tank has its own temperature probe and element which allows the user to set different temperatures on each group, as well as operate without a group if a serious service issue arises.
  • Page 26 Detects whether the desired water level has been reached. Water level is adjustable by rotating the entire probe to raise the tip out of the water. The tank will then fill to the new set height.   2011 3 Group Cyncra outlet (left) side  ...

  • Page 27: Electrical System

      SAFETY NOTE: Please use caution when working on any part of the Synesso™ electrical system. Live current poses the risk of electrical shock, harm, permanent injury or death. Take all appropriate precautions, including turning off the machine, breaker, and/or unplugging the unit prior to working on the machine.
  • Page 28   ELECTRICAL SYSTEM POWER / CONTROL BOARD +5v COMMON TO SWITCHES AC IN TO BOARD GROUND  ...

  • Page 29: Electrical Box

    Synesso™ machine. Since the 2 boxes represented below have many of the same components, they have been labeled with numbers for matching components and the descriptions follow in the next pages.
  • Page 30 ELECTRICAL SYSTEM   ELECTRICAL BOX (CONT.) 1. Brew Relays: Switches high voltage onto the brew tank heating elements.     2. Pump Wire(s): Carries 220v to the pump motors from the electrical box. Contains 3 wires: black (110v), white (110v) and green (ground). A fourth wire (Red), is used for bypass system control when appropriate.
  • Page 31 ELECTRICAL SYSTEM   ELECTRICAL SCHEMATIC    ...

  • Page 32: Programming Machine Functions (Level1)

      PROGRAMMING   This programming section applies to all Synesso™ machines after machine #1051. These machines have a hand held (wired) keypad, pictured below, to allow the user to comfortably view and change the machine settings.   This is the first screen of the display: Temperature Overview  ...

  • Page 33: Brew Temperature Control

      PROGRAMMING This is the second screen of the display: BG1 Temperature Control     Line 1 of the BG1 Temperature Control screen indicates the current temperature being recorded by the first position brew group’s temperature probe, LOW in this example. Once this temperature reaches the set point, it will continuously cycle up and down by small increments as the electronics balance the temperature.

  • Page 34: Auto Bypass And Auto Flush

      PROGRAMMING   This is the third screen of the display: BG1 Auto Bypass and Auto Flush     Line 1 indicates the brew group to be adjusted. Line 2 indicates whether the automatic bypass is currently [ON] or [OFF]. This feature is only avail- able on volumetric machines with bypass hardware installed.

  • Page 35: Steam Temperature Control

          PROGRAMMING (NOTE: Options for adjustments to brew groups 2, and 3 if applicable, will appear on the following screens of the control panel interface. Adjustments for ‘Temperature Control’ as well as ‘Optional Features’ on these brew groups will be the same as the instructions for brew group 1. These screens are omitted from this manual for simplicity.)  ...

  • Page 36: Hot Water Tap

    PROGRAMMING           Line 1 indicates that you are on the Hot Water Tap control screen.     Line 2 indicates the adjustable amount of time that the hot water tap will run before shutting off.    ...

  • Page 37: Error Code Key

        In an effort to prevent damage to machines and to help operators troubleshoot issues, Synesso™has engineered several safeguards into the programming. These codes will help users identify operational issues with the machine as well as automatically prevent greater problems from occurring. By understanding these codes, operators can remedy issues more quickly.

  • Page 38: Error Code Flow Charts

       ...
  • Page 39      ...
  • Page 40    ...
  • Page 41      ...
  • Page 42   PROGRAMMING STEAM SYSTEM ERROR CODES   With regard to the error codes associated with water level control, there is a cascading effect as the water level in the boiler drops. For example, if the water inlet to the tank is clogged or the fill solenoid fails, the system will be unable to re-fill the boiler.
  • Page 43    ...
  • Page 44                                                                                  ...
  • Page 45            ...
  • Page 46   PROGRAMMING There are 3 menu levels accessible to technicians. Menu level 2 may only be reached from level 1 and level 3 may only be reached from level 2.     To access menu level 2 - From the ‘Temperature Overview’ screen, press and hold both the line 4 button and up arrow, for approximately 4 seconds.
  • Page 47   PROGRAMMING Menu Level 2: Steam Tank Fill Probe                 Line 1 indicates that you are on the Steam Tank Fill Probe control screen. Line 2 of this display screen is showing a 5 second delay indicating that the fill probe will wait this long before turning on or off the steam tank fill valve.
  • Page 48 Set Temperature. Line 3 represents the actual temperature reading of water flow through the puck. Line 4 indicates the temperature adjustment made at the Synesso™ factory, in order to create the exact temperature desired at the puck.  ...
  • Page 49 Line 2 indicates the actual water temperature at the steam tank temperature probe, as the electronics maintain your Set Temperature. Line 4 indicates the temperature adjustment made at the Synesso™ factory, in order to create the exact temperature desired in the steam tank. This offset should not be altered without first consulting Synesso™.
  • Page 50     PROGRAMMING   Menu Level 2: Power Save Mode Setup   Line 1 indicates that you are on the Power Save Mode screen. Line 2 of the Power Save Mode in this example is indicating the timers are [ENABLED], making adjustments to lines 3 and 4 available.
  • Page 51   PROGRAMMING Menu Level 2: Error Log                           Line 1 indicates that you are on the Error Log screen. Line 2 indicates the last error that occurred. If no error has occurred, this line will simply read ‘NO ERROR’.
  • Page 52   PROGRAMMING Menu Level 3: Volumetrics       Volumetric functions (such as Automatic Bypass) are only applicable on machines with volumetric hardware.   If the machine has volumetric hardware installed, this indicator should be left [ON].        ...
  • Page 53 The Full Reset to Defaults option can be achieved by pressing the line 3 button. This option will undo ALL changes that have been made to the machine. This includes the Synesso™ programmed offsets, serial number and machine configuration information.
  • Page 54 (PID controller) is a sequence of algorithms using separate, finely tuned parameters to achieve a desired set point. Synesso™ strongly recommends against altering these parameters. Line 2 indicates the P Gain (Proportional Gain) value. Line 3 indicates the I Gain (Integral Gain) value.
  • Page 55   PROGRAMMING Menu Level 3: Return Line 1 indicates that you are on the Return screen Line 2 will return to menu level 1 (Operation menu). Line 3 will return to menu level 2 (Settings menu).  ...

  • Page 56: Volumetric Programming

      PROGRAMMING VOLUMETRIC PROGRAMMING This section contains instructions for programming the volumetric dosing on Sabre machines and Hybrid machines with volumetric group heads. Basic machine programming is found on page 31.       Pitcher / continuous Shot buttons flow button  ...

  • Page 57: Maintenance

      Back-Flushing This process forces water through the inlet tube and drain system. This should be performed on EACH brew group daily. On the current generation of Synesso™ machines, back-flushing can be automated. See page 18. To back-flush manually: Replace the filter basket with the ‘blind’ basket, which has no filter holes.

  • Page 58: Maintenance Schedule

    Change these items if they show damage or overuse. Briefly inspect the machine for leaks or potential issues. Contact Synesso™or your local distributor or service agent to order parts and/or request service.

  • Page 59: Troubleshooting

      TROUBLESHOOTING This is a troubleshooting guide for some of the common issues that operators might encounter when using their machine. For more detailed assistance with technical issues, contact your distributor or local service agent. The machine may be reset by powering off for 10 seconds. Brewing problems The shot is pouring too slowly: o Tamp pressure was too firm...
  • Page 60   TROUBLESHOOTING Brew Gauge Brew Pressure gauge needle value changes often: o This is normal. The lowest number (usually 3-5 bar) reflects the incoming line pressure. When brewing the needle reflects brew pressure (8.5-9 bar). When the brew tanks heat, the water expands and the expansion valve relieves the pressure at 11 or 12 Bar.
  • Page 61   TROUBLESHOOTING Steam Wand Drip at the Steam Wand Tip: o Steam valve seal is worn. Replace by installing steam valve rebuilt kit. o Steam valve is filled with milk residue. Disassemble steam valve and clean.   Wand is Hard to Move or Sticky: o Remove wand at the nut, clean and lubricate moving parts with food grade grease  ...
  • Page 62 All machines made in 2008 and after have this dual inlet system as a standard feature. Retrofit kits are available, check with your dealer, service provider, or the Synesso™ factory for more infor- mation about this upgrade.
  • Page 63 Machines made after #240 use a thinner, longer gauge tube which eliminates flutter. If your machine is made before #240 and this issue becomes unacceptable, contact your dealer, service pro- vider, or the Synesso™ factory to purchase a retrofit tube. Brew Tem- Readout for Brew ●...
  • Page 64 There are ways to make this work if it is absolutely necessary to have a very hot steam tank. Contact Synesso™ for more info. Sudden loss of ● Too much hot water has been used for Tea, Americano, rinsing, or  ...
  • Page 65   boost pump to provide the pressure needed to fill the steam tank. Contact your dealer, service provider, or the Synesso™ factory for more informa- tion regarding static tank installations. ● Machine is not level. Check to make sure the surface that holds the ma-  ...
  • Page 66   Only Hot Water ● Check that the mix valve is not fully closed. A fully closed mix valve will   Flows when Switch only allow steaming water out to the hot water tap. is On ● If the mix valve is open a full turn and a half and the water flow is still  ...
  • Page 67 ● If the steam wand constantly drips warm water and is warm to the touch     even after an extended time without use, the valve will require a new seal. Obtain and install a steam valve rebuild kit from your dealer, service representative, or the Synesso™ factory.    ...
  • Page 68 Remove the side panels and facias until the source of the leak is determined. Contact your dealer, service representative, or the Synesso™ factory for more info on fixing your specific leak. Vacuum Breaker ● Normal for the VB to sputter until the steam tank is near full pressure.
