Synesso Espresso Machine Technical Manual page 40

This programming manual applies to all Synesso machines after serial number 203111051.

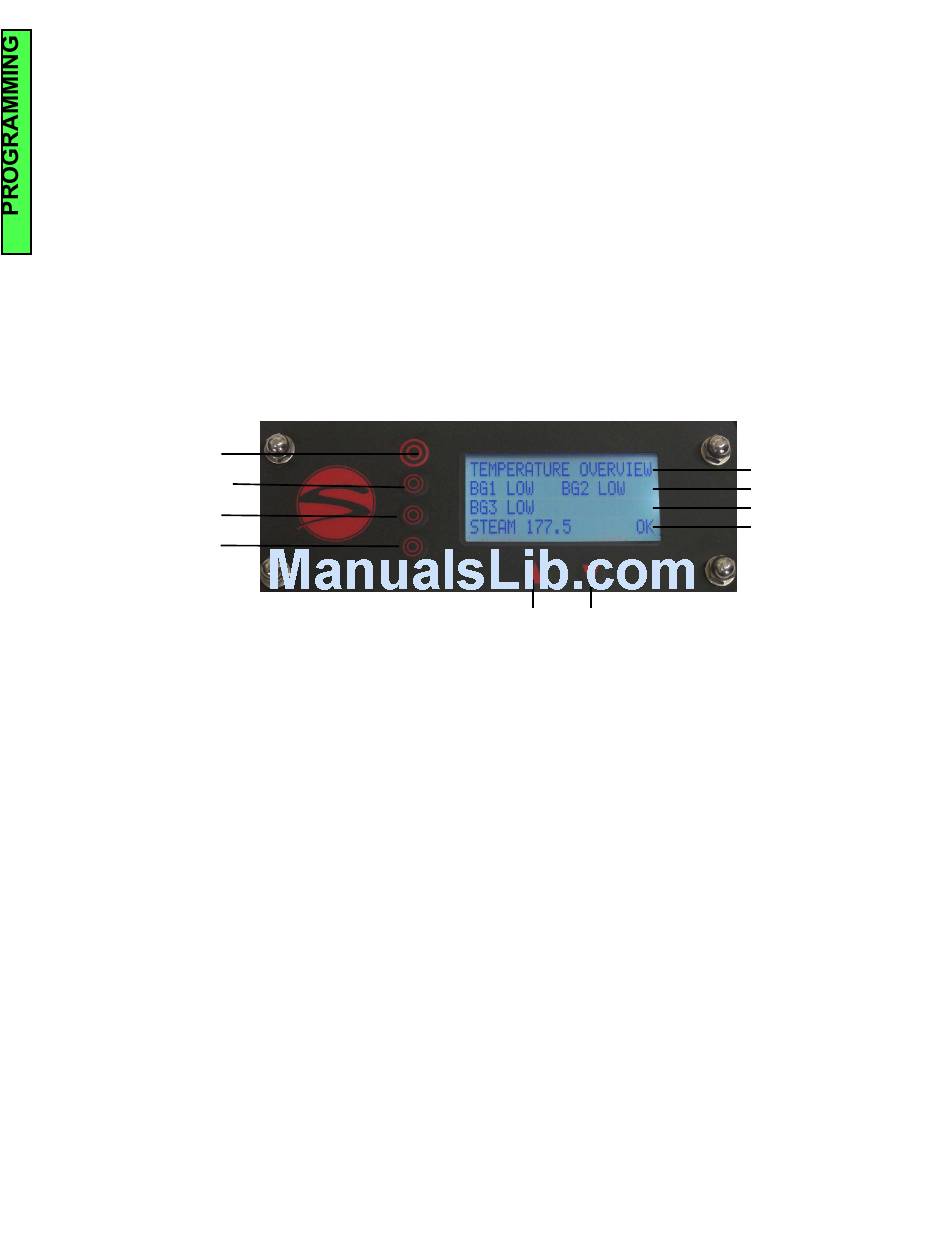

These machines have a hand held (wired) keypad, pictured below, to allow the user to comfortably
view and change the machine settings. The machine must be on and at operating temperature to
adjust the settings. There are 3 menu levels accessible to technicians. Menu level 2 may only be
reached from level 1 and level 3 may only be reached from level 2.
In order to access menu level 2 - start on the 'Temperature Overview' screen. Press and hold both
the line 4 button and up arrow, for approximately 4 seconds. The screen will cycle to the 'Temperature
Display' screen. This is screen 1 of menu level 2.
To reach menu level 3, On the 'Return to Operation Mode' screen of menu level 2, press and hold
both the line 4 button and the up arrow at the same time. The screen will cycle to the 'Volumetrics'
screen which is screen 1 of level 3.
Press to move forward to
the next screen
Press to select this line
Press to select this line
Press to select this line
Line 1 indicates the screen title, in this case Temperature Overview.
Line 2 indicates the operable brew group(s) and the associated temperature(s).
Line 3 indicates the operations of brew groups 3 and 4, if applicable.
Line 4 indicates the steam tank temperature to the left and error codes (if any) to the right.
On Line 2 of this Temperature Overview display screen, brew group 1, represented as BG1, is
reading 'LOW'. This indicates that BG1 is below the temperature probe's set range of measurement
(170F-270F / 76.6C-132.2C). If the BG1 heating element is on (element breaker in the left position)
for longer than 15 minutes, and the indicator continues to read 'LOW', refer to the error indicator on
line 4. Check Error Log Codes on page 26 if needed.
The lowest programmable temperature is 180F (82.2C) and the highest programmable temperature
is 220F (104.4C). The factory set temperature is 203F (95C). To change brew groups' factory set
temperatures, refer to page 21.
The steam tank reading on line 4 will normally read the factory default setting of 250F(121.1C). To
change this temperature, see page 23.
The [OK] on the right hand side of line 4 is indicating that there are no errors being detected by the
control system. If, in place of the [OK] you find an error code (EX: AABB##), refer to the Error Log
codes on page 26.
To cycle to the next display screen in the menu level, the 'BG 1 Temperature Control' screen in this
case, press the button to the left of line 1.
