Synesso Espresso Machine Technical Manual page 25

ELECTRICAL BOX:

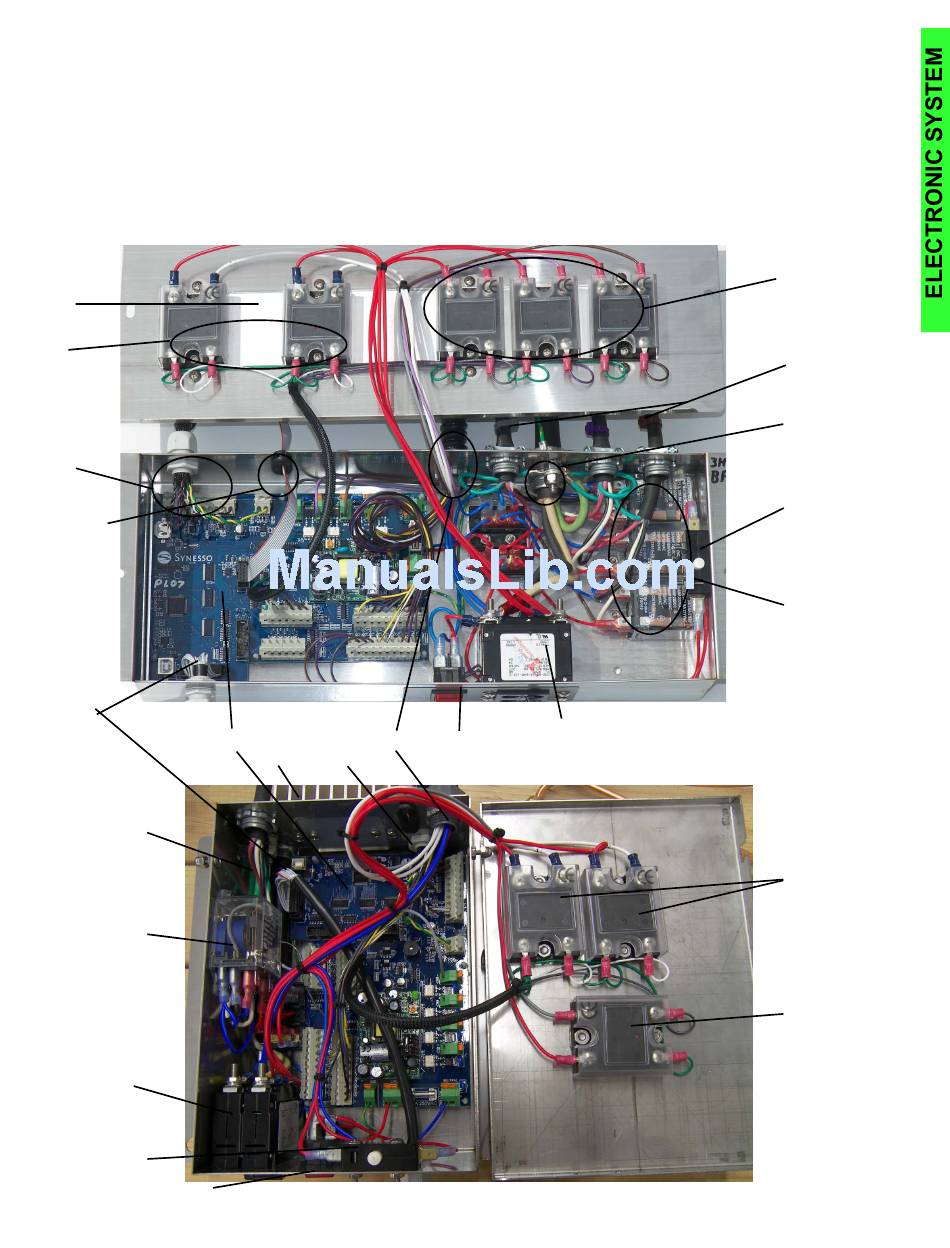

The electronics box, located underneath the machine, contains all the incoming and
outgoing power to the Synesso™. Since the 2 boxes represented below (top: 3 group
box, bottom 1 group) have many of the same components, they have been labeled with
numbers for matching components and the descriptions follow in the next pages.
14 top
of lid
13
12
11
10
3
5
6
4
7
Technical Manual
3 Group Hydra Electrical Box
9 8
14
12
1 Group Electrical Box
6
7
25
1
2
3
4
5
13
1
