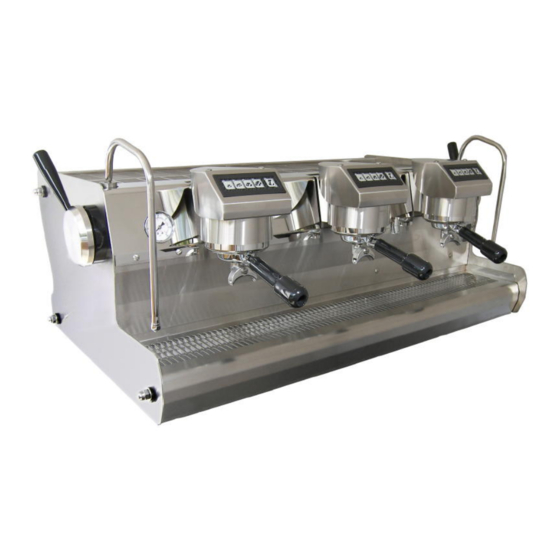

Synesso Sabre Owner's Manual

Espresso machines
Hide thumbs Also See for Sabre:
Table of Contents

Advertisement

Quick Links

See also: Technical Manual
Artistry
Ingenuity
Understanding
♦
♦
Owner's Manual
Sabre
Espresso Machines
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sabre and is the answer not in the manual?

Questions and answers

Related Manuals for Synesso Sabre

Summary of Contents for Synesso Sabre

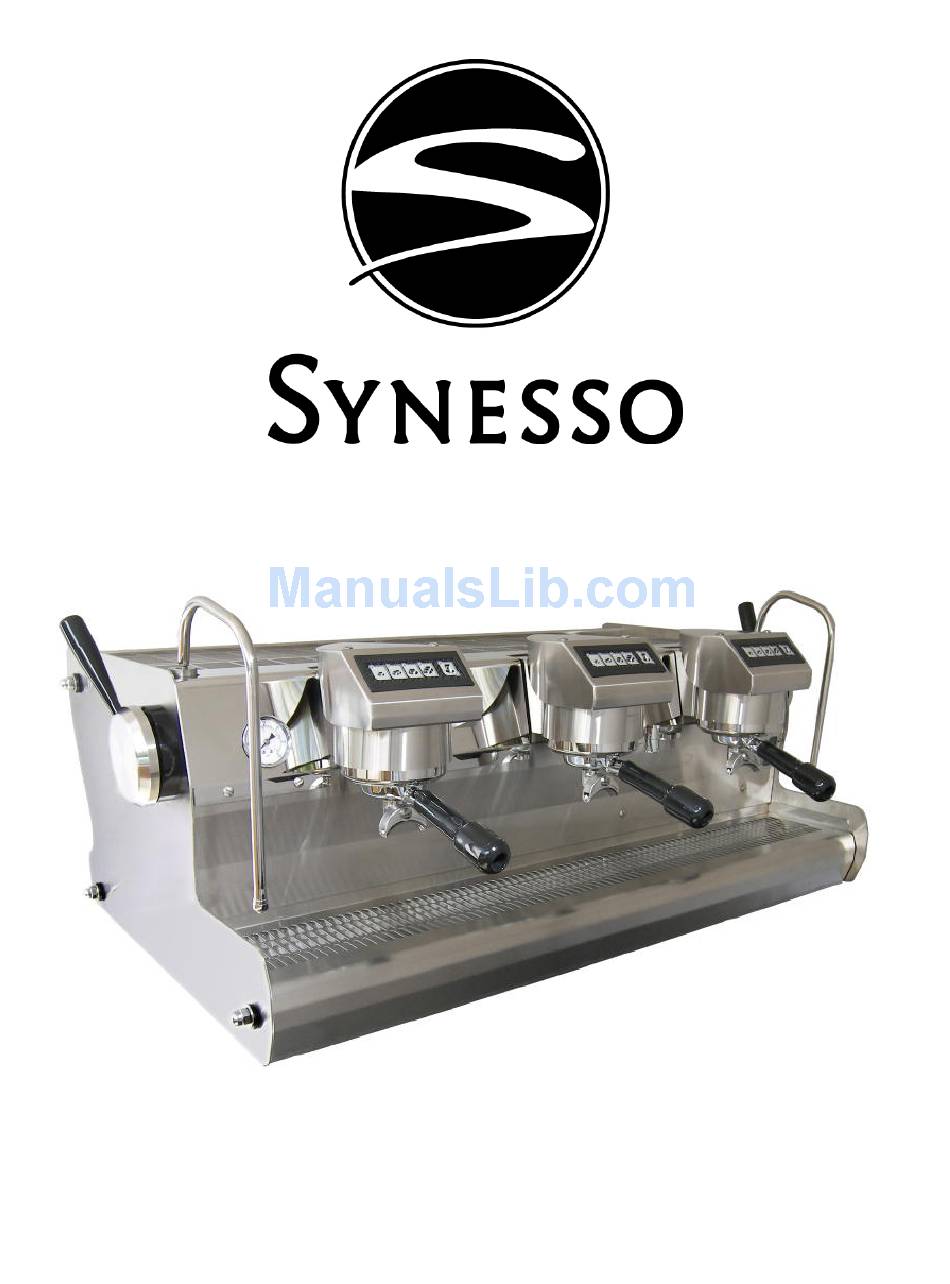

  • Page 1 Artistry Ingenuity Understanding ♦ ♦ Owner’s Manual Sabre Espresso Machines ™...

  • Page 2: Safety Warnings

    Safety Warnings IMPORTANT Information for the Sabre Espresso Machine Manufactured by Synesso, Inc. • DISCONNECT FROM ALL POWER SOURCES BEFORE SERVICING • Read the entire manual BEFORE operating this machine • Steam and condensation from the steam wand discharge is HOT and may cause burns •...

  • Page 3: Label Locations

    Green wire as earth (ground) Materials Information • All stainless steel that comes into contact with the water supply, used to fabricate Synesso espresso machines is 300 series • All brass fittings are low lead per the CA360 specifications or better •...

  • Page 4: Factory Information

    Congratulations on the purchase of your Sabre ™ espresso machine. , Sabre ™ ™ ™ Synesso , DigiZone are all Trademark names of Synesso, Inc Factory Information Please have your Serial Number available BEFORE calling for service or technical support.

  • Page 5: Installation Instructions

    Sabre ™ espresso machine. Site Preparation The Sabre must be placed on a level horizontal surface that can be easily cleaned and is capable of sustaining a minimum of 300 lbs. of weight. The surface depth should allow for a minimum clearance of 1” behind the Sabre and 3” in front.

  • Page 6: Installation Diagram

    INSTALLATION DIAGRAM Counter requirements * Easily cleanable * Sturdy, level and horizontal * Capable of sustaining weights up to 300 lbs. * 2.5" round hole drilled for hoses (see "Footprint" for hole location) * Clearance: 1" behind, 3" in front Water requirement Water from Mains...

  • Page 7: Plumbing Instructions

    (located on the right hand, bottom, rear corner). Run this hose to the floor drain or floor sink. NOTE: The Sabre requires a minimum of 35 PSI of line pressure to have the auto fill system for the steam tank function properly.
  • Page 8 • Counterclockwise to DECREASE pressure 9. Please allow at least ½ hour of “warm up” time before using your Sabre espresso machine to brew shots or steam milk. The steam gauge should read a minimum of 1.1 Bar. Unplugging EMC Compliant Machines...
  • Page 9 Sabre Volumetric Dosing Electronics Instructions 1A. Duo - Terminal Assignment & Diagram (2 Group) 1. 1st main voltage terminal. The phase is usually connected here (L1) 2. 2nd main voltage terminal. The neutral conductor is usually connected here (L2) 3. + Supply to all flowmeters (+) 4.
  • Page 10 1B. Quattro - Terminal Assignment & Diagram (3 Group) 1. 1st main voltage terminal. The phase is usually connected here (L1) 2. 2nd main voltage terminal. The neutral conductor is usually connected here (L2) 3. Earth to all flowmeters (-). 4.

  • Page 11: Maintenance

    3. Keypads The keypads (max. 2) of the Sabre Duo and (max 4) Quattro Electronics are connected to the control unit by only one cable (loop). As a result each keypad has its own address, programmable by a jumper.
  • Page 12 6.2 Programming the Pump Operation The Sabre Duo/Quattro Electronics control unit can also activate the pump when opening the main valve of the boiler to prevent the boiler from emptying if the pressure in the water circuit should become too low.

  • Page 13: Operation

    5. Switch the "Set / Operation" to the "Operation" position. 7.5 Setting the Hot Water Timer for Tea The Sabre Duo/Quattro Electronics can also proportion hot water for tea using a timer. This timer is set as follows: 1. Switch the "Set / Operation" to the "Set" position.
  • Page 14 Coffee grounds are too fine which prohibits water flow. • The flowmeter is blocked as a result of calcification and therefore no longer emits pulses. • The input of the flowmeter to the Sabre Duo/Quattro Electronics is interrupted. DigiZone Controls ™...
  • Page 15 Turn off the steam valve – locate the inline ball valve, turn stem clockwise with an adjustable wrench. Rebuild the steam valve – purchase the kit from Synesso and install it. Adjust hot water mix valve – turn handle clockwise to close valve completely, giving you steam tank water only, turn handle counterclockwise ¼...

  • Page 16: Espresso Brewing

    Espresso Brewing 1. The Sabre is supplied with both single and double portafilters. The single portafilter can only be used to brew a single shot of espresso. The double can be used to brew 1 double or 2 single shots of espresso.

  • Page 17: Cleaning And Maintenance

    8. Wipe off and purge the steam wand immediately after each use. 9. Sabre steam wands are made with a proprietary double walled process that helps to keep the outer wall cooler. The tip and the base of the wand can heat to very high temperatures and caution must be used.
  • Page 18 It is also important to keep dust and debris off of your pump motor – this will extend the life of the motor. Important: Machine service and repair procedures must be performed by authorized service personnel. Sabre Machine Specifications ™ Model...

  • Page 19: Warranty

    Synesso’s liability is limited to the purchase price of the product and shall not be held liable for damages that extend beyond the product itself. Synesso’s liability of consequential, incidental damages, indirect or direct damages for personal injury, inability to properly use this product, loss of business profits or interruption to business is expressly disclaimed.

  • Page 20: Section A - Reset Digizone™ Electronics

    DigiZone Control Reset & Reboot Guide ™ If your electronics are out of the parameters you set and you are unable to make any adjustments, follow these steps to reset the electronics. Section A – Reset DigiZone™ Electronics 1. Turn the red on/off power switch OFF, then back ON 2.
