INSTALLING WALL MOUNT (cont.)

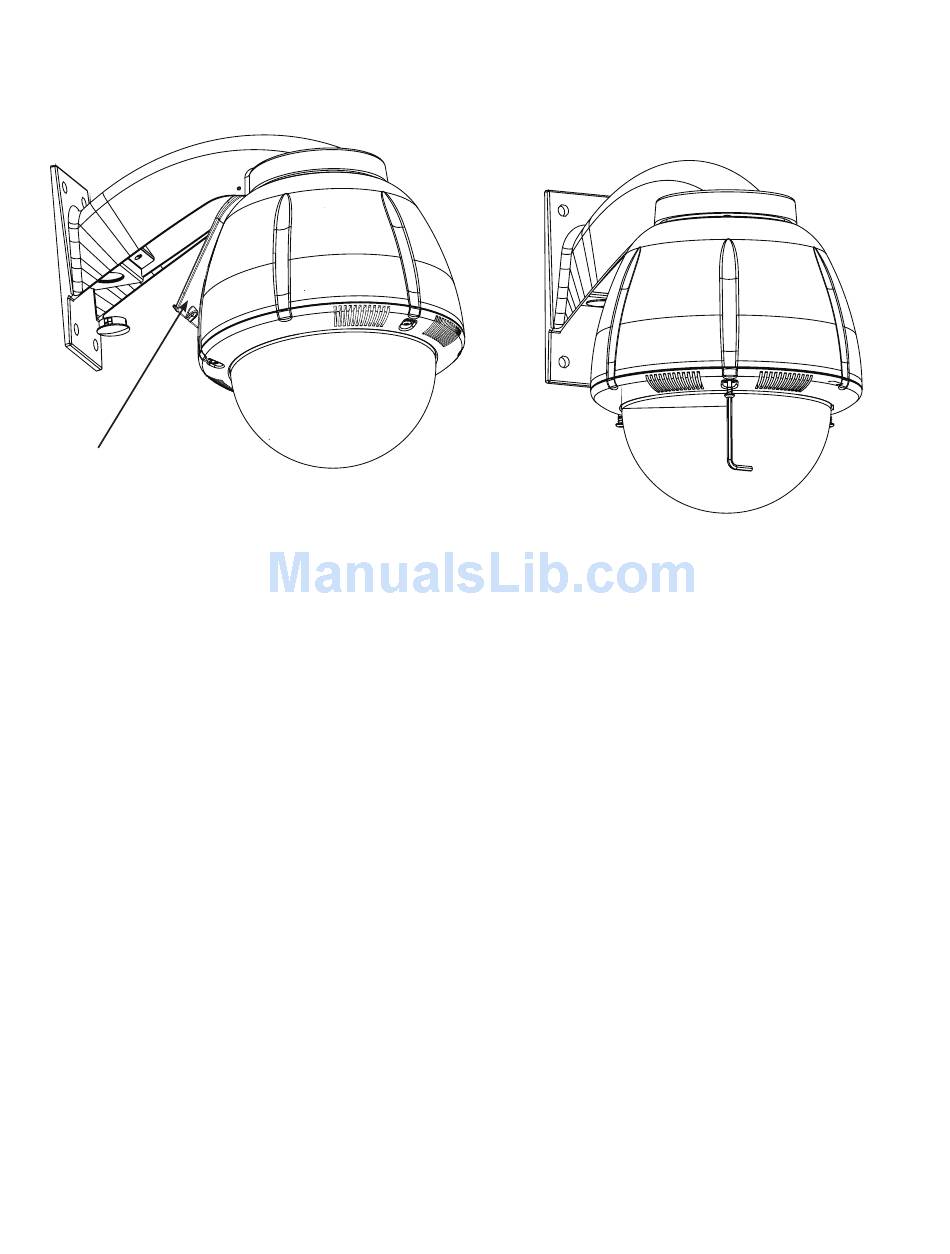

3. Open the access door on the bottom of the wall mount
by loosening the screw nearest the mounting plate.
Access panel
4. Attach the wires from the wall to the connector provided.
using the wiring color code chart as a guide.
5. Once all wiring connections are made, place the wires
inside the wall mount bracket and close the access door.
Secure with the screw removed earlier.
CONNECTING THE TRIM RING ASSEMBLY TO THE
HOUSING TOP:
1. Open the access door on the bottom of the wall mount by
loosening the screw nearest the mounting plate.
Remove dome by twisting counterclockwise
until it stops, then pull down
2. To attach trim ring align pins with keyhole slots and turn
clockwise about ½" (12mm). Secure (3) screw or use (3)
security screws and security tool provided.
CARE AND CLEANING OF DOMES:
All RHW75 and RHP75 units include an optically clear
polycarbonate dome. The dome is an optical device and
should be handled with extreme care. Leave protective film
on dome until product is fully assembled and installed. Even
though the dome is virtually unbreakable, it can be easily
scratched.
Clean only with a clean cotton cloth and warm water.
DO NOT use a strong solvent or cleanser!
-  -
