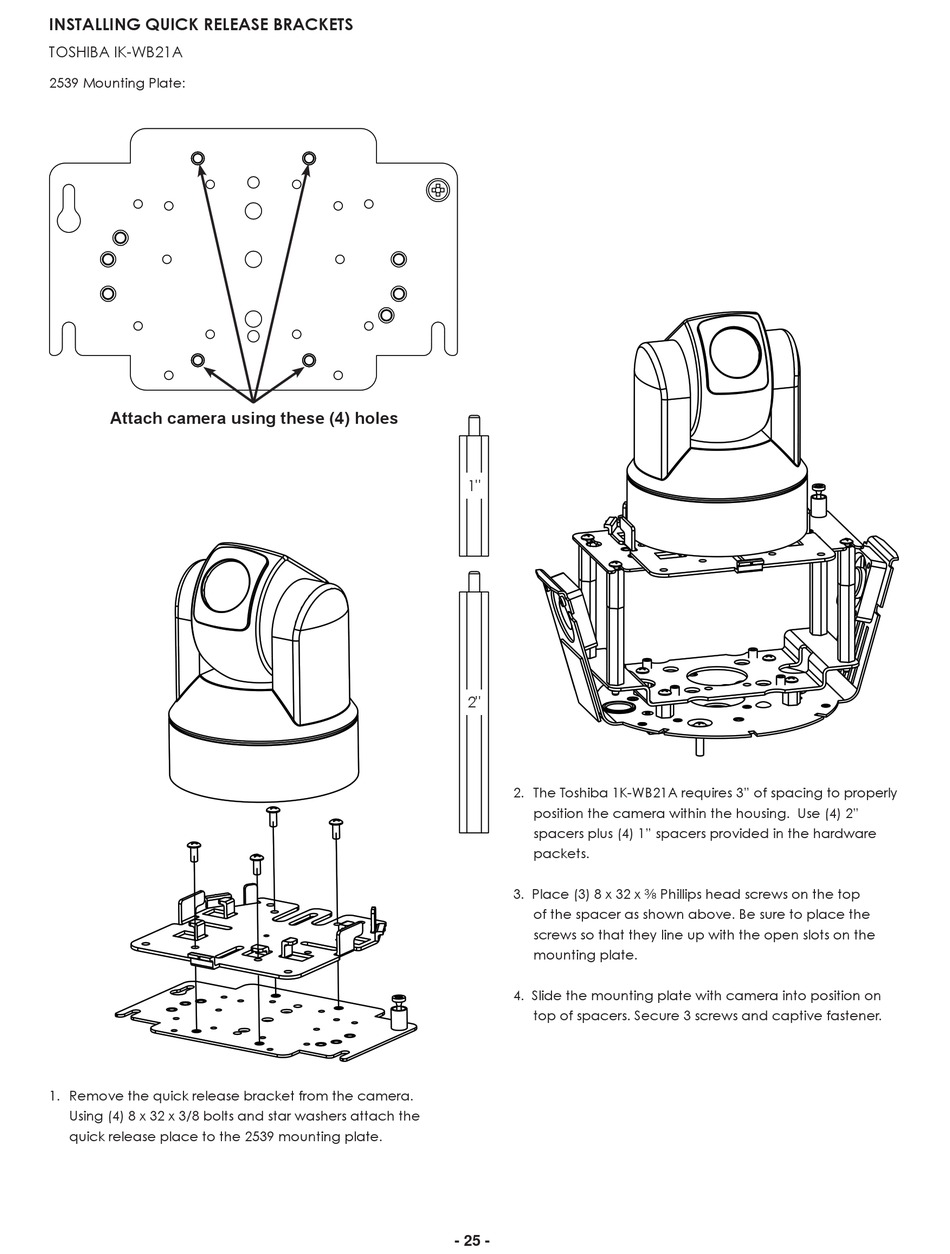

INSTALLING QUICK RELEASE BRACKETS

TOSHIBA IK-WB21A

2539 Mounting Plate:

Attach camera using these (4) holes

1. Remove the quick release bracket from the camera.

Using (4) 8 x 32 x 3/8 bolts and star washers attach the

quick release place to the 2539 mounting plate.

2. The Toshiba 1K-WB21A requires 3" of spacing to properly

position the camera within the housing. Use (4) 2"

spacers plus (4) 1" spacers provided in the hardware

packets.

3. Place (3) 8 x 32 x s Phillips head screws on the top

of the spacer as shown above. Be sure to place the

screws so that they line up with the open slots on the

mounting plate.

4. Slide the mounting plate with camera into position on

top of spacers. Secure 3 screws and captive fastener.

- -
