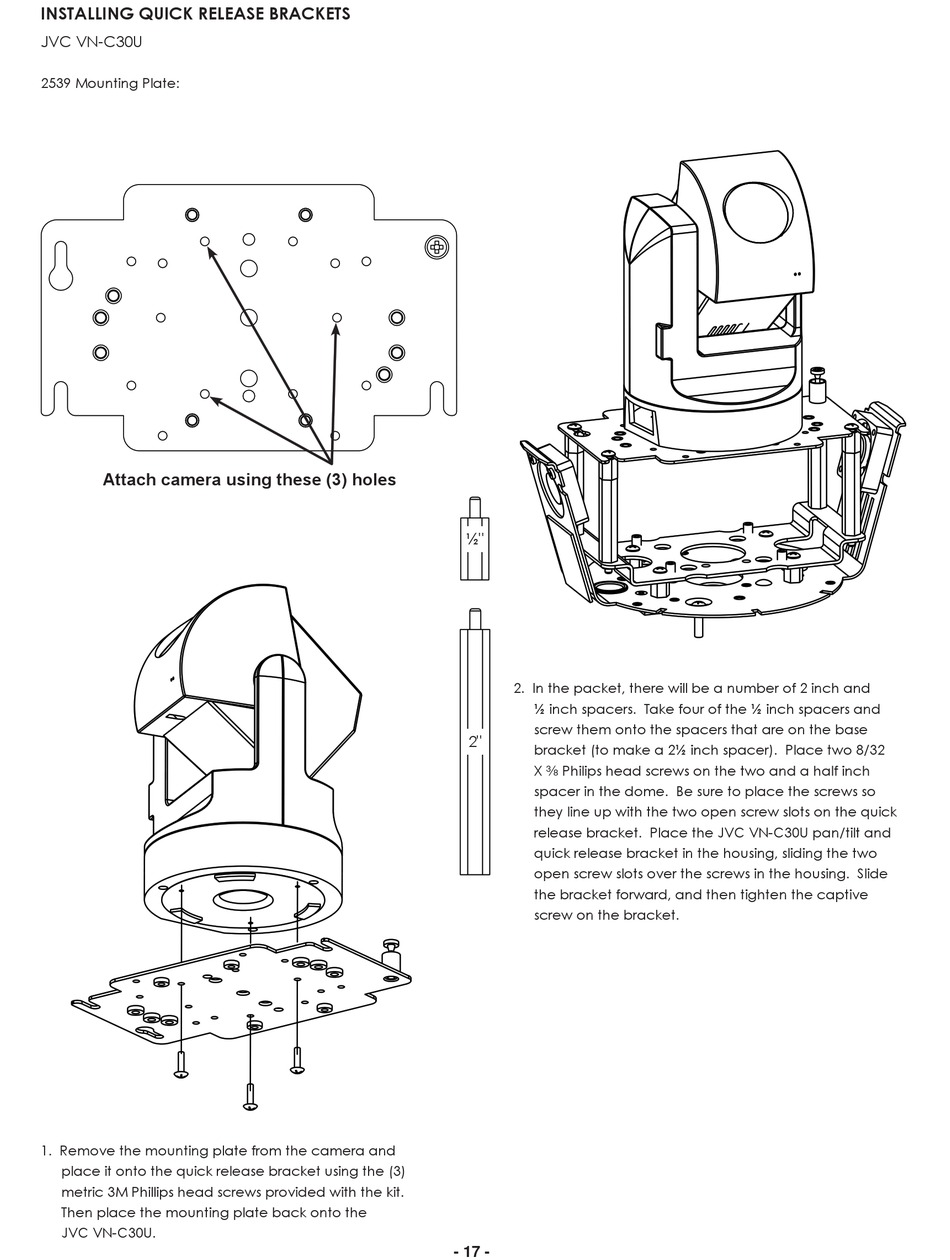

INSTALLING QUICK RELEASE BRACKETS

JVC VN-C30U

2539 Mounting Plate:

Attach camera using these (3) holes

1. Remove the mounting plate from the camera and

place it onto the quick release bracket using the (3)

metric 3M Phillips head screws provided with the kit.

Then place the mounting plate back onto the

JVC VN-C30U.

½"

2. In the packet, there will be a number of 2 inch and

½ inch spacers. Take four of the ½ inch spacers and

screw them onto the spacers that are on the base

bracket (to make a 2½ inch spacer). Place two 8/32

X s Philips head screws on the two and a half inch

spacer in the dome. Be sure to place the screws so

they line up with the two open screw slots on the quick

release bracket. Place the JVC VN-C30U pan/tilt and

quick release bracket in the housing, sliding the two

open screw slots over the screws in the housing. Slide

the bracket forward, and then tighten the captive

screw on the bracket.

- -
