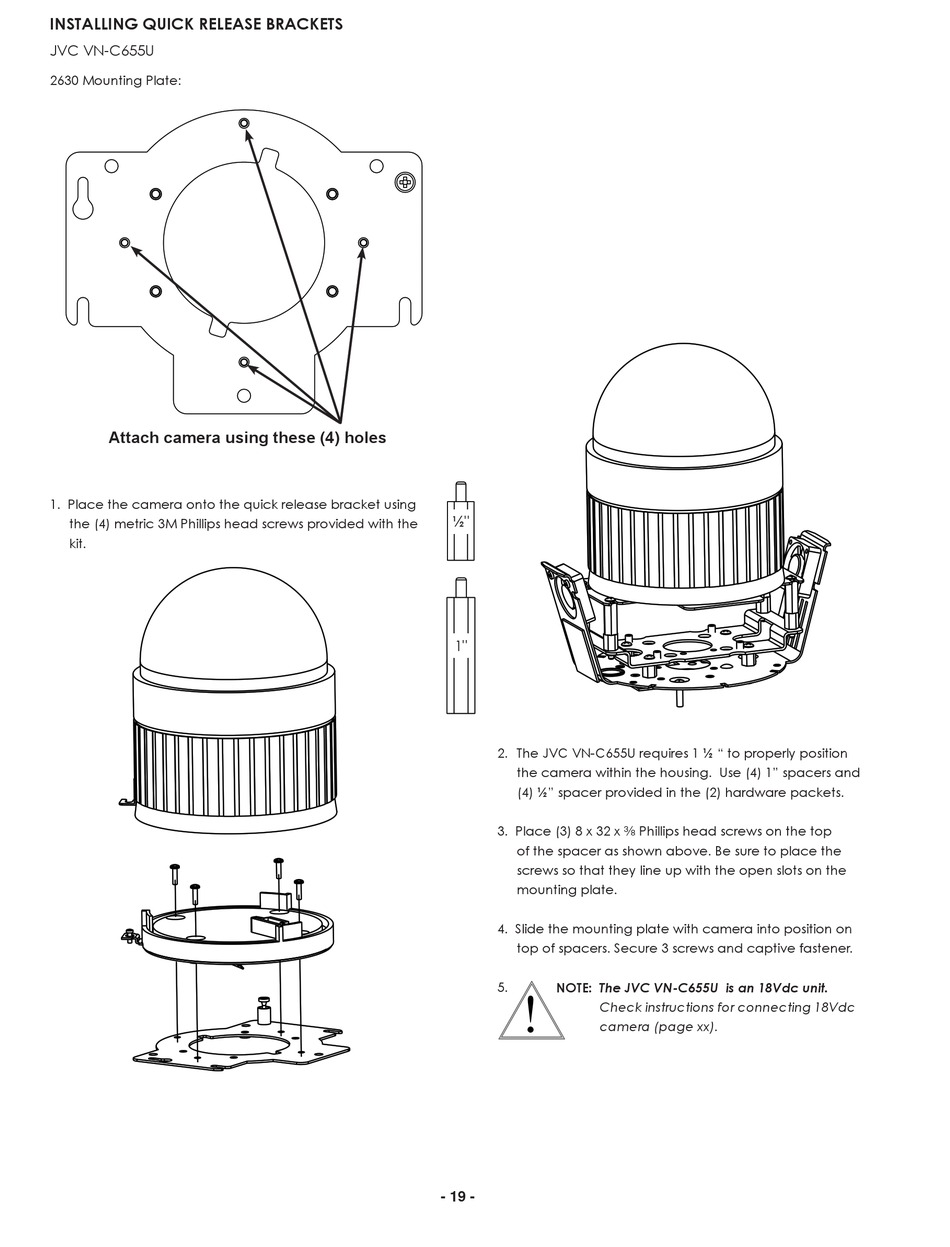

INSTALLING QUICK RELEASE BRACKETS

JVC VN-C655U

2630 Mounting Plate:
Attach camera using these (4) holes
1. Place the camera onto the quick release bracket using
the (4) metric 3M Phillips head screws provided with the
kit.
½"
1"
2. The JVC VN-C655U requires 1 ½ " to properly position
the camera within the housing. Use (4) 1" spacers and
(4) ½" spacer provided in the (2) hardware packets.
3. Place (3) 8 x 32 x s Phillips head screws on the top
of the spacer as shown above. Be sure to place the
screws so that they line up with the open slots on the
mounting plate.
4. Slide the mounting plate with camera into position on
top of spacers. Secure 3 screws and captive fastener.
5.
NOTE: The JVC VN-C655U is an 18Vdc unit.
!
Check instructions for connecting 18Vdc
camera (page xx).
-  -
