P 1 6 0 0
CCTV Standard Steel Pole
www.videolarm.com
Installation and Operation Instructions for the following model:
P1600

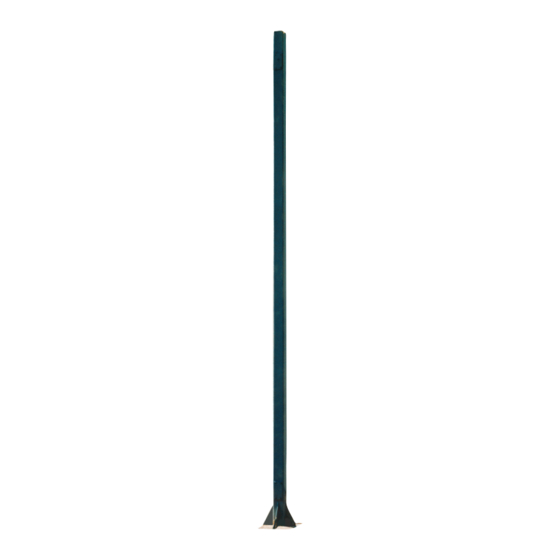

Standard 16' Steel Pole
81-IN5229
Before attempting to connect or operate this product, please read these instructions completely.
01-23-2012
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm P1600
Summary of Contents for Moog Videolarm P1600
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved P 1 6 0 0 CCTV Standard Steel Pole www.videolarm.com Installation and Operation Instructions for the following model: P1600 Standard 16’ Steel Pole 81-IN5229 Before attempting to connect or operate this product, please read these instructions completely. 01-23-2012...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Terms And Conditions
If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. - Page 4 Part 1: Site Preparation Part 1: Site Preparation Figure 1 1. Select a suitable site for the P1600 and prepare the pad site NOTE: Special attention must be paid to the size of using a hole 36" x 36" x 36" deep. The top of the concrete the wiring conduit and its location within the foundation should be fl...
- Page 5 Part 1: Site Preparation Part 1: Site Preparation Figure 4 Figure 3 FOR ANCHOR BOLT INSTALLATIONS: Prepare the concrete per manufacturer's directions. Pour concrete per manufacrurer’s directions. See Figure 3 for dimensions The concrete must have a compressive strength of of the bolt pattern and suspend appropriate bolts in the concrete around 3000 psi, and must be fabricated following ACI318-89 the wiring conduit.
- Page 6 Part 2: Installation Part 2: Installation Figure 7 Figure 8 5. Slowly lift the pole into the upright position, aligning the holes of the Base Plate with the Bolts in the concrete pad (Figure 7). 6. Secure the pole to the pad with fasteners (Figure 8). CAUTION: Pull all slack in the wiring as Lock Washer...
- Page 7 Jig Assembly Jig Assembly Figure 3 Figure 2 2. Place the short end of each Bolt into the outside holes of the 3. Turn the Anchor Jig over and place Single Straps over the Bolts Cross Strap. Place Hex Nuts onto each Bolt and fi nger tighten (Figure 3).
- Page 8 Jig Assembly Jig Assembly Figure 6 Figure 7 With Leveling Nuts 6. If, due to conditions or other requirements, leveling nuts are NOTE: The Flat Washers, Lock Washers , and remaining Hex Nuts needed, adjustments will have to be made to the Anchor Jig . will be used to fasten the pole to the Anchor Jig.
- Page 9 Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
