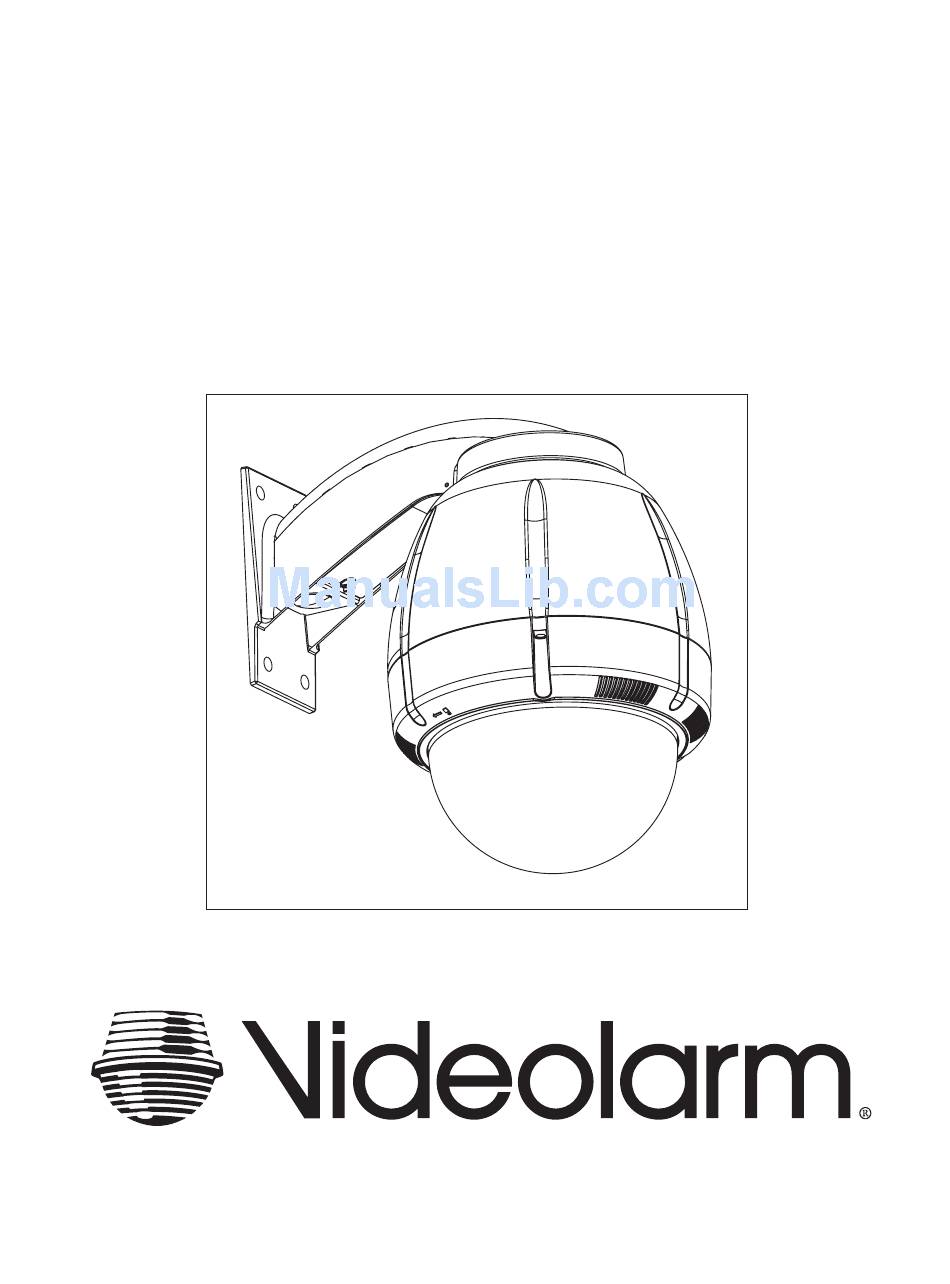

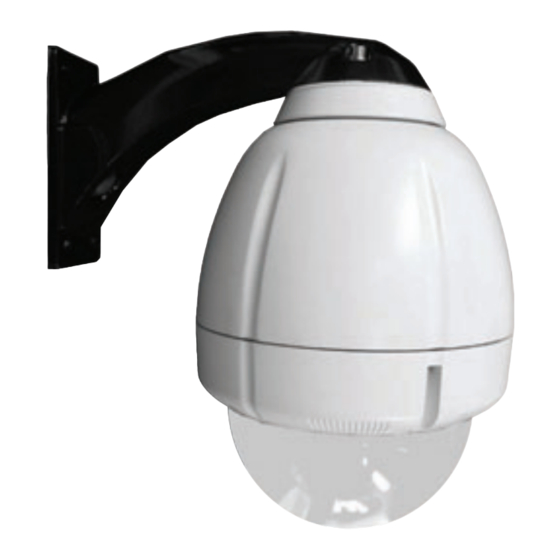

  • Page 1 Product Instructions IP Ready Rugged Housing Series ™ RHW75C2N & RHP75C2N Before attempting to connect or operate this product, please read these instructions completely. 81-IN5309 04/21/06 -  -...
  • Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS 1. Read Instructions - All the safety and operating instructions should be read before the unit is operated. CAUTION 2. Retain Instructions - The safety and operating instructions RISK OF should be retained for future reference. ELECTRIC SHOCK! 3.
  • Page 3 RHW75CN2, RHP75CN2 IP Ready Network Housing IP Ready Network Housing with 24Vac input, wall mount or pendant mounting, heater & blowers, ready for standard IP PTZ cameras. Includes 120 to 24Vac, 40Va transformer. ELECTRICAL SPECIFICATIONS (OUTDOOR ONLY): Power 24Vac, Class 2 Only Total Power: 52 watts Accessories (Heater/Blower): 26 watts Heater: 25 watts...

  • Page 4: Table Of Contents

    INSTALLATION OF PTZ CAMERA See model for specific instruction. Listed on the following pages are the specific instructions for each of the individual network cameras. See specific instruction for the model that matches the unit you have. INDEX OF CAMERAS AXIS 213 AXIS 214 AXIS 231D/232D...

  • Page 5: Axis 213

    INSTALLING QUICK RELEASE BRACKETS AXIS 213 2539 Mounting Plate: Attach camera using these (2) holes ½" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 6: Axis 214

    INSTALLING QUICK RELEASE BRACKETS AXIS 214 2685 Mounting Plate: Attach camera using these (3) holes 2" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 7: Axis 231D/232D

    INSTALLING QUICK RELEASE BRACKETS AXIS 231D/232D 2685 Mounting Plate: Loosen screw Attach camera using these (3) holes 3. Position the locking pins and locking screw over the key hole slots and twist clockwise. Secure locking screw. Keyhole slot (3) Locking screw 4.
  • Page 8 Installing the Axis 231D/232D Camera (cont.) 7. Housing with 2685 mounting plate installed. 10. Locate the connector block, which is included 8. Since the 231D/232D camera operates on 24Vac, the power with the camera. Then board that is located inside the housing is not needed. The locate the connector remove the power board, start by loosening the screws block bracket, which...
  • Page 9 Installing the Axis 231D/232D Camera (cont.) 13. To manage the input cable running from the connector block to the camera use the (2) cable tie mounts and cable ties that are located in the housing packet. Cable Tie Mounts 12. Make wiring connections to connector block assembly per camera instructions.

  • Page 10: Canon Vb-C10R

    INSTALLING QUICK RELEASE BRACKETS CANON VB-C10R 2539 Mounting Plate: Attach camera using these (2) holes ½" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 11: Canon Vb-C50Ir

    INSTALLING QUICK RELEASE BRACKETS CANON VB-C50iR 2539 Mounting Plate: Attach camera using these (2) holes ½" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 12: Canon Vc-C4R / Vc-C50Ir

    INSTALLING QUICK RELEASE BRACKETS CANON VC-C4R / VC-C50iR 2539 Mounting Plate: Attach camera using these (2) holes 1" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 13: Elmo Ptc-200C

    INSTALLING QUICK RELEASE BRACKETS ELMO PTC-200C Mounting plate for this unit is included in the housing packet. Remove existing mounting plate installed in the unit before proceeding. 2539 Mounting Plate: Attach camera using these (4) holes ½" 1" 2. The Elmo PTC-200C camera requires 3.5" of spacing for optimal position within the housing.

  • Page 14: Elmo Ptc-201

    INSTALLING QUICK RELEASE BRACKETS ELMO PTC-201 Mounting plate for this unit is included in the housing packet. Remove existing mounting plate installed in the unit before proceeding. 2539 Mounting Plate: Attach camera using these (4) holes ½" 2. The Elmo PTC-201 camera requires 2½" of spacing for optimal position within the housing.

  • Page 15: Elmo Ptc-400C

    INSTALLING QUICK RELEASE BRACKETS ELMO PTC-400C Mounting plate for this unit is included in the housing packet. Remove existing mounting plate installed in the unit before proceeding. 2539 Mounting Plate: Attach camera using these (4) holes ½" 1" 2. The Elmo PTC-400C camera requires 3.5" of spacing for optimal position within the housing.

  • Page 16: Elmo Ptc-401

    INSTALLING QUICK RELEASE BRACKETS ELMO PTC-401 Mounting plate for this unit is included in the housing packet. Remove existing mounting plate installed in the unit before proceeding. 2539 Mounting Plate: Attach camera using these (4) holes 1" 2. In the packet, there will be a number of 2 inch and 1 inch spacers.

  • Page 17: Jvc Vn-C30U

    INSTALLING QUICK RELEASE BRACKETS JVC VN-C30U 2539 Mounting Plate: Attach camera using these (3) holes ½" 2. In the packet, there will be a number of 2 inch and ½ inch spacers. Take four of the ½ inch spacers and screw them onto the spacers that are on the base 2"...

  • Page 18: Jvc Vn-C625U / Tk-625U

    INSTALLING QUICK RELEASE BRACKETS JVC VN-C625U / TK-625U 1" 1" 3. The JVC VN-C625U / TK-625U requires a total of 2” of spacing to properly position the camera within the housing. 1. Remove plastic cover (1 screw). 4. Attach (4) 1” spacers to the 2630 mounting plate in the position shown.

  • Page 19: Jvc Vn-C655U

    INSTALLING QUICK RELEASE BRACKETS JVC VN-C655U 2630 Mounting Plate: Attach camera using these (4) holes 1. Place the camera onto the quick release bracket using ½" the (4) metric 3M Phillips head screws provided with the kit. 1" 2. The JVC VN-C655U requires 1 ½ “ to properly position the camera within the housing.

  • Page 20: Panasonic Bb-Hcm381 / Kx-Hmc280

    INSTALLING QUICK RELEASE BRACKETS PANASONIC BB-HCM381 / KX-HMC280 2539 Mounting Plate: Attach camera using this hole ½" 1" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.
  • Page 21 INSTALLING QUICK RELEASE BRACKETS PANASONIC WV-NS202 2539 Mounting Plate: Attach camera using this hole 1" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 22: Pixord 261 / 262

    INSTALLING QUICK RELEASE BRACKETS PIXORD 261 / 262 2630 Mounting Plate: Attach camera using these (3) holes ½" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 23: Sony Sncrz25

    INSTALLING QUICK RELEASE BRACKETS SONY SNCRZ25 2539 Mounting Plate: Attach camera using these (3) holes 1" 2. The SNCRZ25 require 1” of spacing to properly position the camera in the housing. Use (4) 1” spacers provided in the hardware packet. 3.

  • Page 24: Sony Sncrz30

    INSTALLING QUICK RELEASE BRACKETS SONY SNCRZ30 2539 Mounting Plate: Attach camera using this hole 2" 2. The SNCRZ30 require 2” of spacing to properly position the camera within the housing. Use (4) 2” spacers provided in the hardware packets. 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above.

  • Page 25: Sony Sncrz50

    INSTALLING QUICK RELEASE BRACKETS SONY SNCRZ50 2539 Mounting Plate: Attach camera using this hole ½" 2" 2. The SONY SNCRZ50 require 2 ½ ” of spacing to properly position the camera within the housing. Use (4) 2” spacers plus (4) ½ “ spacers provided in the hardware packet.

  • Page 26: Toshiba Ik-Wb21A

    INSTALLING QUICK RELEASE BRACKETS TOSHIBA IK-WB21A 2539 Mounting Plate: Attach camera using these (4) holes 1" 2" 2. The Toshiba 1K-WB21A requires 3” of spacing to properly position the camera within the housing. Use (4) 2” spacers plus (4) 1” spacers provided in the hardware packets.
  • Page 27 WIRING to Camera - 12VDC CAMERA UNITS WIRING to Camera - 24VAC CAMERA UNITS Inside of Housing Inside of Housing 1. The internal power supply provides 12Vdc power. 1. For 24Vac units, the power board that is located in the base of the unit is not needed.
  • Page 28 WIRING INSTRUCTIONS (OUTSIDE OF HOUSING) If you wish to provide a single power transformer it is recommended that: RJ45 1. Be certain that you know the total power consumption of the housing Heater (25 watts) + Blower (1 watt) + camera pan/tilt (25 watts).
  • Page 29 INSTALLING THE HOUSING ASSEMBLY: Be sure the bracket is properly and securely mounted to a supporting structure capable of rigidly holding the weight of the entire unit. NOTE: This unit is designed for operation in an 3. Mount the housing assembly to the mounting bracket upright position.
  • Page 30 INSTALLING WALL MOUNT (cont.) CONNECTING THE TRIM RING ASSEMBLY TO THE HOUSING TOP: 3. Open the access door on the bottom of the wall mount by loosening the screw nearest the mounting plate. 1. Open the access door on the bottom of the wall mount by loosening the screw nearest the mounting plate.
  • Page 31 Exploded View for Replacement Parts - 0 -...
  • Page 32 Replacement Parts List Part Number Description RPRH7502 LOWER TRIM RING RPRH7503 DOME CLAMPING BRACKET RC7T TINTED REPLACEMENT CAPSULE RC7C CLEAR REPLACEMENT CAPSULE RPFD072 24 VAC HEATER RPFD080 (12 VDC) BLOWER (USED IN 24V HOUSINGS) RPRH707 (MODEL RH7NHB) CONNECTION PCB (NETWORK MODELS) RPFD060 CAMERA BRACKET RPFD040...
  • Page 33 Mounting Template R .733 2.132 5.500 1.537 2.981 2.000 3.250 -  -...
