DESCRIPTION:
MR5CS-9 is Recessed Drop Ceiling Housing with Videolarm
S-view pan/tilt. Upper housing is constructed of 20 and 18
gauge steel, while the lower dome is formed from optically
clear polycarbonate (1 F-stop light reduction for tinted lower
dome). The housing can be installed in its entirety from
below the ceiling. The steel top measures 5.5" (h) x 7.5"
(d). The lower dome will be held in place by a white plastic
trim ring. The MR5CS-9 is designed to be installed in either
sheetrock or drop ceilings. The (2) spring clips allow for
adjustment to the ceiling material thickness.
Add wire
supports
around clips
in drop ceiling
applications
5363
MR5CS-9
1
2
1
2
3
3
4
6
7
REVISION DATE:
02-03-2009
© 2009, Videolarm, Inc. All Rights Reserved
PRODUCT INSTRUCTIONS
HOUSING INSTALLATION:
1. Carefully remove all equipment from the box.
2. Cut a 7.75" diameter hole in the ceiling in the desired
location.
3. Twist the trim ring and remove it from the housing.
4. Run power and video/control connections through the
opening on the side of the housing (Figure 1).

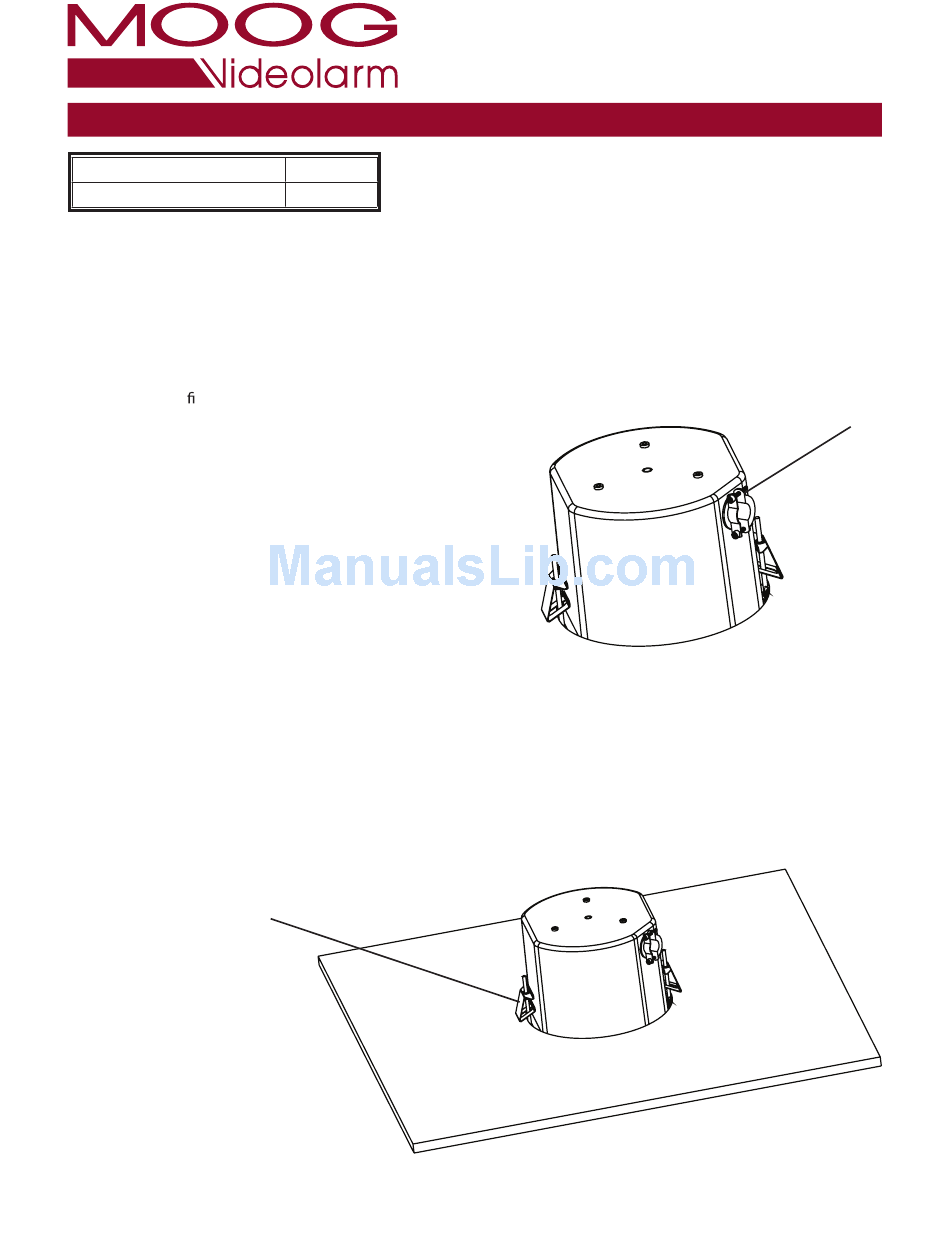

Figure 1
Figure 2
Wiring access
hole
