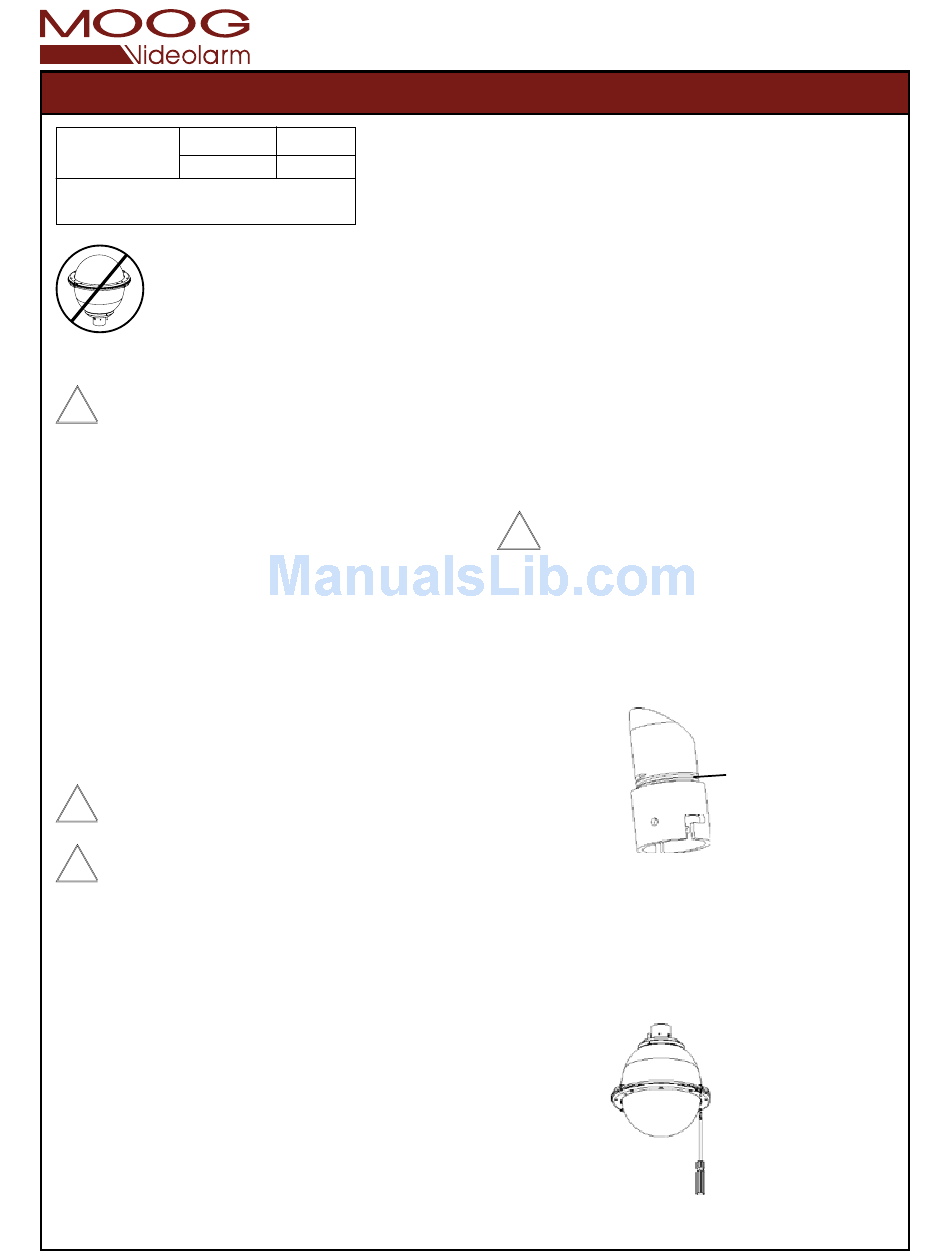

Moog Videolarm PFDW75TF2N Product Instructions

Specification Catalog
Number
INSTRUCTIONS 5215
MODEL: Outdoor Dome Housings
PFD8C2/PFD8C2A
notE: This unit is designed for operation in an
upright position. Installing the Fusionome™
upside down may cause damage to the
internal equipment, and will void the war-
ranty.
ELEctrIcAL sPEcIFIcAtIons:
!
Power 24 VAC, Class 2 Only
52 watts at 24 VAC (accessories)
Heaters (2) at 25 Watts Each
Blowers (2) at .84 Watts each
Input Connectors:
(2) 4 position connectors
(1) BNC
IMPortAnt sAFEGuArds
notE: The PFD8C2 is a pressurized enclosure. As such,
certain care is required for the safe use of the product.
1. Inspect the enclosure upon opening the box. Make sure the
unit was not damaged during shipping. Immediately replace
domes that have been cracked or show any signs of damage.
2. Always use safety goggles when servicing the unit.
3. Never use an unregulated gas supply to pressurize the
!
enclosure. The valve should be regulated with a
maximum of 10 psi output.
!
4. PRESSURIZE USING AIR OR INERT GAS ONLY!
notE: Periodically examine the unit and the structure to
which it's attached. If any signs of wear are noticed,
replace immediately.
2525 Park central Blvd. • decatur, Ga 30035 • (770) 987-7550 • 800-554-1124 u.s. & canada • www.videolarm.com • Fax 800-826-0366
Section
1a
rEVIsIon dAtE: 11-09-2010
Product InstructIons
GEnErAL InstructIons:
Tools Required: .100" Flat Head Screwdriver
Phillips Head Screwdriver
7/16" socket
Preparing Mounting Brackets
1. Carefully remove the housing from the packaging material.
Check to be sure all parts are present.
2. The standard model is designed as a pendant mount housing.
A 1.5" NPT housing coupling is provided for use with a stan-
ard 1.5" (NPT) pipe. This housing can also be used with other
brackets designed with 1.5" male pipe threads, such as the
Videolarm WM20G and the WM20 wall mount brackets.
3. Install pendant pipe or wall mount bracket in the desired
location.
Be sure bracket is properly and securely mounted to a
!
supporting structure capable of rigidly holding the
weight of the entire unit.
4. Pipe threads should be clean and rust free. Although a
hermetic connector protects the inside of the enclosure from all
moisture, it is still recommended that a thread sealer be used
on the threads of the housing coupling. Attach the housing
coupling to the bracket or pendant pipe (Figure 1).
Figure 1
InstALLInG QuIcK rELEAsE BrAcKEt And PAn/tILt
cAMErA AssEMBLY
5. Open the housing by loosening the (9) captive screws
located on the housing ring next to the lower clear dome.
Be careful not to back these all the way out. Twist the dome
slightly in a counter clockwise motion to remove (Figure 2).
Figure 2
Add thread seal-
ing tape
Loosen screws only,
do not remove
Remove dome by
twisting counter-
clockwise
