© 2011, Moog Videolarm, Inc. All Rights Reserved
M R 7 N

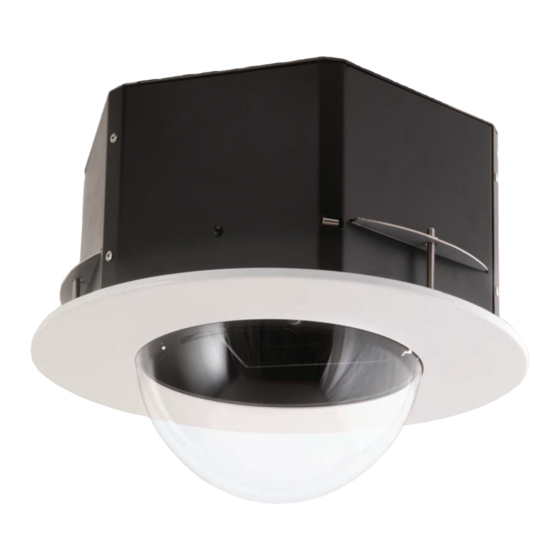

Indoor Recessed Ceiling Mount Dome Housing
Installation and Operation Instructions for the following models:
MR7CN
Indoor 7" Recessed Ceiling housing, with network camera adapter brackets,
clear dome
MR7TN
Indoor 7" Recessed Ceiling housing, with Network camera adapter brackets,
tinted dome
Before attempting to connect or operate this product, please read these instructions completely.
To be used with the 81-IN5481 Instruction Manual.
www.videolarm.com
W81-IN5323
01-13-2012
Advertisement
Table of Contents
Related Manuals for Moog Videolarm MR7N
Summary of Contents for Moog Videolarm MR7N
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved M R 7 N Indoor Recessed Ceiling Mount Dome Housing www.videolarm.com Installation and Operation Instructions for the following models: MR7CN Indoor 7” Recessed Ceiling housing, with network camera adapter brackets, clear dome MR7TN Indoor 7” Recessed Ceiling housing, with Network camera adapter brackets, tinted dome W81-IN5323 Before attempting to connect or operate this product, please read these instructions completely. To be used with the 81-IN5481 Instruction Manual. 01-13-2012...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). - Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
-
Page 4: Electrical Specifications
Electrical Specifications Content of Box MR7TN No power options provided. Power required for camera only. Power 24VAC Class 2 Power Supply Only English Tools Required: Phillips Head Screwdriver Ceiling Support Wires(18-24 Gauge Wire) Ningunas opciones de la energía proporcionaron. Energía requerida para la cámara fotográfica solamente. - Page 5 11.125” Using the provided template, mark the A box cutter or jigsaw can be used for ceiling tile for the cutout. cutting the circle. • Un cortador o un rompecabezas de la caja se • Con la plantilla proporcionada, cortar el azulejo del techo puede utilizar para cortar el círculo.
- Page 6 Support Arms Rotate Support Arms Rotate Mounting Holes Base Bracket Support Arm Holes With the bottom flange pressed against the ceiling, The camera may be mounted on either side of the rotate support arms to the outside. Tighten the support tilted part of the camera bracket.
- Page 7 Reattach the trim ring/ dome assembly by pressing in and sliding (3) springs in the housing. • Reate el montaje de la bóveda del anillo del ajuste clavando y resbalando (3) los resortes en la cubierta. • Rattachez le dôme d'anneau d'équilibre en enfonçant et diapositive (3) des ressorts dans le logement. •...
-
Page 8: Replacement Parts List
Replacement Parts List Part Number Description RPMR7010 MR7 TOP HOUSING ASSEMBLY MR7CN MR7TN RPMR7020 MR7 SUPPORT ARMS KIT (SET OF 3) RPNET04 NETWORK BASE BRACKET REPLACEMENT CAPSULE FOR MR7T RCMR7T HOUSING REPLACEMENT CAPSULE FOR MR7CL RCMR7C HOUSING, NO SILKSCREEN, LINER RPMR7050 WHITE TRIM RING ASSEMBLY UNIVERSAL NETWORK PACKET &... - Page 9 © 2011, Moog Videolarm, Inc. All Rights Reserved www.videolarm.com C a m e r a M o u n t i n g I n s t r u c t i o n s W81-IN5481 01-19-2012...
- Page 10 NOTE: For all RHP and RHW models a ½” (13mm) Für alles RHP und RHW modelliert eine ½“ spacer is added for additional height. (13mm) Distanzscheibe hinzugefügt für zusätzliche Höhe. Deutsch English Para todo el RHP y RHW modela un Para todo o RHP e RHW modela um espaciador del ½”...
- Page 11 ARECONT: AV8185 / AV8365 / AV20185 / AV20365 • Mounting holes (4-#8 x ¾”) (75mm) 1” 2” AVIGILON: HD-Dome Series • Mounting holes (3-#8) (100mm) 1” 1” 2”...
- Page 12 AXIS: 215 • Mounting holes (4-#8) (100mm) 1” 1” 2” AXIS: 233D • Mounting holes (4-#8) (25mm) 1” BASLER: BIP2-1000C-DN / BIP2-1300C-DN / BIP-D1000C-DN / BIP-D1300C-DN • Mounting holes (3-#8) (100mm) 1” 1” 2”...
- Page 13 CANON: VB-C60 • Mounting holes (64mm) ½” 2” CANON: VB-M40 • Mounting holes (64mm) ½” 2” CANON: VB-C300 • Mounting holes (88mm) ½” 1” 2”...
- Page 14 ELMO: PTC 400C • Mounting holes (4-#8) (100mm) ½” ½” 1” 2” JVC: VN-V686BU / VN-V685U • Mounting holes (3-#8) (38mm) ½” 1” PANASONIC: BB-HCM580/581 • Mounting holes (88mm) ½” 2” 1”...
- Page 15 PANASONIC: WV-CS580 Series • Mounting holes (4-#8) (38mm) ½” 1” PANASONIC: SC386 • Mounting holes (4-#8) (25mm) 1” PANASONIC: WV-CS574 • Mounting holes (4-#8) (50mm) 2”...
- Page 16 PANASONIC: WV-CS954 / WV-NS954 • Mounting holes (4-#8) (13mm) ½” PANASONIC: WV-NS202 / WV-SC385 / WV-SC384 • Mounting holes (4-#8) (75mm) 1” 2” PIXORD: P-463 • Mounting holes (3-#8) (25mm) 1”...
- Page 17 SANYO: VCC-HD 5400 • Mounting holes (2-#8) (64mm) ½” 2” SONY: EP / ER Series (520 / 550 / 580) • Mounting holes (4-#8) (38mm) ½” 1” SONY: RX Series (RX530 / RX550 / RX570) • Mounting holes (4-M3)
-
Page 18: Sony: Snc-Rz25
SONY: SNC RH/RS Series (RH124 / RS44 / RS46) • Mounting holes (4-#8) (25mm) 1” SONY: SNC-RZ25 • Mounting holes (2-M3) (13mm) ½” SONY: SNC-RZ50 • Mounting holes (2-M3) (50mm) 2”... -
Page 19: Toshiba: Ik-Wb21A
TOSHIBA: IK-WB16A • Mounting holes (88mm) ½” 2” 1” TOSHIBA: IK-WB21A • Mounting holes (4-#8) (75mm) 1” 2” VIDEO IQ: VIQ-CT / CID / CRD / HD-CRD • Mounting holes (4-M4x10) (75mm) 1” 2”... -
Page 20: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
