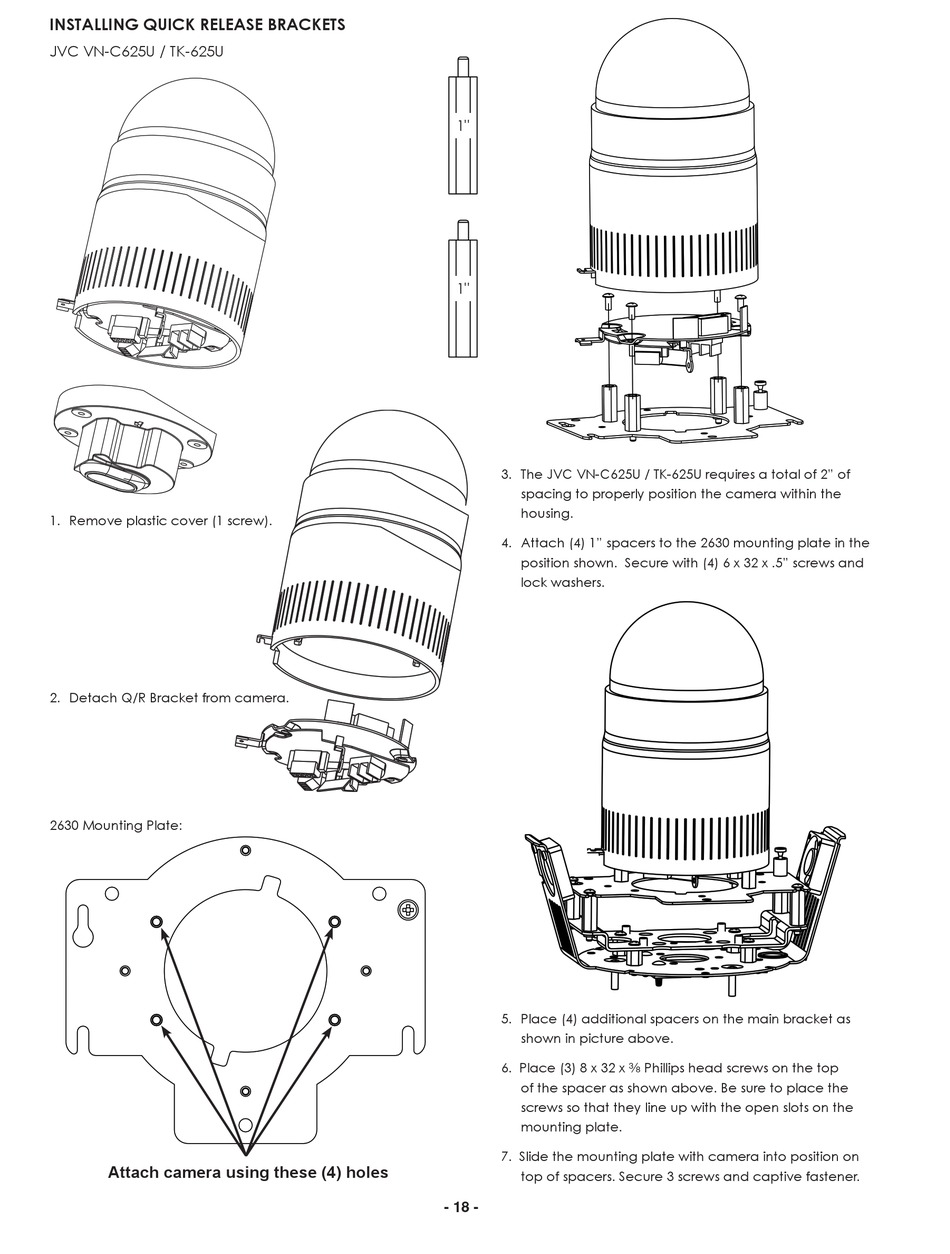

INSTALLING QUICK RELEASE BRACKETS

JVC VN-C625U / TK-625U

1. Remove plastic cover (1 screw).

2. Detach Q/R Bracket from camera.

2630 Mounting Plate:

Attach camera using these (4) holes

3. The JVC VN-C625U / TK-625U requires a total of 2" of

spacing to properly position the camera within the

housing.

4. Attach (4) 1" spacers to the 2630 mounting plate in the

position shown. Secure with (4) 6 x 32 x .5" screws and

lock washers.

5. Place (4) additional spacers on the main bracket as

shown in picture above.

6. Place (3) 8 x 32 x s Phillips head screws on the top

of the spacer as shown above. Be sure to place the

screws so that they line up with the open slots on the

mounting plate.

7. Slide the mounting plate with camera into position on

top of spacers. Secure 3 screws and captive fastener.

- -
