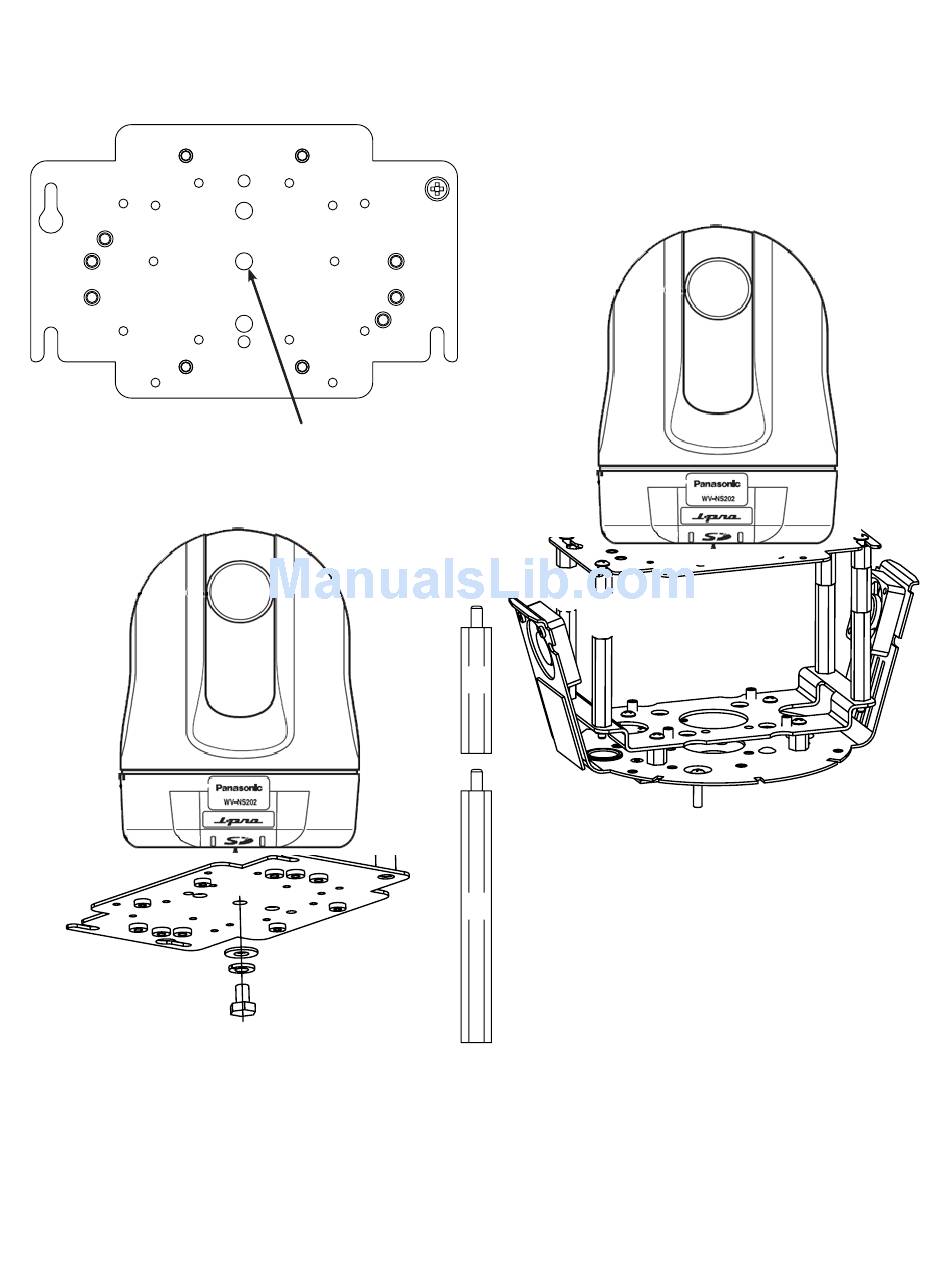

INSTALLING QUICK RELEASE BRACKETS
PANASONIC WV-NS202
2539 Mounting Plate:
Attach camera using this hole
1. Install the camera to the 2539 mounting plate using the
¼ x 20, washer and lockwasher provided.
2. The Panasonic WV-NS202 requires 3"
of spacing to properly position the camera within the
housing.
1"
3. Place (3) 8 x 32 x s Phillips head screws on the top
of the spacer as shown above. Be sure to place the
screws so that they line up with the open slots on the
mounting plate.
2"
4. Slide the mounting plate with camera into position on
top of spacers. Secure 3 screws and captive fastener.
