Matrox MXO2 Installation And User Manual page 88

76
In the Encoder pane of the Inspector window, make sure that File Format
3
is set to Matrox MAX H.264 , and Extension is set to 264 , and then click
Options

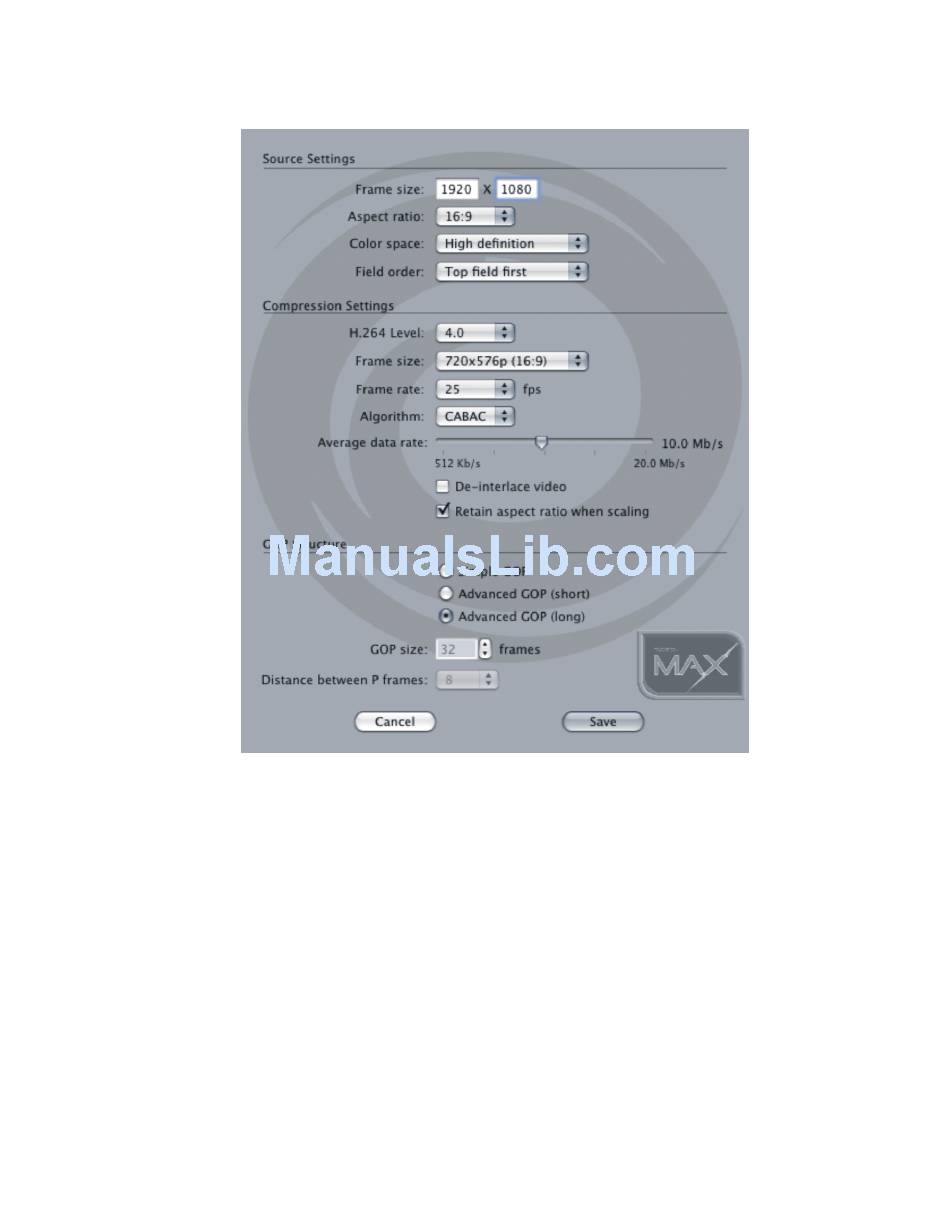

Under Source Settings , specify the settings for your source video.
4
$
¦ Note
horizontal value must be an even number.
$
$
$
Chapter 9, Using the Matrox MAX H.264 codec
.
Type your source video's Frame size (horizontal×vertical).
The frame size must be between 32×32 and 4095×2047, and the
Select your source video's Aspect ratio .
Select your source video's Color space .
Select your source video's Field order :
Progressive Select this for all progressive video.
•
Top field first Select this for interlaced video that displays the top
•
field before the bottom field, such as for PAL and 1080i video.
Bottom field first
•
bottom field before the top field, such as for NTSC video.
Select this for interlaced video that displays the
