Appendix B, Matrox MXO2 Connectors

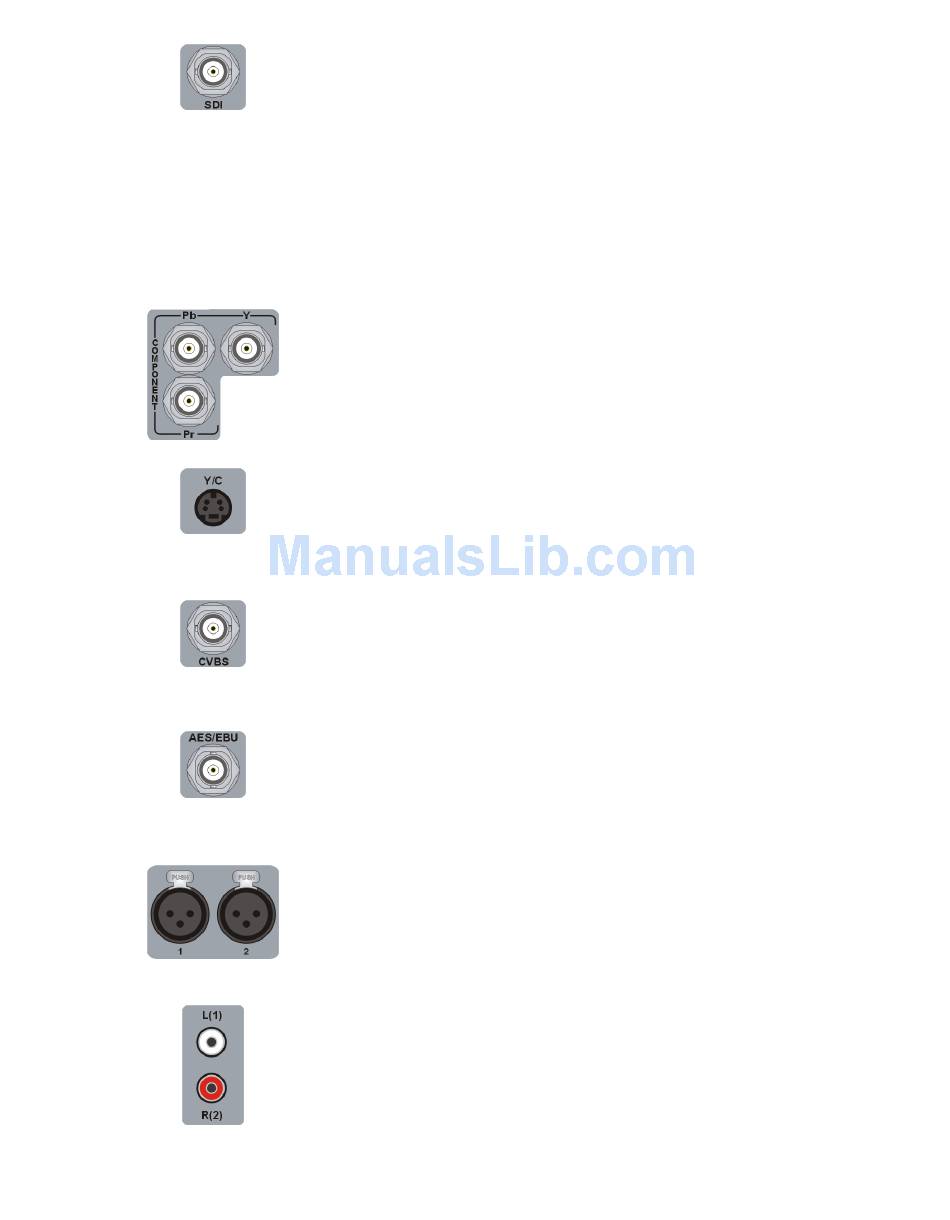

SDI Provides an input for use with a digital SDI device. This
input supports HD-SDI and SD-SDI video, and up to eight
channels of embedded audio. You can also use this input to
capture 720p at 23.98 VariCam material, and video with closed
captioning (see "Matrox 4VANC closed caption capture and
playback (MXO2 and MXO2 Rack only)"
Connect an SDI video/audio cable from a camera, VTR, or
other video input source.
Component video (Y, Pb, Pr) Provide inputs for use with an
analog component device, and support HD and SD video.
Connect component Y, Pb, Pr video cables from a camera,
VTR, or other video input source.
Y/C (S-Video) Provides an input for use with an analog
S-Video device (SD only). Connect an S-Video cable from a
camera, VTR, or other video input source.
Composite video (CVBS) Allows you to input SD video
from an analog NTSC or PAL device. Connect a composite
video cable from a camera, VTR, or other video input source.
AES/EBU digital audio Allows you to input stereo digital
audio. Connect a coaxial BNC audio cable from a camera,
VTR, audio mixer, or other audio input source.
Analog audio (balanced) Allows you to input balanced
stereo analog audio. Connect XLR cables from a camera, VTR,
audio mixer, or other audio input source.
Analog audio (unbalanced) Allows you to input unbalanced
stereo analog audio. Connect RCA cables from a camera, VTR,
audio mixer, or other audio input source.
on page 50).
