MXO2 RS-422 serial connection

MXO2's RS-422 serial connector allows an application, such as Final Cut Pro, to
control a device that uses the RS-422 SMPTE time code protocol, such as a VTR
or digital disk recorder, to ensure frame-accurate capture and edit-to-tape. For
details on how to ensure accurate device control with Final Cut Pro, see
"Ensuring frame-accurate capture and edit-to-tape using Final Cut Pro" on
page 67.

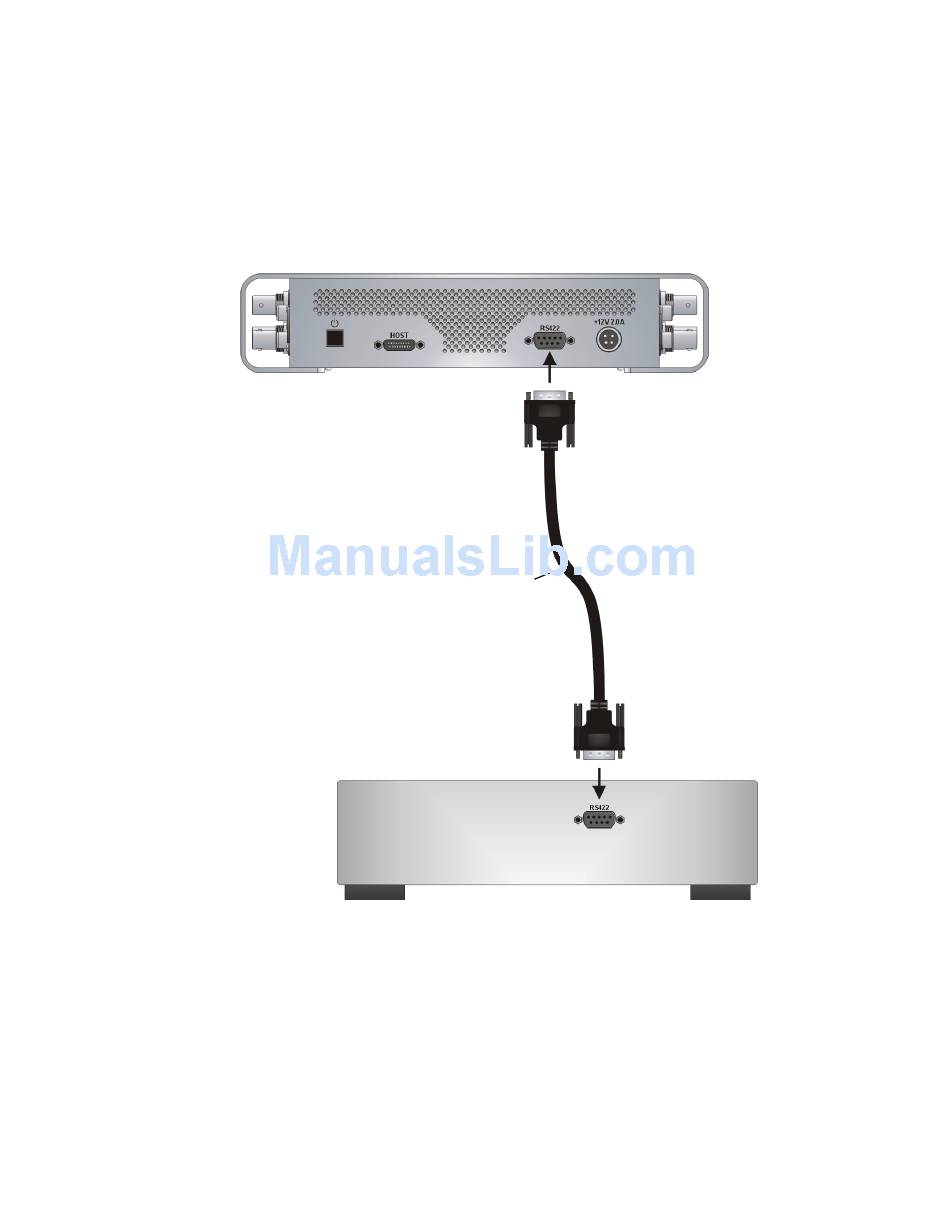

MXO2
(side view)
RS-422 serial cable
RS-422 device
MXO2 RS-422 serial connection
