HDMI video connections

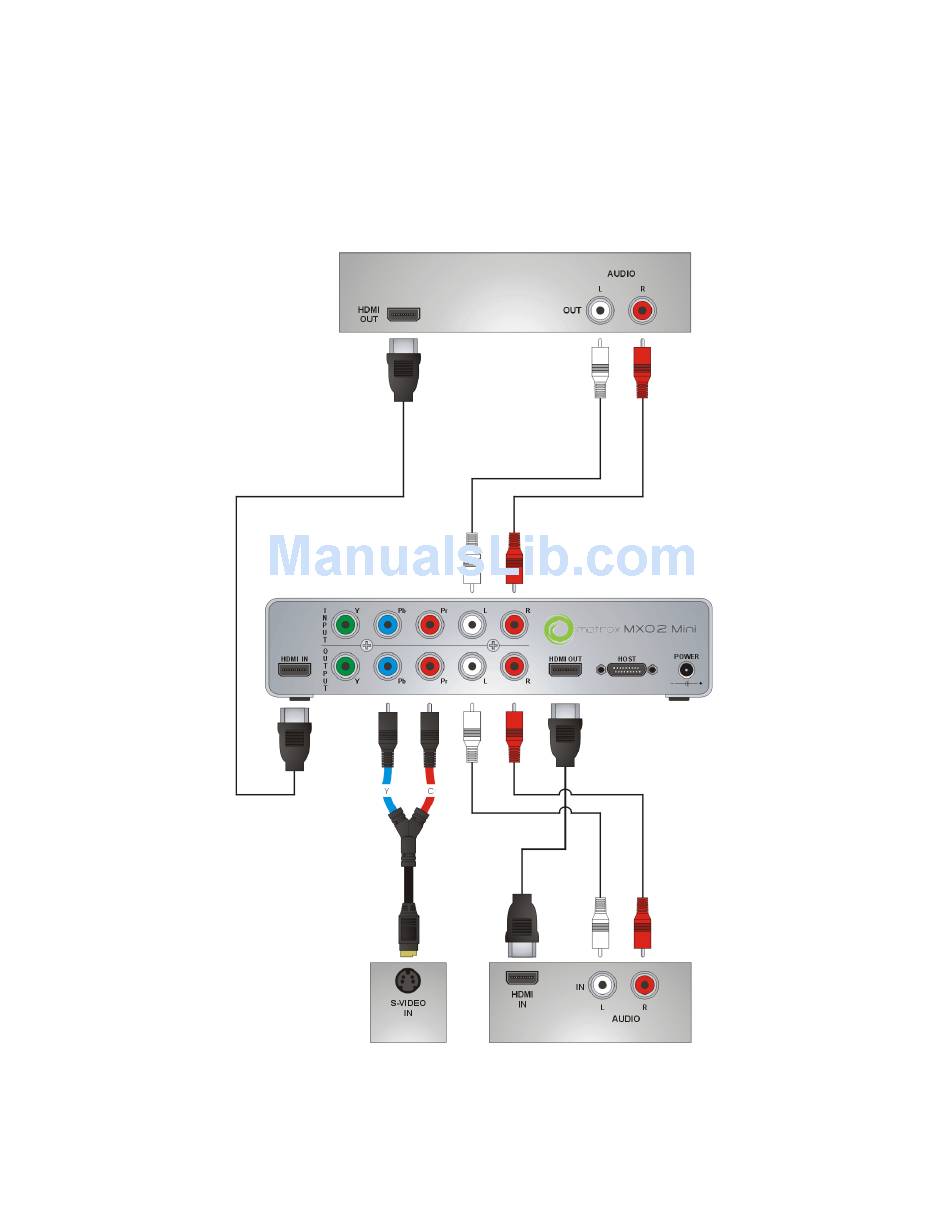

In this illustration, we're using HDMI for video, RCA connectors for audio, and
S-Video for video monitoring. The video is genlocked to the input source using
MXO2 Mini's built-in genlock.
¦ Note
When using HDMI connections, the embedded uncompressed HDMI
audio is also available.
Source
(Deck 1)
S-Video
monitor
Typical Matrox MXO2 Mini connections
MXO2 Mini
Recorder
(Deck 2)
31
