Matrox MXO2 Installation And User Manual page 110

98
Appendix B, Matrox MXO2 Connectors

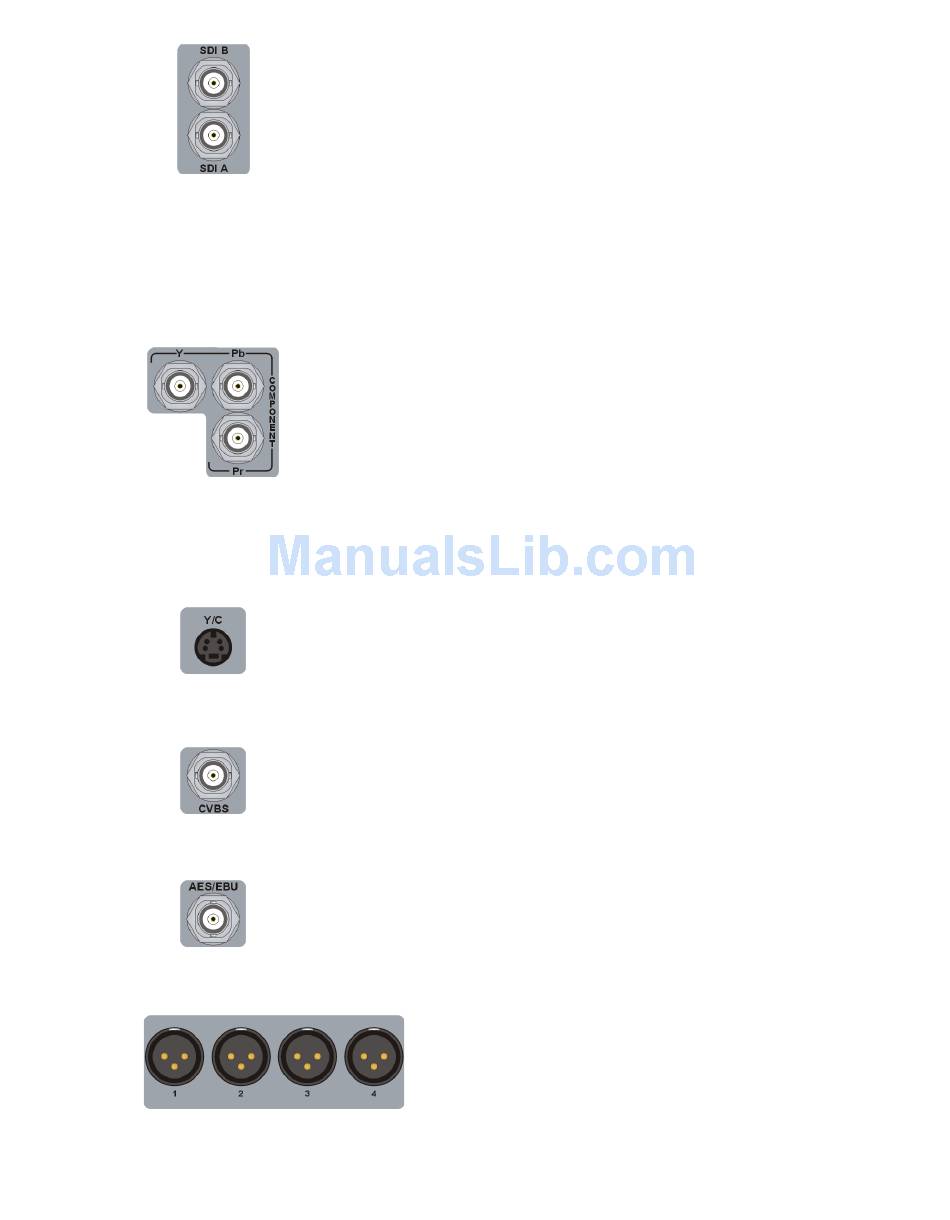

SDI A and SDI B Provide two simultaneous outputs of the
same HD-SDI or SD-SDI video, with up to eight channels of
embedded audio. You can output video with closed captioning
using the SDI outputs (see
capture and playback (MXO2 and MXO2 Rack only)"
page 50). For each output, connect an SDI video/audio cable to
a video monitor, VTR, or other SDI device. You can also
perform 5.1 surround sound monitoring through the SDI output
by connecting to a third-party device, such as an SDI audio
de-embedder.
Component video (Y, Pb, Pr) Allows you to output HD or
SD video to an analog component device. Connect component
Y, Pb, Pr video cables to a video monitor, VTR, or other
component device.
¦ Note The component output supports YUV and RGB
devices. To set the component output type, see
"Specifying your video output settings (MXO2 and
MXO2 Rack only)"
Y/C (S-Video) Provides an output for SD video to an analog
S-Video device. Connect an S-Video cable to a video monitor,
VTR, or other S-Video device.
Composite video (CVBS) Allows you to output SD video to
an analog NTSC or PAL device. Connect a composite video
cable to a video monitor, VTR, or other NTSC or PAL device.
AES/EBU digital audio Allows you to output stereo digital
audio. Connect a coaxial BNC audio cable to a VTR, audio
mixer, speakers, or other audio device.
Analog audio (balanced) Allows you to output
balanced stereo analog audio. Connect XLR
cables to a VTR, audio mixer, speakers, or other
audio device.
"Matrox 4VANC closed caption
on page 44.
on
