Input connector descriptions for MXO2 Mini

This section describes the Matrox MXO2 Mini inputs. For MXO2 and MXO2
Rack inputs, see
page 91.
You can select the video and audio inputs to be used as your capture source in the
MXO2 Mini preferences window (see
(MXO2 Mini only)"
formats, see Appendix C, "Matrox MXO2 Supported Input and Capture
Formats."
¦ Note Analog A/V cables connected to Matrox MXO2 Mini must be limited to
less than three meters to comply with EEC and EMC directives.
"Input connector descriptions for MXO2 and MXO2 Rack"
on page 42). For a list of the supported input and capture

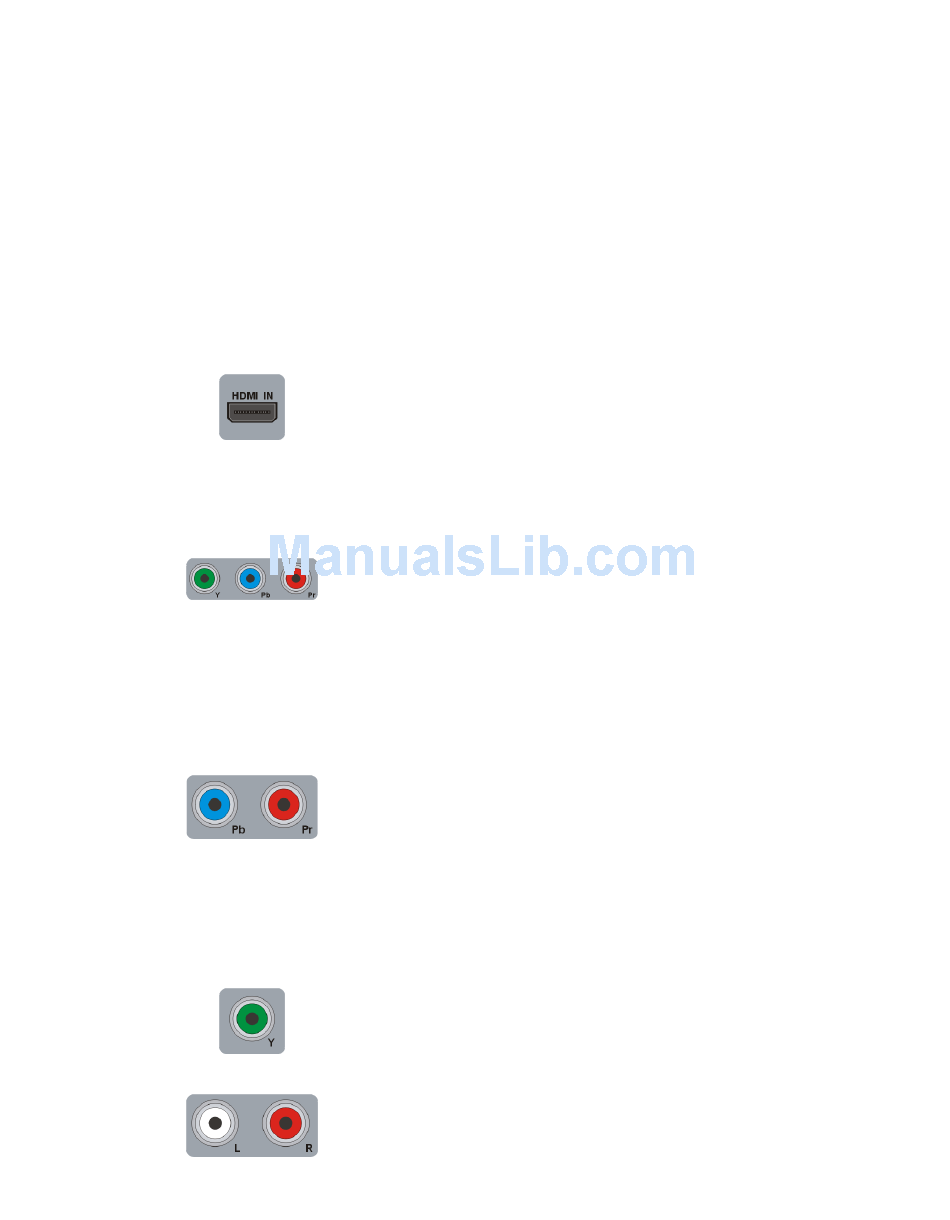

HDMI Provides an input for HD HDMI video (either YUV
or RGB), and up to eight channels of uncompressed embedded
audio, from a digital HDMI device. HDCP sources and SD
video are not supported on this input. Connect a standard
HDMI video/audio cable from a camera, VTR, or other video
input source.
Component video (Y, Pb, Pr) Provide inputs for use with an
analog component device, and support HD and SD video.
Connect component Y, Pb, Pr video cables from a camera,
VTR, or other video input source.
¦ Note When you connect an analog component device
to MXO2 Mini, you won't be able to connect an
S-Video or composite device at the same time.
S-Video Input connectors Pb and Pr allow you to connect the
MXO2 S-Video adapter cable for use with an analog S-Video
device (SD only). Connect an S-Video cable, via the MXO2
S-Video adapter cable, from a camera, VTR, or other video
input source. For an illustration on how to connect S-Video
devices to MXO2 Mini, see
MXO2 Mini" on page 29.
Composite video (Y) Allows you to input SD video from an
analog NTSC or PAL device. Connect a composite video cable
from a camera, VTR, or other video input source.
Analog audio (unbalanced) Allows you to input unbalanced
stereo analog audio. Connect RCA cables from a camera, VTR,
audio mixer, or other audio input source.
