Omron SYSMAC C20K Operation Manual page 54

The Ladder Diagram
Interlocks
0000
0001
0002
Diagram B: Corrected with an Interlock
0000
0001
0002
0003 0004
0005
0006
42
The problem of storing execution conditions at branching points can also be
handled by using the INTERLOCK (IL(02)) and INTERLOCK CLEAR
(ILC(03)) instructions. The branching point and all the conditions leading to it
are placed on a separate line followed by all of the lines from the branching
point. Each branch line is thus established as an new instruction line, with the
first condition on each branch line corresponding to a LOAD or LOAD NOT
instruction. If the execution condition for the INTERLOCK instruction is OFF,
all instructions on the right side of the branch lines leading from the branch-
ing point receive an OFF execution condition through the first INTERLOCK
CLEAR instruction. The effect that this has on particular instructions is de-
scribed in 5-7 INTERLOCK and INTERLOCK CLEAR - IL(02) and ILC(03) .

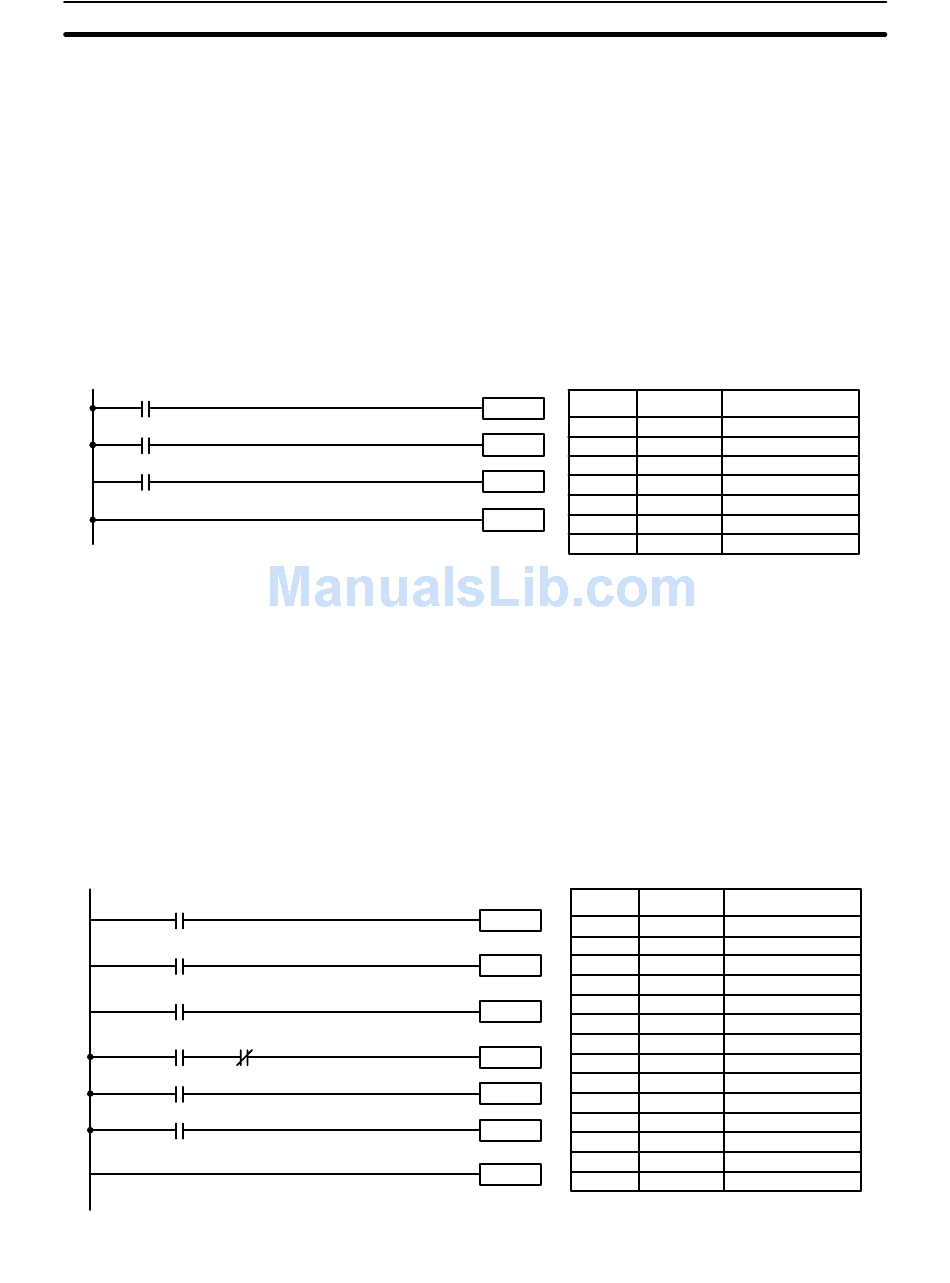

Diagram B from the initial example can also be corrected with an interlock.
As shown below, this requires two more instruction lines for the interlock in-
structions.
Instruction 1
Instruction 2
If 0000 is ON in the revised version of diagram B, above, the status of 0001
and that of 0002 would determine the execution conditions for instructions 1
and 2, respectively, on independent instruction lines. Because here 0000 is
ON, this would produce the same results as ANDing the status of each of
these bits, as would occur if the interlock was not used, i.e., the INTERLOCK
and INTERLOCK CLEAR instructions would not affect execution. If 0000 is
OFF, the INTERLOCK instruction would produce an OFF execution condition
for instructions 1 and 2 and then execution would continue with the instruc-
tion line following the INTERLOCK CLEAR instruction.
As shown in the following diagram, more than one INTERLOCK instruction
can be used within one instruction block; each is effective through the next
INTERLOCK CLEAR instruction.
Instruction 1
Instruction 2
Instruction 3
Instruction 4
Address Instruction
IL(02)
0000 LD
0001 IL(02)
0002 LD
0003 Instruction 1
0004 LD
ILC(03)
0005 Instruction 2
0006 ILC(03)
Address Instruction
IL(02)
0000 LD
0001 IL(02)
0002 LD
0003 Instruction 1
0004 LD
IL(02)
0005 IL(02)
0006 LD
0007 AND NOT
0008 Instruction 2
0009 LD
0010 Instruction 3
0011 LD
0012 Instruction 4
ILC(03)
0013 ILC(03)
Section 4-3
Operands
0000
---
0001
0002
---
Operands
0000
---
0001
0002
---
0003
0004
0005
0006
---
