Step 2.2: System Configuration Wizard

Select the System Configuration Wizard from the System menu. The System Configu-
ration Wizard is a tool for the administrator to define the Quadro's Local Area Network set-
tings and to specify regional configuration settings to make Quadro operational in its LAN.
The System Configuration Wizard must be run upon Quadro first startup.
For the basic configuration, some pages in this wizard may be skipped and left default for
the basic configuration.
Please Note: It is strongly recommended that factory default settings are left unchanged if
their meanings are not completely understandable to the party administrating the Quadro.

System Configuration

The first page of System Configuration Wizard shows all items to be configured. Click the
Next button to start. Enter into the Host Name field the unique name (top right corner, un-
der Epygi logo) for the Quadro device. The Domain Name text field requires the LAN side
domain name which the Quadro belongs to.
For a basic configuration, the LAN IP address does not need to be changed, but if you
must change it (for example, to integrate the device into an existing LAN), record the new
LAN IP address and have it handy. You'll need it for subsequent access to Quadro's man-
agement.
Clicking Next shows the page DHCP Settings for the LAN Interface.
QuadroM32x/8L/26x/12Li/26xi; (SW Version 5.3.x)
Step 2: Configuring the Quadro

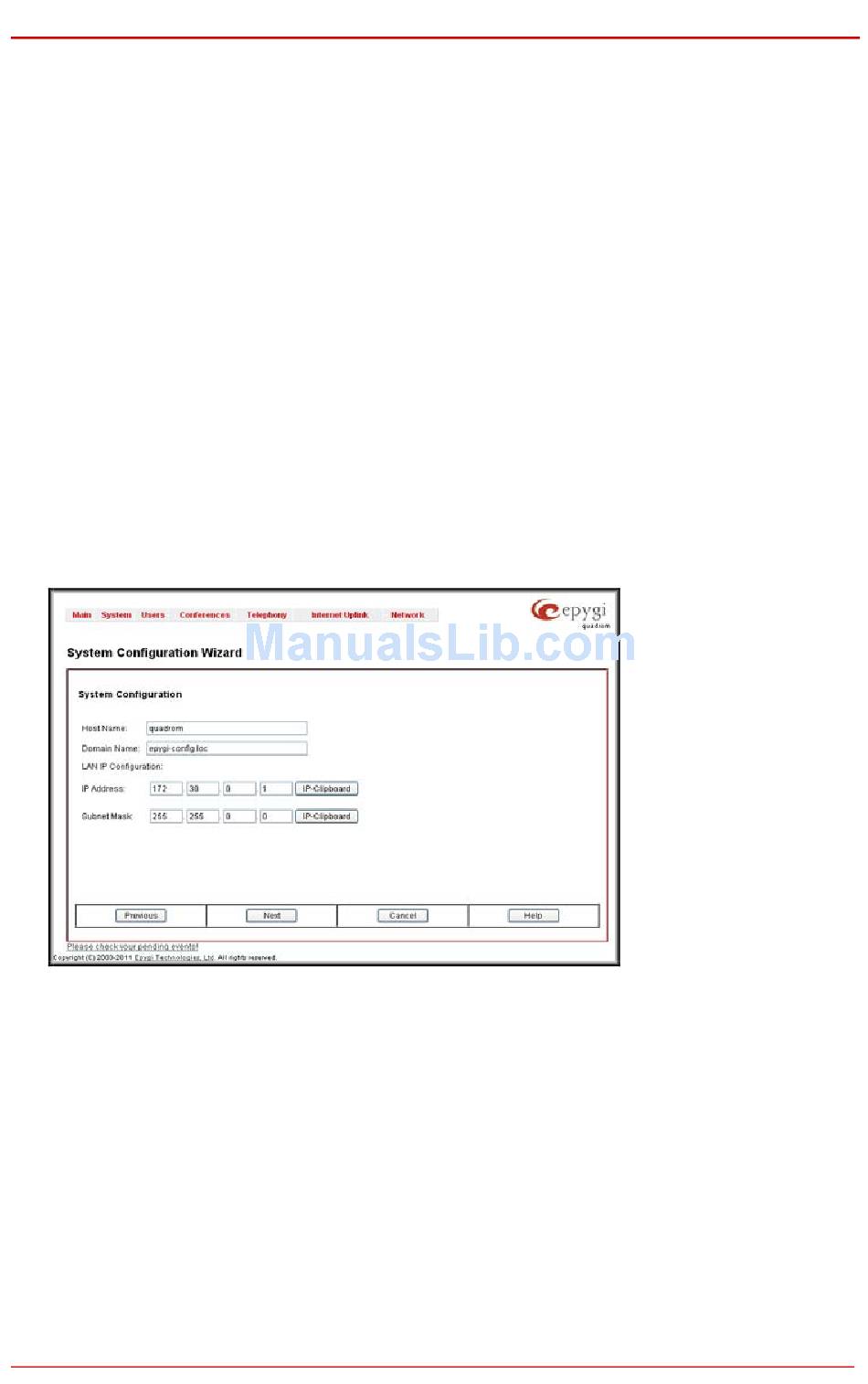

Fig. I-29: System Configuration page
28
