QuadroM32x/8L/26x/12Li/26xi Manual I: Installation Guide

QuadroM32x/8L/26x/12Li/26xi's Front Panel LEDs

POWER
1.
green
Status of the Power Supply
Busy
2.
green
Status of CPU
Info
3.
yellow
System information
Fault
4.
red
System status
WAN
5.
green
Status of the WAN interface
LAN
6.
green
Status of the LAN interface
Green LED
7.
for ISDN
Trunks 1-6
Orange LED
8.
for ISDN
Trunks 1-6
ETH
9.
green
Status of the ETH interface
E1/T1
10.
green
Status of the E1/T1 trunk
QuadroM32x/8L/26x/12Li/26xi; (SW Version 5.3.x)

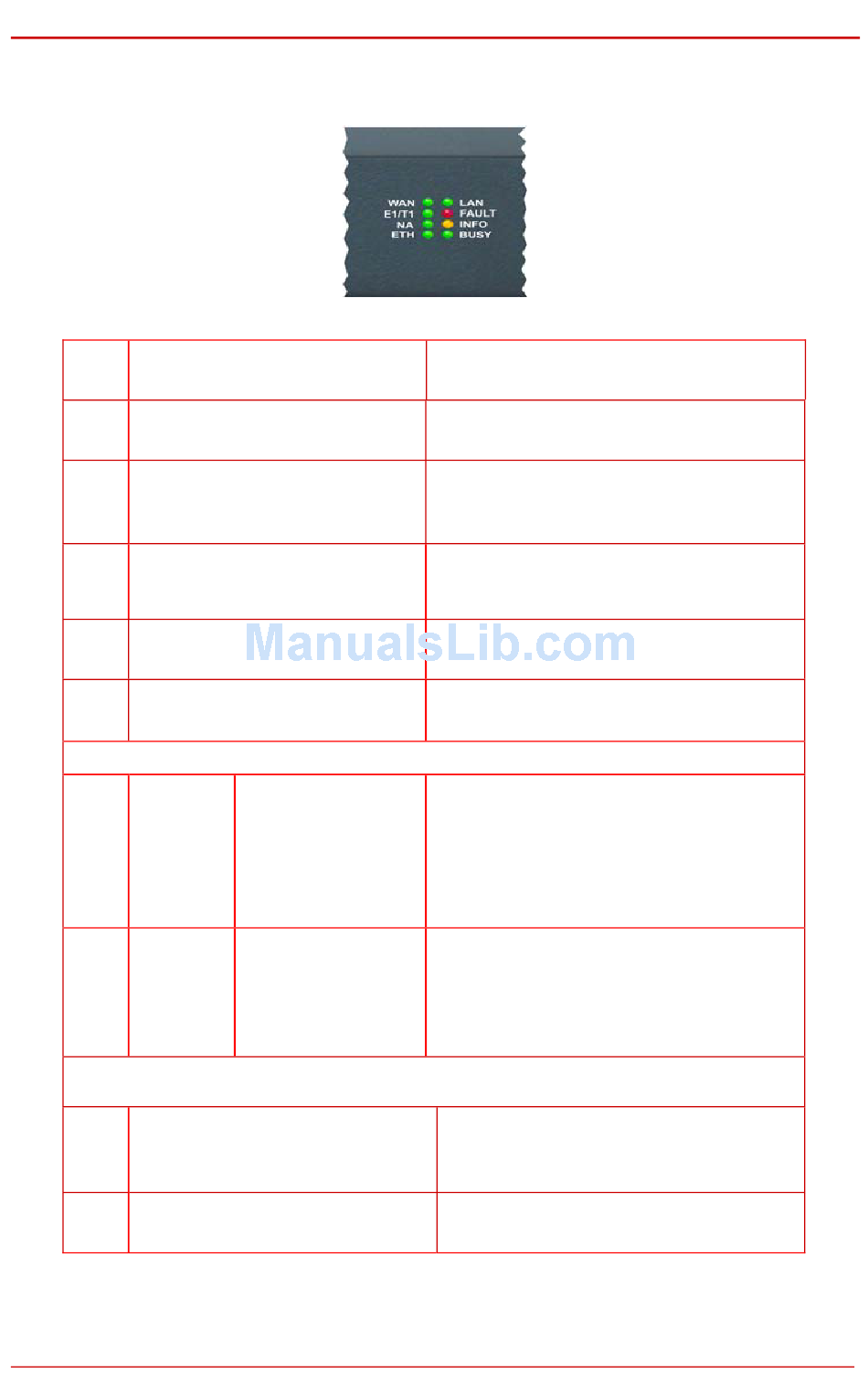

Fig. I-6: QuadroM32x's Front Panel LEDs
QuadroM12Li/26xi's Additional Front Panel LEDs
ISDN Link Status
Power Source Status on
ISDN Network Mode
QuadroM32x's Additional Front Panel LEDs
on: power supply ok
off: no power supply or device is still booting
off: no power
on or blinking: normal activity
on: device is booting
off: no information
blinking: an event occurred; details specified in the
Sys tem Event section of the Management in-
terface
on either an error or the device is booting
off: no error
blinking: system unusable
on: link ok
off: no link
flickering: traffic on the link
on: link ok
off: no link
flickering: traffic on the link
on: ISDN link is UP, Frame Synchronization is OK
-
off: In passive mode ISDN link status is not
informative.
-
In non passive mode ISDN link is not
nected or ISDN trunks are stopped from GUI
on: Power Source checkbox is selected from GUI on
Network Mode and some type of ISDN de-
vices(ISDN Phones, etc.) can receive power from
Quadro
off: Power Source checkbox is not selected from GUI
on: link ok
off: no link
flickering: traffic on the link
on: frame synchronization is ok
off: frame synchronization is not ok or link is down
Hardware Overview
con-
