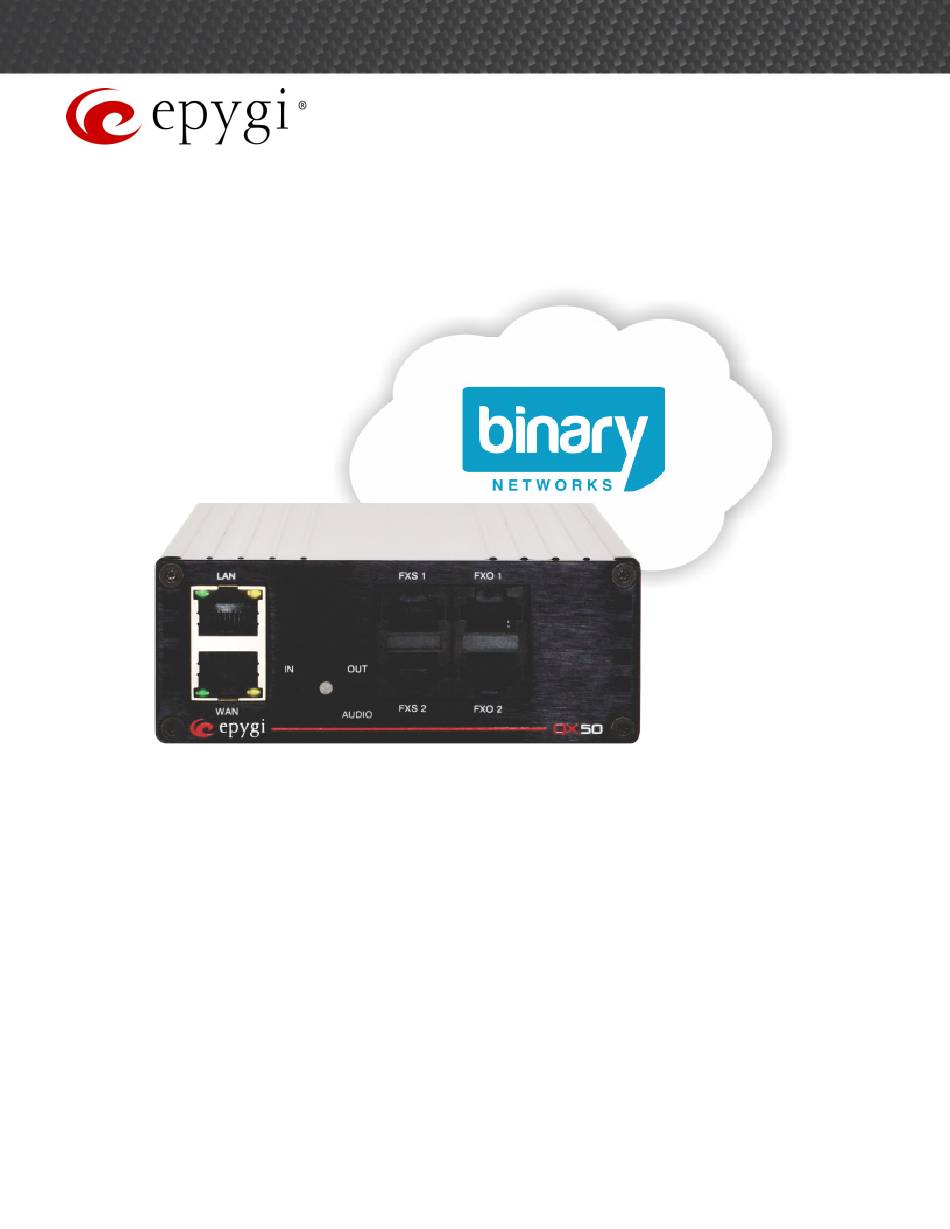

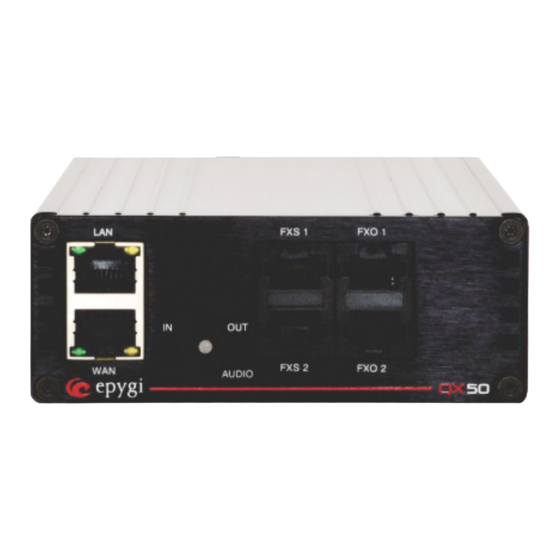

Configuring Epygi QX IP PBXs
with BINARY NETWORKS
Abstract:
This document describes the configuration of the Epygi QX IP PBXs to
use the IP-PSTN service from BINARY NETWORKS.
Please Note:
This document contains confidential and proprietary information owned by Epygi Technologies, LTD. Any copying, use or disclosure of the document or the
information contained herein without the written permission of Epygi Technologies, LTD. is strictly prohibited.
Copyright © 2003-2015 Epygi Technologies, LTD. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Epygi QX Series

Summary of Contents for Epygi QX Series

  • Page 1 IP-PSTN service from BINARY NETWORKS. Please Note: This document contains confidential and proprietary information owned by Epygi Technologies, LTD. Any copying, use or disclosure of the document or the information contained herein without the written permission of Epygi Technologies, LTD. is strictly prohibited.
  • Page 2 Configuring Epygi QX IP PBXs with BINARY NETWORKS Document Revision History Revision Date Description Valid for SW Valid for Models 01-Oct-2015 Initial release 6.1.x and higher QX IP PBXs Revision 1.0 1-Oct-15...

  • Page 3: Table Of Contents

    Configuring Epygi QX IP PBXs with BINARY NETWORKS Table of Contents 1 Introduction ........................4 2 Scenario .......................... 4 2.1 Requirements and Preparations ....................4 2.2 Account Information from BINARY NETWORKS ................4 3 Configuration ........................4 3.1 Configuration for Making Outgoing Calls through BINARY NETWORKS .......... 5 3.2 Configuration for Receiving Inbound Calls from BINARY NETWORKS ..........

  • Page 4: Introduction

    Configuring Epygi QX IP PBXs with BINARY NETWORKS 1 Introduction This document describes the configuration of Epygi QX IP PBXs (herein IP PBX) to use the SIP trunking service from BINARY NETWORKS. The IP PBX is capable of making IP-PSTN calls via BINARY NETWORKS SIP trunks.

  • Page 5: Configuration For Making Outgoing Calls Through Binary Networks

    Configuring Epygi QX IP PBXs with BINARY NETWORKS 3.1 Configuration for Making Outgoing Calls through BINARY NETWORKS Configure the provided account on the IP PBX as follows to make outgoing calls. Go to the Telephony VoIP Carrier Wizard menu, pass through the wizard by inserting the below listed ...
  • Page 6 Configuring Epygi QX IP PBXs with BINARY NETWORKS Figure 2: VoIP Carrier Wizard- Page 2 On the third page of the VoIP Carrier Wizard define the Access Code (let’s say 0) which will be used in the Call Routing Table for making outgoing calls to BINARY NETWORK, and the IP PBX extension which will receive all incoming calls from BINARY NETWORKS SIP trunks.
  • Page 7 Configuring Epygi QX IP PBXs with BINARY NETWORKS Figure 3: VoIP Carrier Wizard- Page 3 Confirm entered settings on the last page of VoIP Carrier Wizard page and press Finish (Figure 4). Figure 4: VoIP Carrier Wizard- Page 4 Revision 1.0...

  • Page 8: Configuration For Receiving Inbound Calls From Binary Networks

    Configuring Epygi QX IP PBXs with BINARY NETWORKS As a result of above listed steps, the provided account is configured on the automatically created extension 989 and the routing rule 0* is automatically added to the Call Routing table. This allows making outbound calls through BINARY NETWORK SIP trunks using 0 prefix when dialing, as well as receiving inbound calls to the extension 989 (Figure 5).
  • Page 9 Configuring Epygi QX IP PBXs with BINARY NETWORKS Figure 6: Unconditional Call Forwarding page for extension 989 The second option can be used when a range of DIDs is allocated and provided to the customer. In this case it is possible to receive inbound calls directly to the same or different extensions. See below an example with a range of 100 DID numbers (61390208400 –...

  • Page 10: Additional Notes

    Configuring Epygi QX IP PBXs with BINARY NETWORKS Figure 7: Call Routing Wizard page How the rule works: An inbound call matching one of the DIDs within the 613902084{00-99} range will be forwarded to the extension 1{00-99}. 4 Additional Notes 4.1 Sending Music on Hold to Remote Parties...
  • Page 11 Configuring Epygi QX IP PBXs with BINARY NETWORKS Figure 8: Basic Services – Hold Music Settings page If the IP PBX is configured with an ITSP that does not support remote MOH (the ITSP closes the received audio stream when receiving a SIP re-INVITE message with the c=IN IP4 0.0.0.0, a=send only media attributes), please follow these steps to complete the configuration: Type “generalconfig.cgi”...

  • Page 12: Sending And Receiving Faxes Through Binary Networks Sip Server

    Configuring Epygi QX IP PBXs with BINARY NETWORKS Figure 9: General Configuration page 4.2 Sending and Receiving Faxes through BINARY NETWORKS SIP Server Connect the fax machine to one of the FXS extensions attached to FXS 1/FXS 2 line and enable the Enable T.38 FAX and Enable Pass Through FAX options for the selected extension to send a fax.
  • Page 13 Configuring Epygi QX IP PBXs with BINARY NETWORKS Figure 10: Auto Atendant General Settings page Go to the Extensions Extensions Management menu (Figure 11).  Click on the Codecs link of the extension 102. Select the Enable T.38 FAX and Enable Pass Through FAX checkboxes and press Save (Figure 12).
  • Page 14 Configuring Epygi QX IP PBXs with BINARY NETWORKS Figure 12: Codecs page for extension 102 Please Note: The IP PBX allows also receiving FAX messages as a TIF file into the extension’s voice mailbox if there is no FAX machine attached to that extension. In this case the following should be configured on that extension: Enable Voice Mail Service.

  • Page 15: References

    THIS DOCUMENT IS PROVIDED TO YOU FOR INFORMATIONAL PURPOSES ONLY. The information furnished in this document, believed by Epygi Technologies to be accurate as of the date of publication, is subject to change without notice. Epygi Technologies assumes no responsibility for any errors or omissions in this document and shall have no obligation to you as a result of having made this document available to you or based upon the information it contains.
