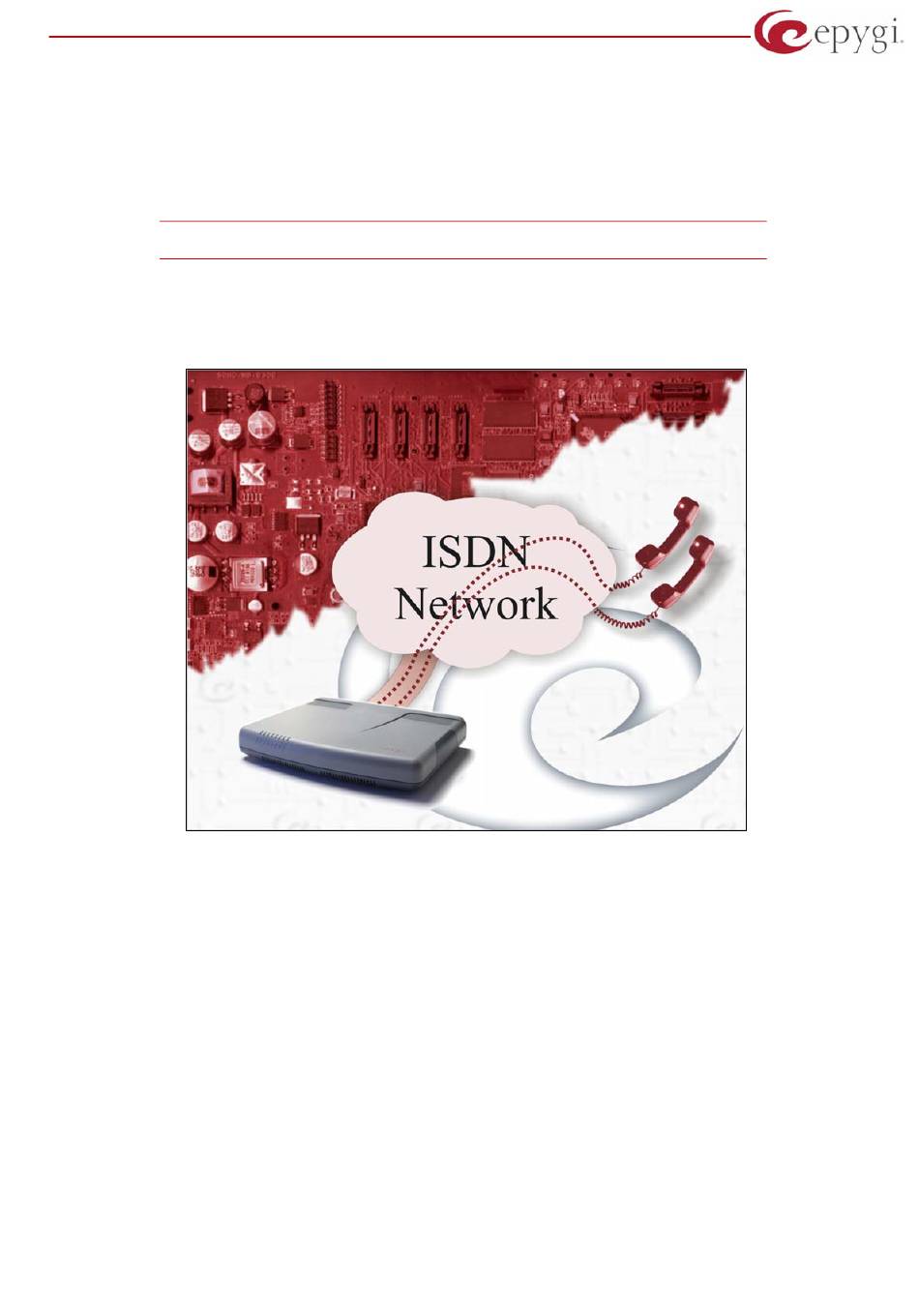

Configuring Quadro with ISDN
Abstract:
ISDN interface and describes the basic configuration steps to setup
the ISDN on the Quadro.
Please Note:
This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure
of the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.
Revision
Initial draft
Revised
Globally updated
Quadro variants:
valid for
SW-version:
tested with
SW version:
Filename:
Guide_to_Call_Back.doc
Version:
Template:
NEWSupportTemplate.dot
Last saved:
2/7/2006 12:00:00 PM
This document helps to configure and use the Quadro via
Revised By
Liana Gevorgyan
Artur Sanasaryan
Diana Gurzadyan
Date
22-Jan-2006
26-Jan-2006
01-Feb-2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quadro 2xi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Epygi Quadro 2xi

Summary of Contents for Epygi Quadro 2xi

  • Page 1 ISDN on the Quadro. Please Note: This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure of the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.

  • Page 2: Table Of Contents

    Epygi Technologies Configuring Quadro with ISDN Table of Contents: Introduction ................3 Functional Description .............3 The Rear Panels of Quadro2xi, 4xi and 16xi ........3 Quadro’s Front Panel LEDs ............4 How to configure ISDN Trunk(s)..........4 ISDN trunk configuration using DDI ........5 ISDN trunk configuration using MSN .........8 Configuring Routing Rules ............

  • Page 3: Introduction

    Epygi Technologies Configuring Quadro with ISDN 1 Introduction This document helps to configure and use the Quadro via ISDN interface and describes the basic configuration steps to setup the ISDN on the Quadro. 2 Functional Description Integrated Services Digital Network (ISDN) consists of digital telephony and data-transport services offered by regional telephone carriers.

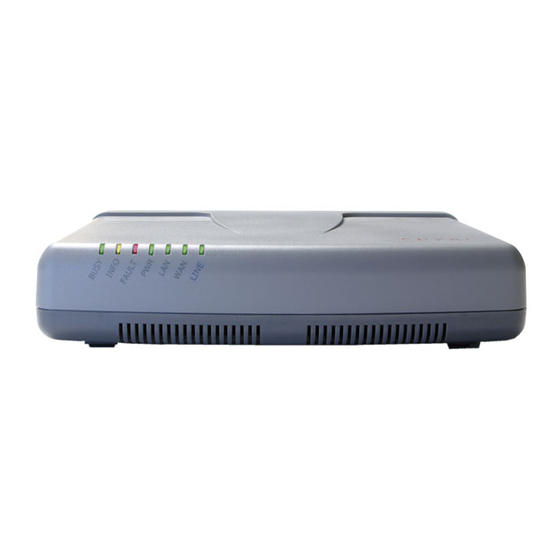

  • Page 4: Quadro's Front Panel Leds

    Epygi Technologies Configuring Quadro with ISDN 4 Quadro’s Front Panel LEDs Fig.2: Quadro's Front Panel LEDs on: one or more (but not all) channels are busy Line1 green Status of ISDN trunks off: all channels are free flickering: at least one of the started...

  • Page 5: Isdn Trunk Configuration Using Ddi

    Epygi Technologies Configuring Quadro with ISDN Fig. 4: ISDN Trunk - Edit page 4. Choose the Interface Type from the same named drop down list. For Quadro 3.1 software, the only selection in this list is the “User” mode. 5. Select the Coding Type according to your ISP settings.
  • Page 6 Epygi Technologies Configuring Quadro with ISDN Hints for the values in the drop down list: 00 - default Auto Attendant, xx – two digit extensions or custom Auto Attendants, Routing – with this selection, caller will connect to the Quadro (pass authentication, if...
  • Page 7 Epygi Technologies Configuring Quadro with ISDN Fig. 7: ISDN Wizard – Page 3 ISDN L3 Timers: • The T302 Timer text field requires the value for the T302 timer in milliseconds (digit values from 0 to 15000) and indicates the time frame system is waiting for digit to be dialed and when timer expires, it initiates the call.

  • Page 8: Isdn Trunk Configuration Using Msn

    Epygi Technologies Configuring Quadro with ISDN • The Bearer Establishment Procedure drop down list allows to select the session initiation method on the B channels. One of the following possibilities of the transmission path completion prior to receipt of a call acceptance indication can be selected: on channel negotiation at the destination interface;...
  • Page 9 Epygi Technologies Configuring Quadro with ISDN 1. Enter ISDN Wizard, by selecting the appropriate trunk from the list and pressing Settings fun ctional button from the ISDN Trunk Settings page toolbar. Fig. 8: ISDN Wizard – P age 1 2. On th fi e rst page of ISDN Wizard, leave the Enable DDI Service checkbox unselected.
  • Page 10 Epygi Technologies Configuring Quadro with ISDN Fig. 9: ISDN Wizard – Page 2 (DDI is disabled) 6. Radi o button selections on this page allow to configure the ISDN bus and to ch oose the MSN configuration: • No other devices are connected to ISDN bus - this selection sh...

  • Page 11: Configuring Routing Rules

    Epygi Technologies Configuring Quadro with ISDN Fig. 11: ISDN Wizard – MSN Service – Add Entry page 7.2. Define the MSN number in the same named text field. The MSN number(s) should be provided by the ISDN provider Please Note:...
  • Page 12 Epygi Technologies Configuring Quadro with ISDN To conf igure Call Routing table for incoming and outgoing ISDN calls, follow the steps below Access Quadro Web Management by the configured IP address and the administrator’s login. Go to Telephony --> Call Routing and press Local Routing Table link to reach th Call Routing table.
  • Page 13 Epygi Technologies Configuring Quadro with ISDN For this certain routing rule, fill in 9* in Pattern field, choose ISDN from Call Type drop down list , fill in some optional description in the Description field and select the Filter on Caller/ Call Type/Modify Caller ID checkbox.
  • Page 14 Epygi Technologies Configuring Quadro with ISDN Fig. 14: Call Routing Wizard – Page 4 10. Verify the route configuration and press Finish to create a routing rule with the defined settings. With the steps above the Route 4 (see Call Routing table above) has been created which allows the extensions 11 to 26 to dial 9* and connect the first ISDN trunk to perform an ISDN call.
  • Page 15 Epygi Technologies Configuring Quadro with ISDN Please Note: This route is only needed if the device has the second ISDN Trunk available. • Route 3: enter 9\*3* into Pattern text field, choose ISDN from Call Type drop down list, select ISDN Trunk2 from Port ID drop down list, insert {11-26} into the Inbound Caller Pattern text field and 56834 in the Inbound Prefix text field.

  • Page 16: References

    Epygi Technologies Configuring Quadro with ISDN • Route 8: enter * into Pattern text field, insert 99 in the Number of Discarded Symbols and 0 0 into Prefix text field, choose PBX from Call Type drop down list, insert * into the Inbound Caller Pattern te xt field and choose ISDN in the Inbound Call Type drop down list.
