Rc7 And Rc7Gs Setup Menu - Trace Engineering RC7 Installation And Operator's Manual

RC7 & RC7GS Remote Controls
3.0 OPERATION
Search Sense:
Default
Auto LBCO
OFF
Bat Capacity:
Auto
Battery Type:
GEL Cell
Charge Rate
100% of max
Set Shore Power
30 Amps
RC7 Setup:
Last Key
LCD Contrast:
Max Contrast
External Shunt:
None
Fuelgauge Cutout:
9.5VDC=0%SOC
Generator Start:
Manual (Push ON)
Generator Stop:
Manual (Push OFF)
Begin Gen Quiet
00:00
End Gen Quiet
00:00
Select Genset:
Onan QuietDiesel
Set Clk: 0-23:59
00:00
Note: The SETTINGS arrow moves across the columns - the UP and DOWN
arrows scroll through the headings.
36

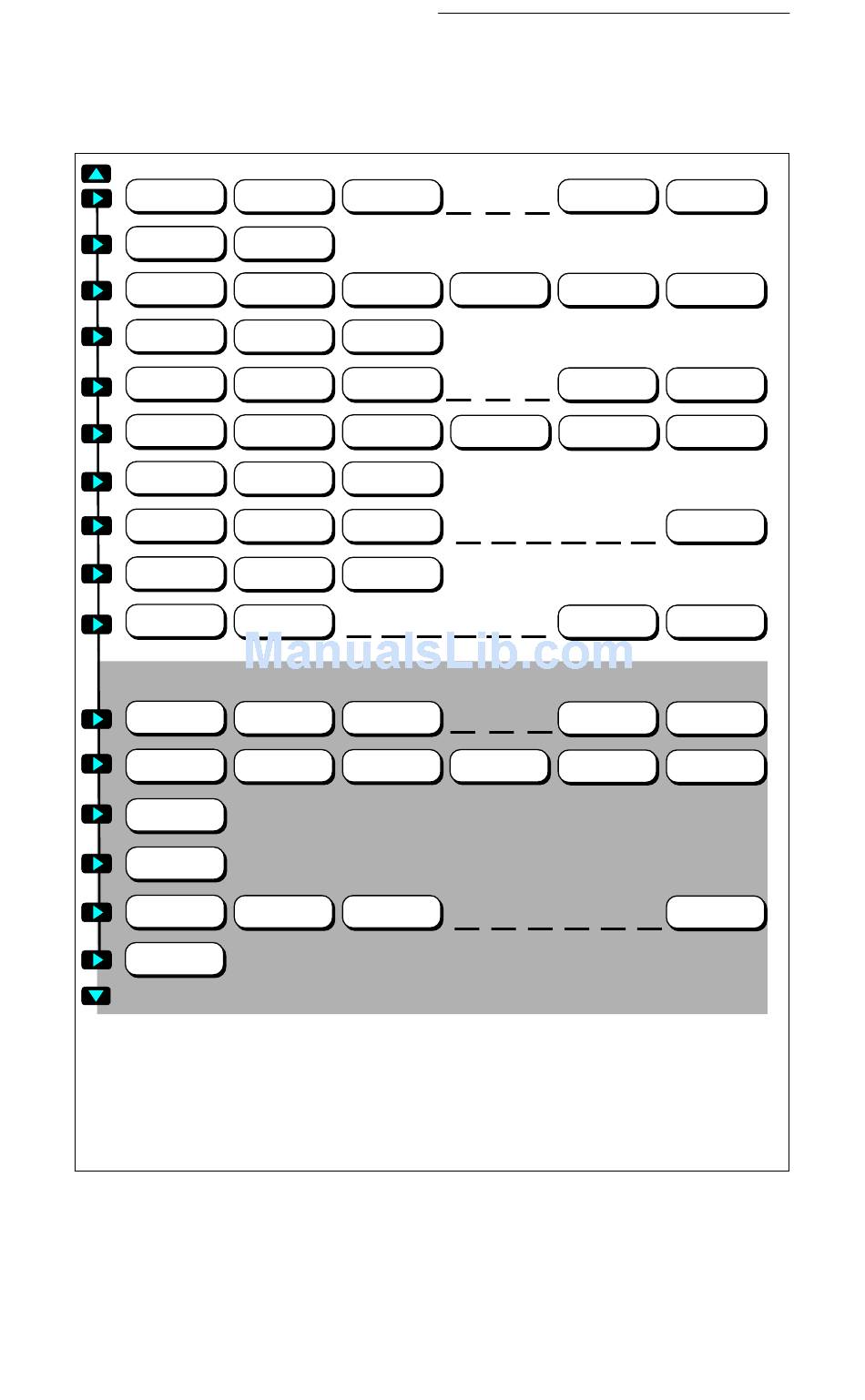

RC7 and RC7GS Setup Menu

Press and hold both menu item keys for 5 seconds
Search Sense: Search Sense:
About 5W load ...10 W load
Auto LBCO
ON
Bat Capacity: Bat Capacity:
125 A-hrs 250 A-hrs
Battery Type: Battery Type:
Liquid Lead Acid AGM
Bat Capacity: Bat Capacity:
90% 80%
Set Shore Power Set Shore Power
25 Amps 20 Amps
RC7 Setup:
RC7 Setup:
Power Saver Rolling Display
LCD Contrast: LCD Contrast:
87% 62%
External Shunt: External Shunt:
This Inverter Other Inverter
Fuelgauge Cutout:
10.3VDC=0%SOC
RC7GS only
Generator Start: Generator Start:
Auto at 40% SOC Auto at 60% SOC
Generator Stop: Generator Stop:
Auto at 90% SOC Auto at 95% SOC
Select Genset:
Select Genset:
PowerTech 2-Wire
PowerTech 3-Wire
Search Sense:
...40 W load
Bat Capacity:
Bat Capacity:
375 A-hrs 500 A-hrs
Bat Capacity:
20%
Set Shore Power Set Shore Power
15 Amps 10 Amps
Fuelgauge Cutout:
11.7VDC=0%SOC
Generator Start:
Auto at 11.0 VDC
Generator Stop:
Generator Stop:
Auto at Absorb
Auto at 99% SOC
1 999 Trace Engineering
ã
Search Sense:
> 40 W load
Bat Capacity:
1000 A-hrs
Bat Capacity:
10%
Set Shore Power
5 Amps
LCD Contrast:
Min Contrast
Fuelgauge Cutout:
11.8VDC=0%SOC
Generator Start:
Auto at 12.2 VDC
Generator Stop:
Auto at Float
Select Genset:
Other 80
