Front Panel

1.

Indicators and Controls

The RC7 and RC7GS front panels contain LEDs, LCD display and push-
buttons for viewing status and system setup. All operating power for the remote
control is provided by the inverter/charger via the supplied cable.

Status LEDs

Inverter (green)
Charge (yellow)
Batt. Full (yellow)
Error (red)
ON/OFF Push-button
Menu Down Push-button
Menu Up Push-button and
Meter Mode
2. Status LEDs
There are four LEDs on the front panel which light solid or flash during
operation, indicating the system's status. Upon initial power-up of the inverter, all
LEDs will flash as the unit goes through a self-test. After the initial power-up test
completes, the LEDs will indicate the current state of the inverter and charger.
Use these LEDs along with the LCD display for detailed system status.
1 999 Trace Engineering
ã
Figure 5

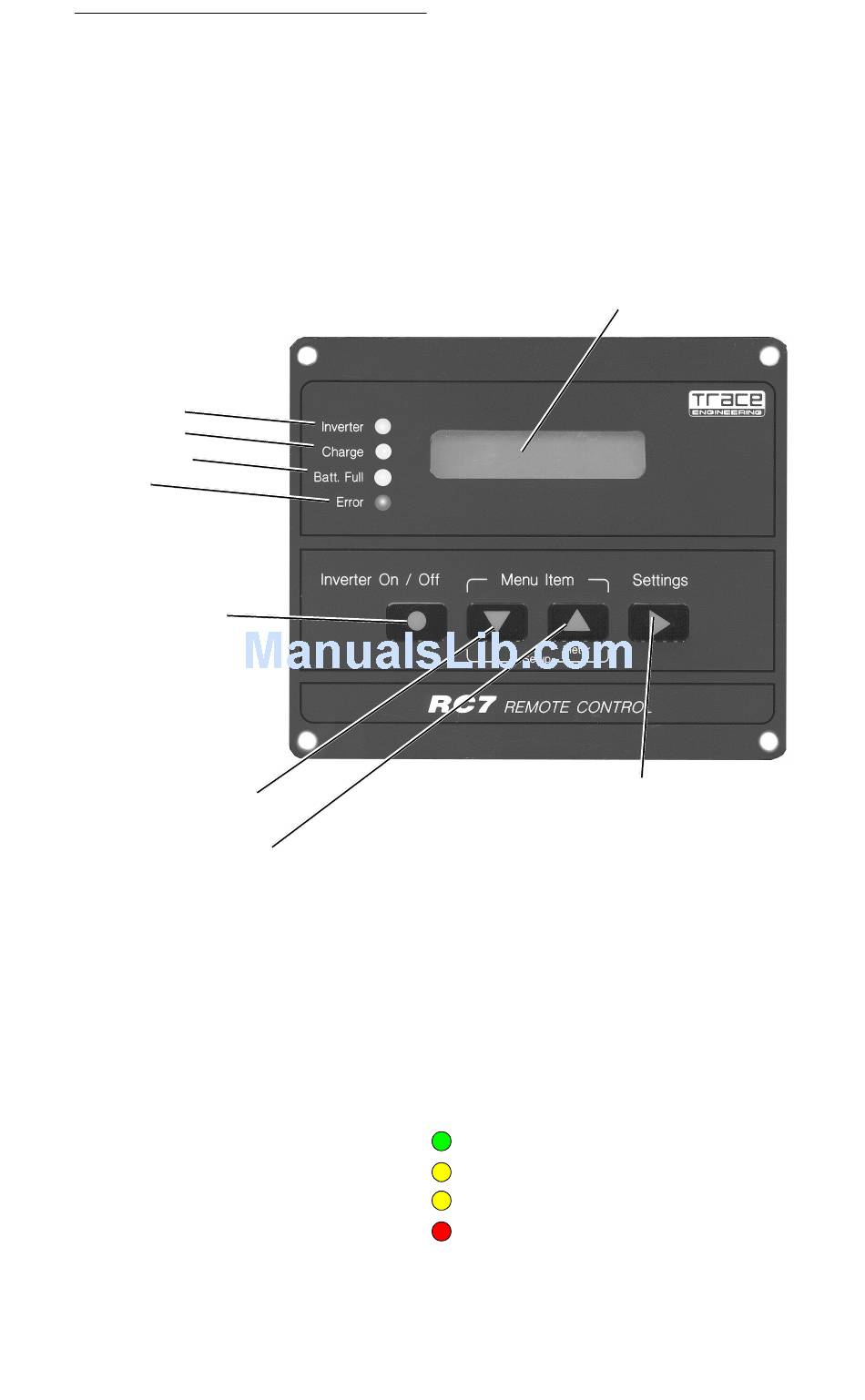

Front Panel Controls and Indicators
Inverter
Charge
Batt. Full
Error
Figure 6
Status LEDs
RC7 & RC7GS Remote Controls
Alphanumeric LCD Display Panel
Settings Selection
Push-button
822-4A-001
