Inverter/Charger Error Messages

Error messages display when a fault is detected with either the inverter or
charger. The red Error LED lights, and the buzzer sounds. Error messages for
the inverter/charger display the error condition as well as a suggested remedy.
1.

Over Temperature

The "Otemp / Less Load" System Status message indicates the inverter/
charger transformer and power components have exceeded a safe operating
temperature. Reduce the load on the inverter. When the unit has cooled, it will
automatically reset and resume operation. If this condition occurs often, make
sure the inverter is in a cool location, has adequate ventilation and the cooling
fan is operational.
Error LED ON
NOTE: Press any arrow push-button to cancel the buzzer.
2.

Overload

The "Overload" System Status message is displayed when the load on the
inverter/charger exceeds the maximum power rating of the unit. Reduce the load
and restart the inverter/charger by pressing the ON/OFF push-button on the RC7
twice.
Error LED ON
NOTE: Press any arrow push-button to cancel the buzzer.
1 999 Trace Engineering
ã
Error Condition
Inverter
Charge
System Status:
Otemp / Less Load
Batt. Full
Error
822-4A-001

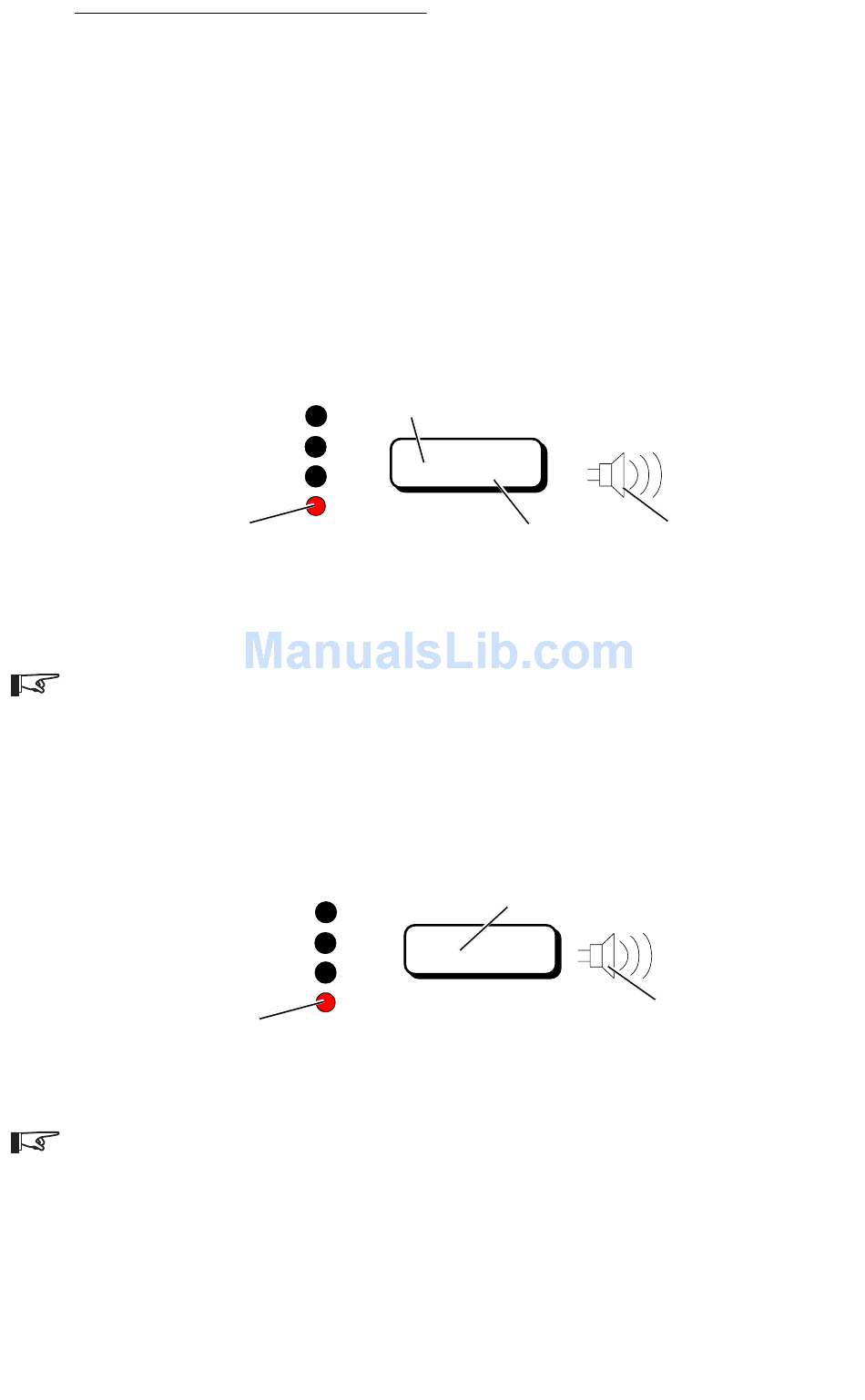

Figure 47
