5.

DCLD Lockout Error

The "DCLD Lockout Err" System Status message is displayed when the
+12 V dc supplied to the "DCLD" input wire of the inverter/charger is lost and the
DCLD feature is activated. In addition, the red Error LED will light and the buzzer
will sound for approximately four minutes.
The DCLD (DC Load Disconnect) feature can be used to shut off the
inverter/charger whenever +12 V dc is not available on this terminal.
NOTE: Older units require a hardware modification to activate this feature. Refer
to the instructions in the upgrade kit for DCLD.
NOTE: The DCLD is not an error or fault with the system. It is an alert, indicating
that the inverter is not running.
Error LED ON
NOTE: Press any arrow push-button to cancel the buzzer.
6.

Charger Fault

The "Charger Fault" System Status message is displayed when an internal
error is detected in the inverter/charger during charging. In addition, the red Error
LED is ON and the buzzer sounds. After 15 minutes, the charge relay
disconnects and the inverter section is shut down. The LCD displays "System
Status: Overload."
This fault indicates there is a hardware failure in the charger circuitry of the
inverter/charger. If this message appears, contact Trace Engineering or the
nearest Service Center.
Error LED ON
NOTE: Press any arrow push-button to cancel the buzzer.
1 999 Trace Engineering
ã
Error Condition
Inverter
Charge
Batt. Full
Error
822-4A-001

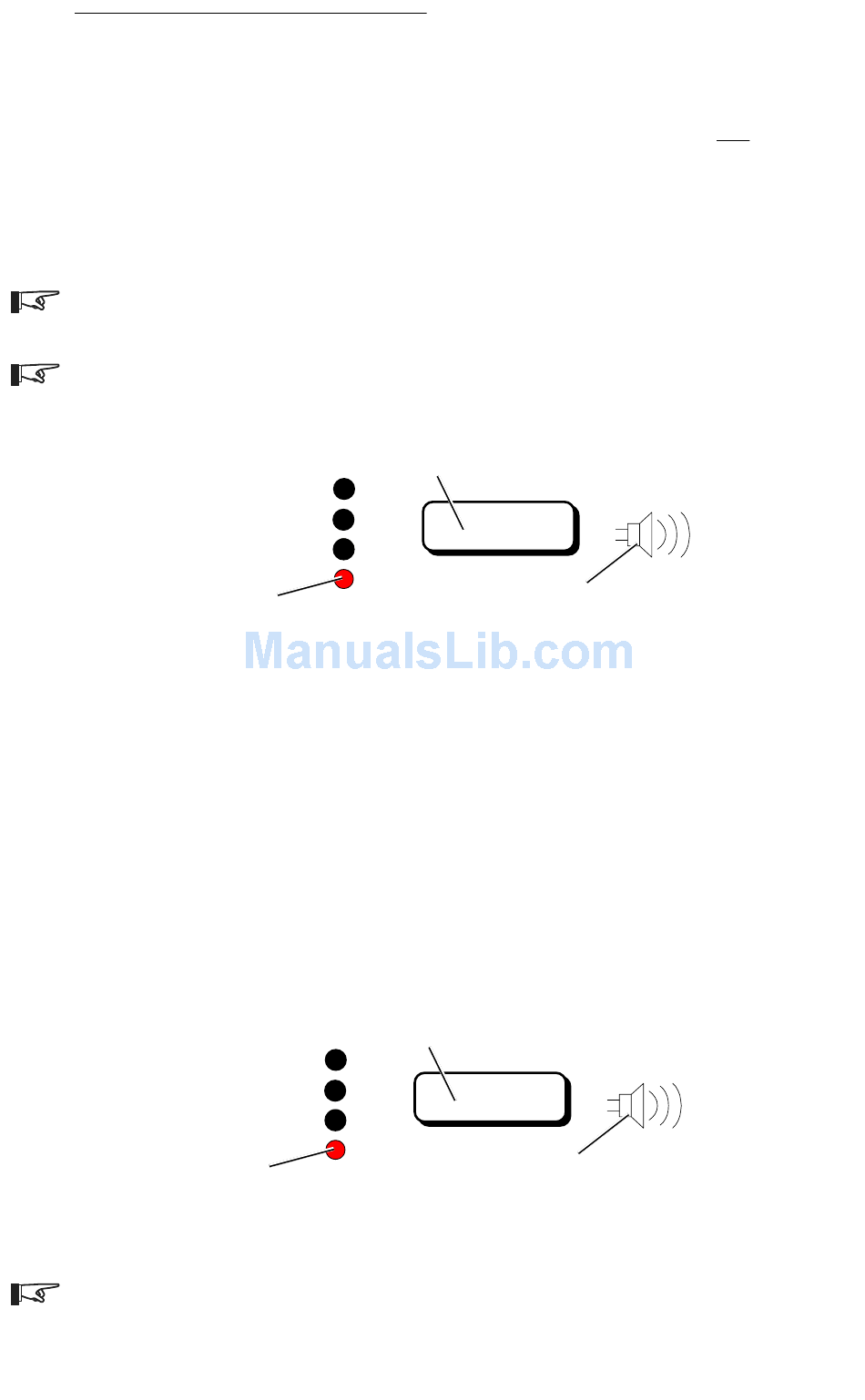

Figure 51
Error Display–DCLD Lockout Error
Error Condition
Inverter
System Status:
Charge
Charger Fault
Batt. Full
Error
822-4A-001
Figure 52
Error Display–Charger Fault
RC7 & RC7GS Remote Controls
System Status:
DCLD Lockout Err
Buzzer Sounds
Buzzer Sounds
3.0 OPERATION
