SPEC

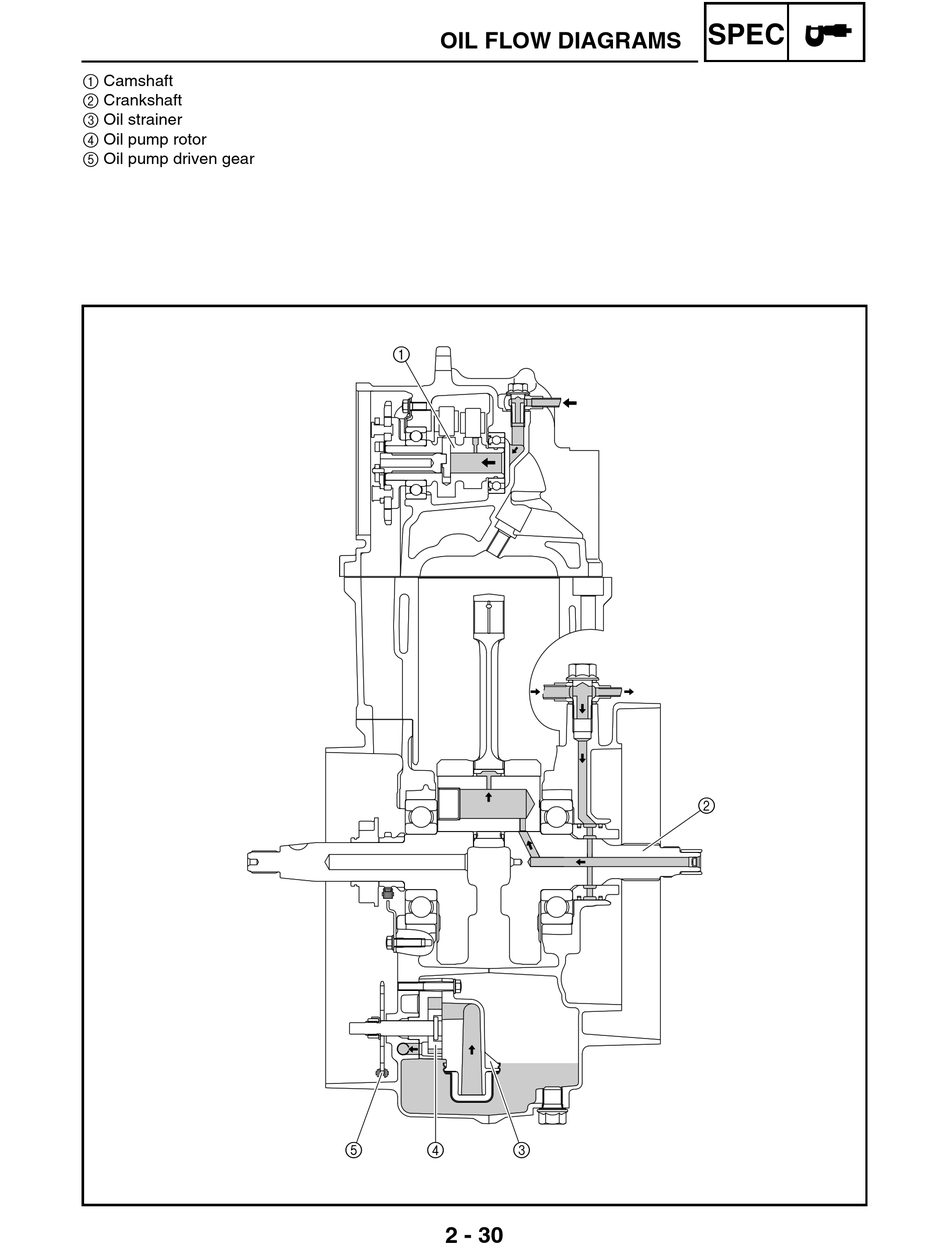

OIL FLOW DIAGRAMS
1 Camshaft
2 Crankshaft
3 Oil strainer
4 Oil pump rotor
5 Oil pump driven gear
1
2
5
4
3
2 - 30
