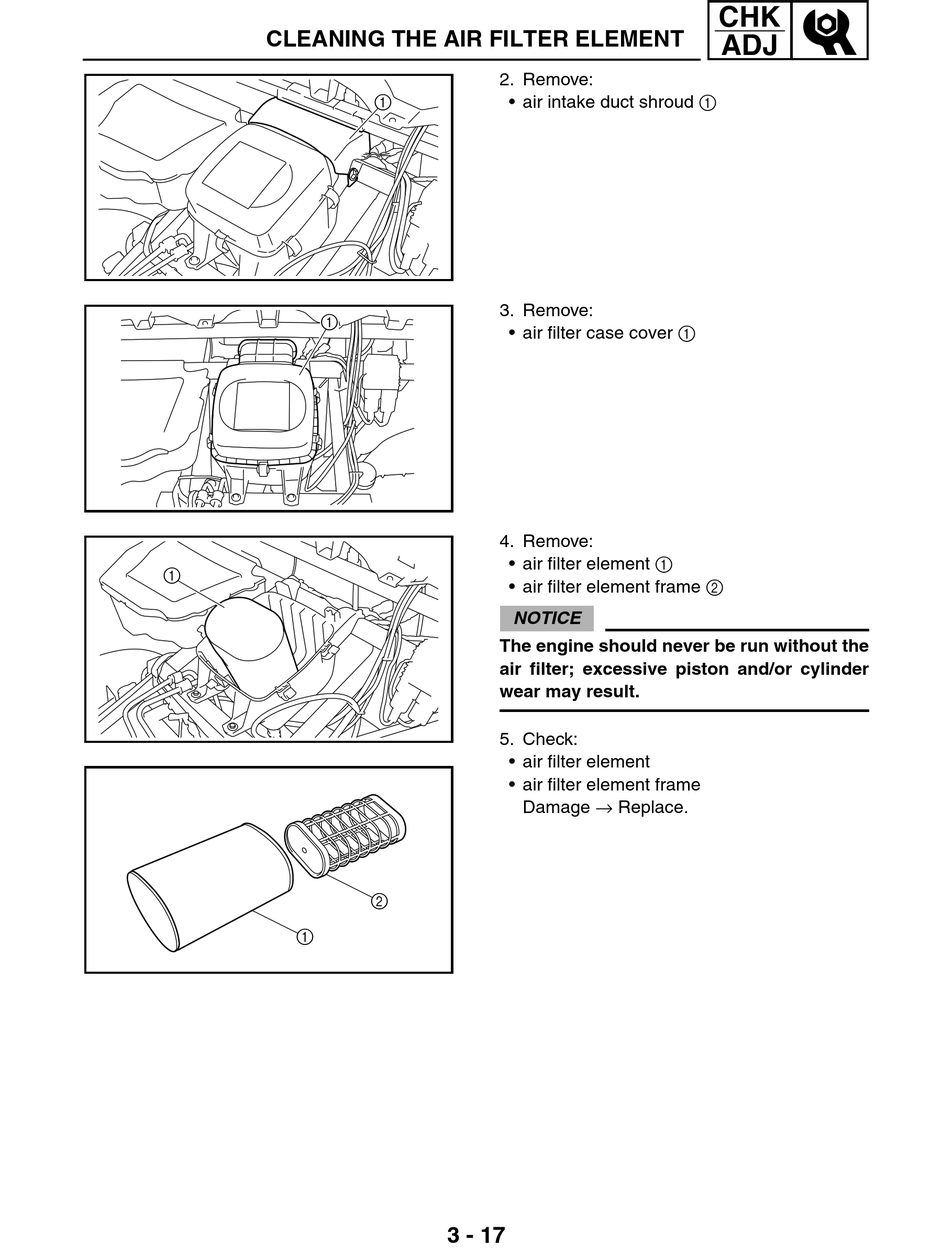

CLEANING THE AIR FILTER ELEMENT
1
1
1
2. Remove:
1
• air intake duct shroud 1
3. Remove:
• air filter case cover 1
4. Remove:
• air filter element 1
• air filter element frame 2
NOTICE
_
The engine should never be run without the
air filter; excessive piston and/or cylinder
wear may result.
5. Check:
• air filter element
• air filter element frame
Damage → Replace.
2
3 - 17
CHK
ADJ
