Yamaha YXR70FX Service Manual page 383

2
New
1
Order

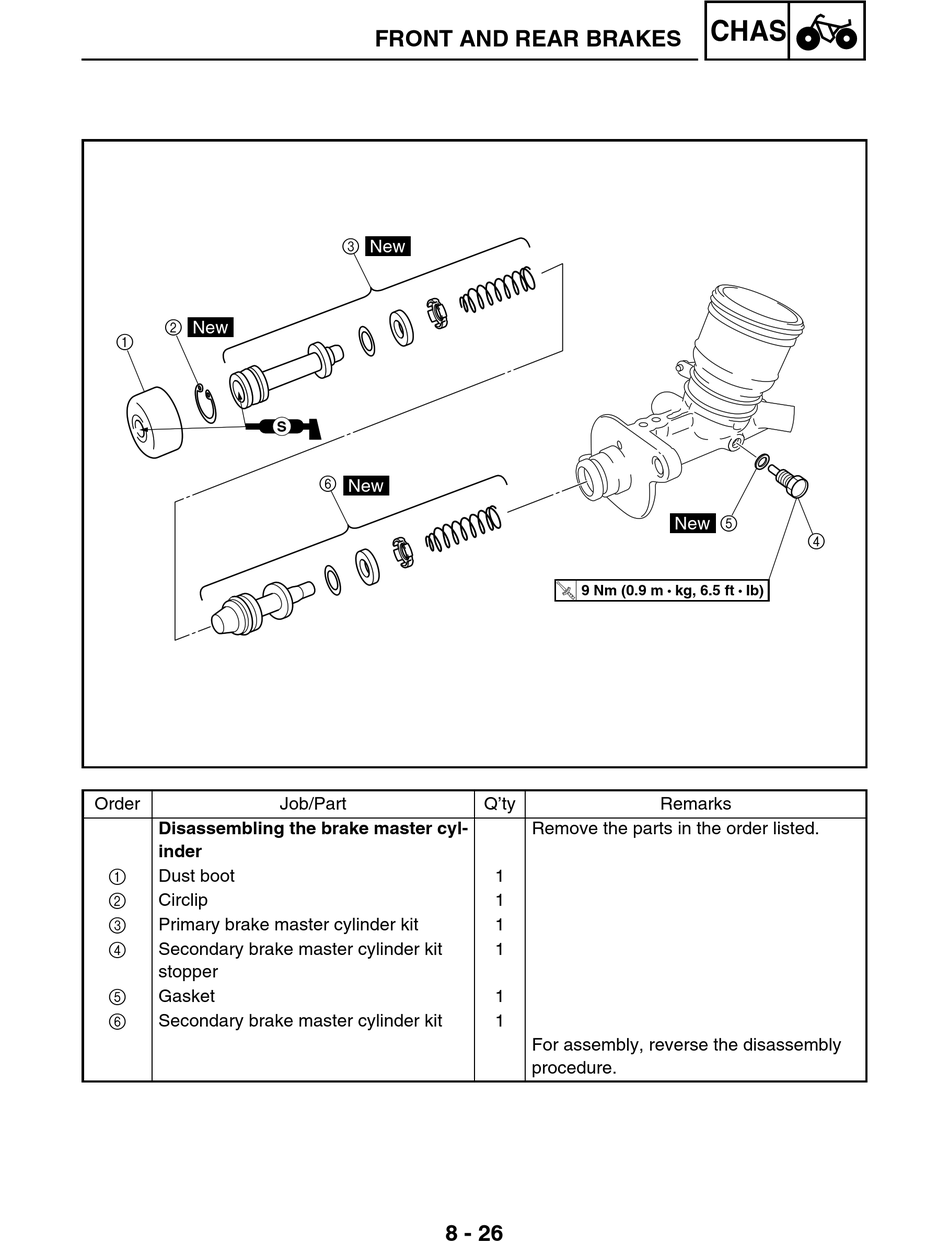

Disassembling the brake master cyl-
inder
1
Dust boot
2
Circlip
3
Primary brake master cylinder kit
4 Secondary brake master cylinder kit
stopper
5
Gasket
6 Secondary brake master cylinder kit
FRONT AND REAR BRAKES
3
New
S
6
New
Job/Part
8 - 26
9 Nm (0.9 m
Q'ty Remarks
Remove the parts in the order listed.
1
1
1
1
1
1
For assembly, reverse the disassembly
procedure.
CHAS
5
New
4
kg, 6.5 ft Ib)
• •
