1

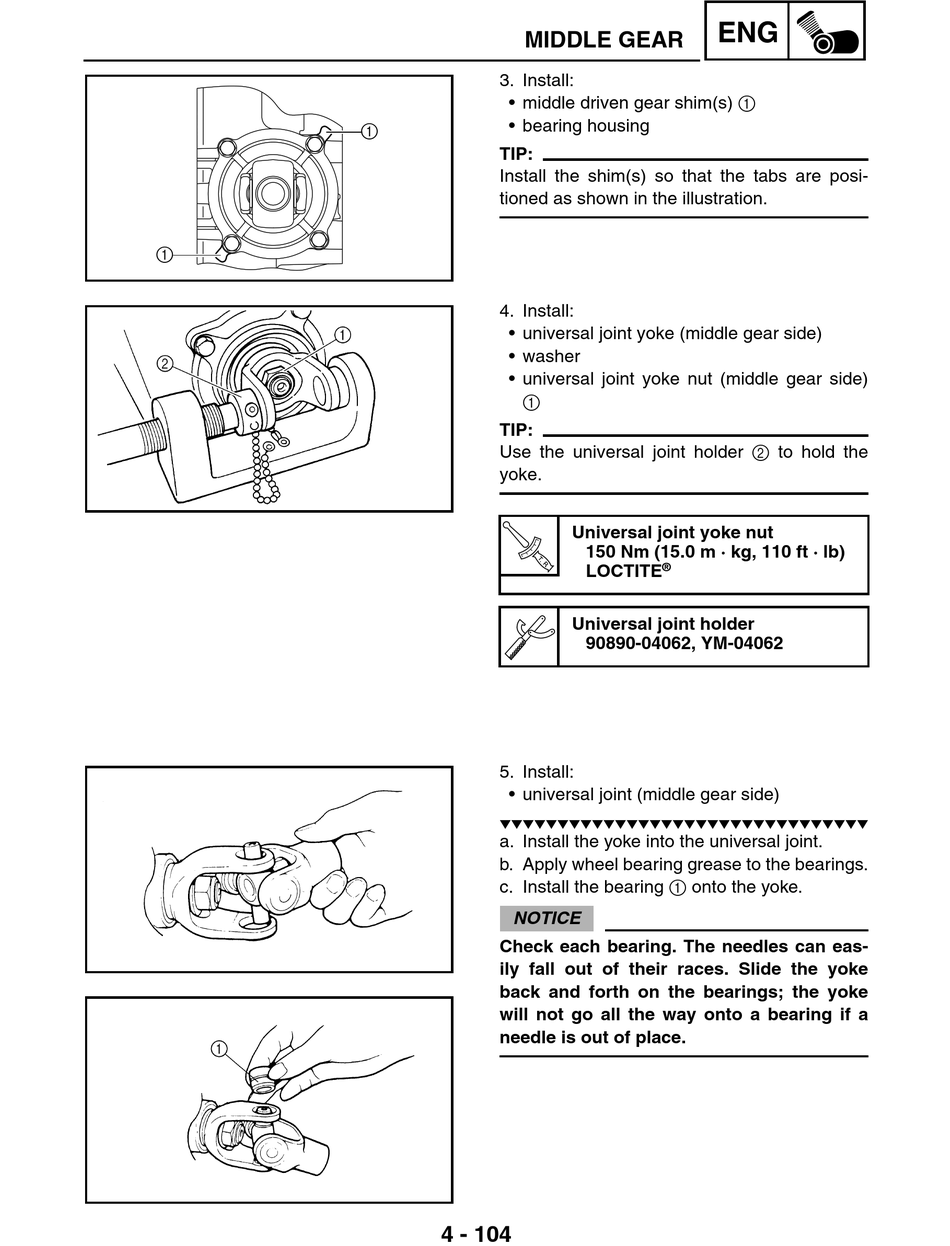

MIDDLE GEAR
3. Install:
• middle driven gear shim(s) 1
• bearing housing
1
TIP:
_
Install the shim(s) so that the tabs are posi-
tioned as shown in the illustration.
4. Install:
• universal joint yoke (middle gear side)
• washer
• universal joint yoke nut (middle gear side)
1
TIP:
Use the universal joint holder 2 to hold the
yoke.
5. Install:
• universal joint (middle gear side)
M MMM
a. Install the yoke into the universal joint.
b. Apply wheel bearing grease to the bearings.
c. Install the bearing 1 onto the yoke.
NOTICE
Check each bearing. The needles can eas-
ily fall out of their races. Slide the yoke
back and forth on the bearings; the yoke
will not go all the way onto a bearing if a
needle is out of place.
4 - 104
ENG
Universal joint yoke nut
150 Nm (15.0 m · kg, 110 ft · lb)
®
LOCTITE
Universal joint holder
90890-04062, YM-04062
M MMM M M MMM M M MMM M M MMM M M MMM M MMM
