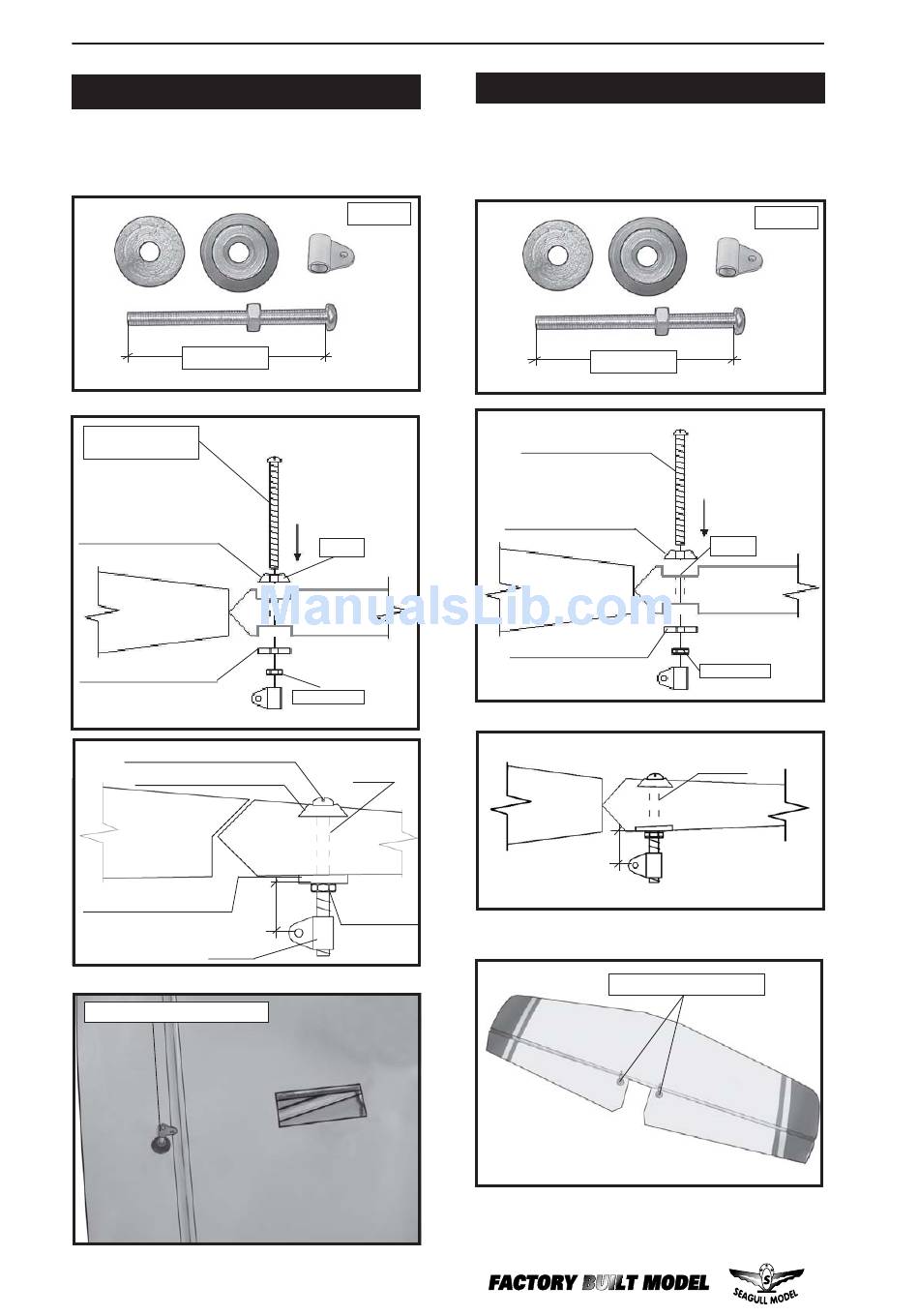

RYAN NAVION
FLAP CONTROL HORN.
Install the flap control horn using the same
method as with the aileron control horns.
3x40mm.
CONTROL HORN
M3 SCREW.
Aluminum Washer.
Wing.
Aluminum Washer.
CONTROL HORN M3 SCREW
Aluminum Washer.
Wing.
Aluminum Washer.
18mm.
Epoxy.
Flap control horn .
6
2 sets.
Epoxy.
Flap
.
.
M3 LOCK NUT
.
Epoxy.
Flap
.
M3 lock nut.
Instruction Manual.
ELEVATOR CONTROL HORN.
Install the elevator control horn using the
same method as with the aileron control
horns.
3x40mm.
CONTROL HORN M3
Aluminum Washer.
Horizontal
Stabilizer.
Aluminum Washer.
Horizontal
Stabilizer.
18mm
.
Elevator control horn.
2 sets.
.
Epoxy
Elevator.
.
M3 LOCK NUT
Epoxy.
Elevator.
