Instrument Overview

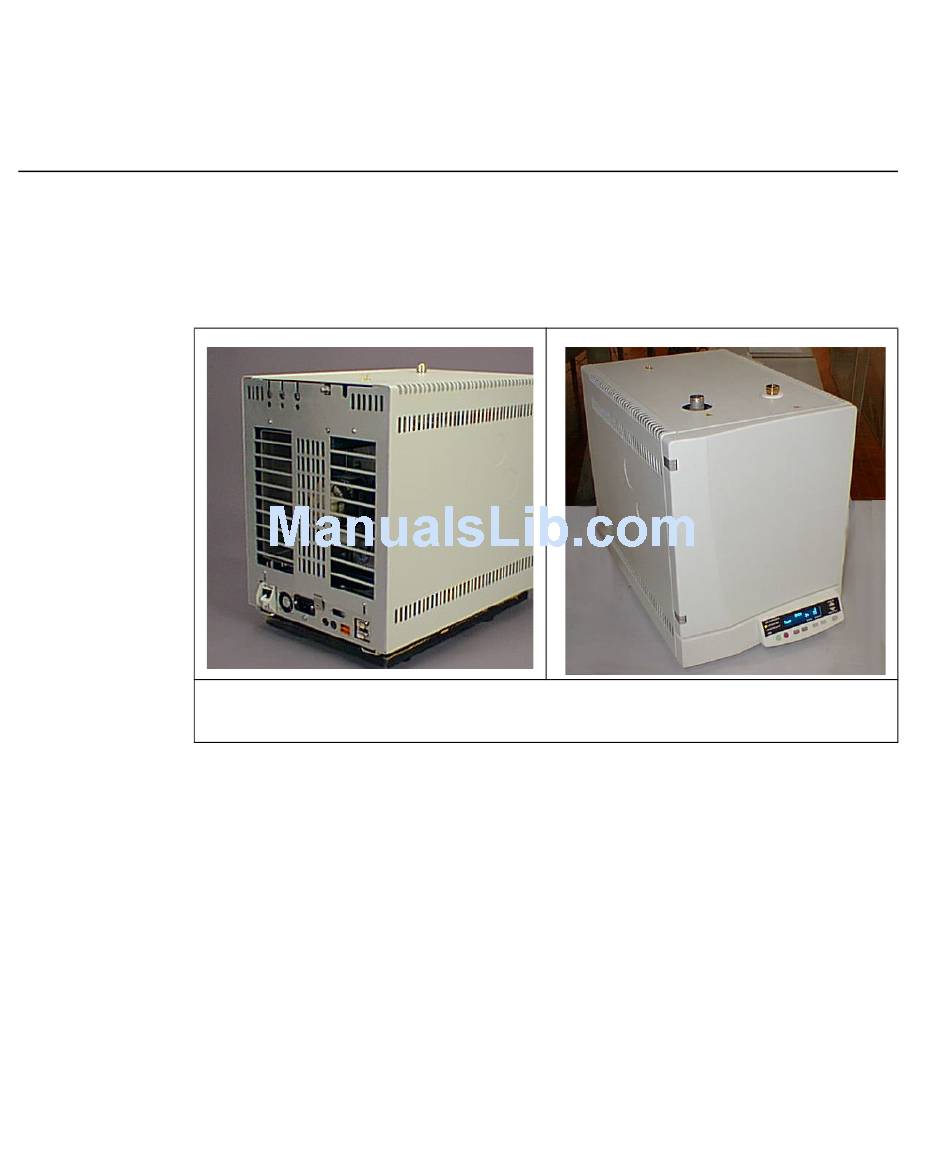

The FOCUS GC consists of four major components, as shown in
Figure 1-1.

FOCUS GC Components

Pneumatic Compartment

The pneumatic compartment contains the pneumatic gas control circuits. The
carrier gas control circuit is completely electronic (digital pneumatics), while the
detector gas control circuit is conventional (analog pneumatics)

Analytical Unit

The analytical unit consists of two subcompartments:
•
•
26
1
3
1. Pneumatic Compartment
2. Analytical Unit
the column oven
the injector and detector compartment
3. Electronic Compartment
4. Status Panel and Keyboard
Figure 1-1. FOCUS GC Components
Instrument Overview
2
3 4
Instruction Manual
