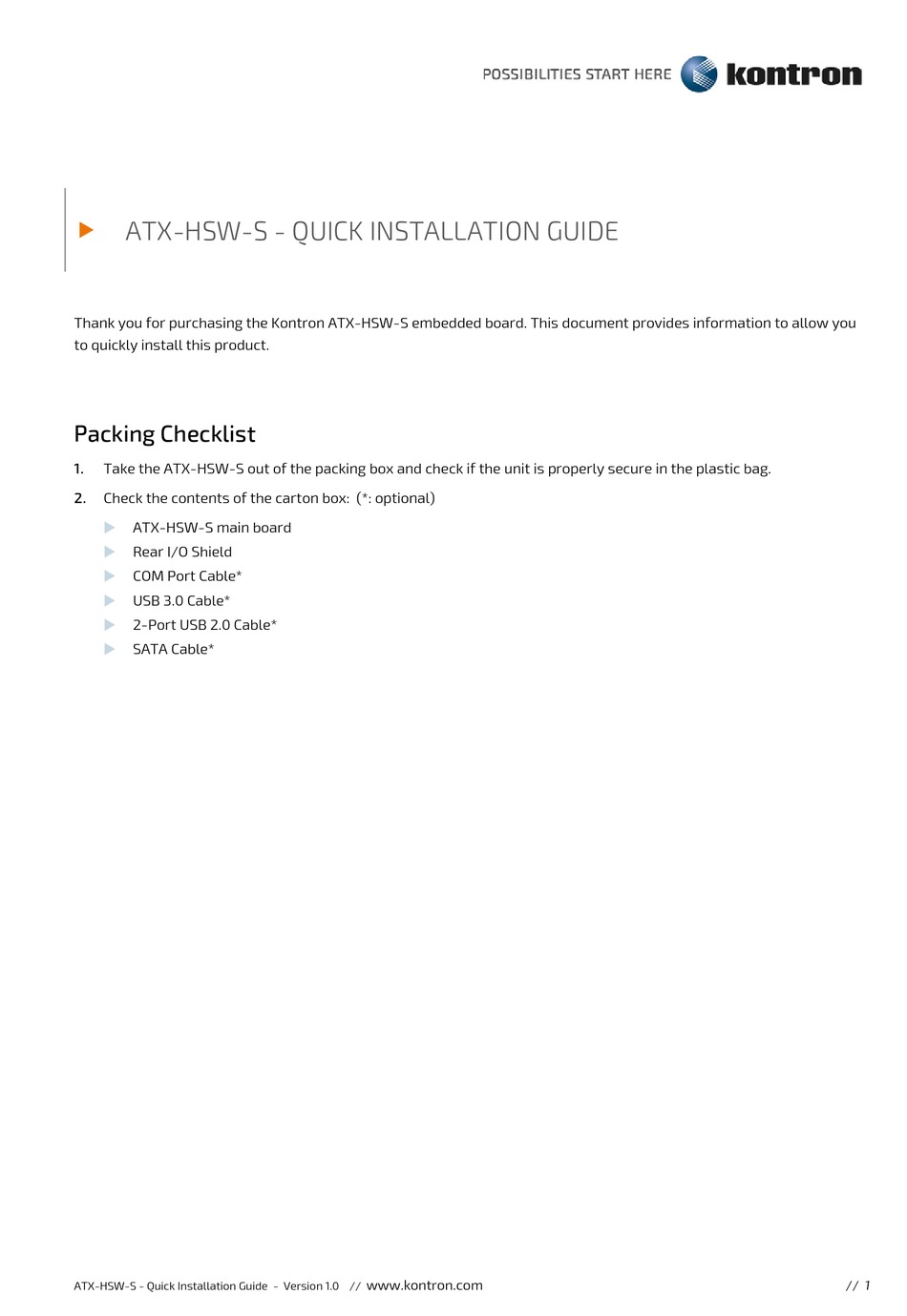

ATX-HSW-S - QUICK INSTALLATION GUIDE
Thank you for purchasing the Kontron ATX-HSW-S embedded board. This document provides information to allow you
to quickly install this product.
Packing Checklist
1.
Take the ATX-HSW-S out of the packing box and check if the unit is properly secure in the plastic bag.
2.
Check the contents of the carton box: (*: optional)

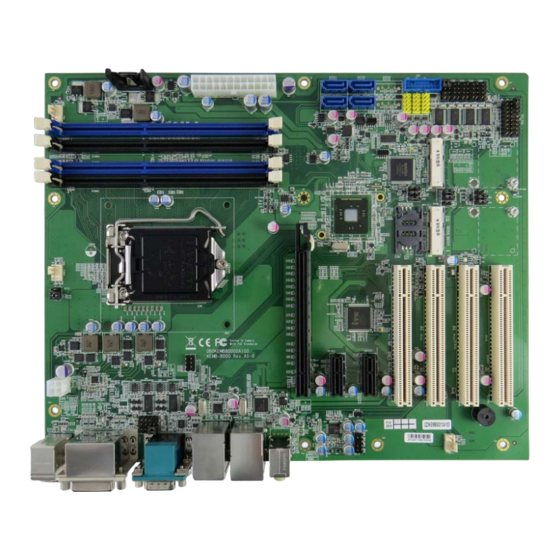

ATX-HSW-S main board
Rear I/O Shield
COM Port Cable*
USB 3.0 Cable*
2-Port USB 2.0 Cable*
SATA Cable*
ATX-HSW-S - Quick Installation Guide - Version 1.0 //
www.kontron.com
// 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATX-HSW-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kontron ATX-HSW-S

  • Page 1 Thank you for purchasing the Kontron ATX-HSW-S embedded board. This document provides information to allow you to quickly install this product. Packing Checklist Take the ATX-HSW-S out of the packing box and check if the unit is properly secure in the plastic bag. Check the contents of the carton box: (*: optional) ...
  • Page 2: Jumper And Internal Connector Locations

    Terminator Selection for COM1 JP12 Terminator Selection for COM2 JP13 Flash Descriptor Security Override Selection JP14 Pin-9 Selection for COM1 & COM2 JP15 PCIE Configuration Setting for PEG1 www.kontron.com // 2 ATX-HSW-S - Quick Installation Guide - Version 1.0 //...
  • Page 3 Serial ATA Port-1 Connector SATA3 Serial ATA Port-2 Connector (Q87 model only) SATA4 Serial ATA Port-3 Connector (Q87 model only) SATA5 Serial ATA Port-4 Connector (H81 model only) www.kontron.com // 3 ATX-HSW-S - Quick Installation Guide - Version 1.0 //...
  • Page 4 Item Designation Description SATA6 Serial ATA Port-5 Connector (H81 model only) SIM1 SIM Card Holder for MPCIE1 www.kontron.com // 4 ATX-HSW-S - Quick Installation Guide - Version 1.0 //...
  • Page 5: Jumper Settings

     Keyboard Lock Selection (JP2) Jumper 1 Position Description Pin 1-2 Pin 2-3 Normal Keyboard Locked “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 5 ATX-HSW-S - Quick Installation Guide - Version 1.0 //...
  • Page 6 / mSATA Selection for MPCIE2 & MPCIE1 (JP6 & JP9) (only for models with Intel® Q87 Chipset) Jumper 1 Position Description Pin 1-2 Pin 2-3 mSATA mPCIE “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 6 ATX-HSW-S - Quick Installation Guide - Version 1.0 //...
  • Page 7 Jumper Position Description Pin 1-2 Security Measures Defined by BIOS are Over-written Security Measures Defined are Set “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 7 ATX-HSW-S - Quick Installation Guide - Version 1.0 //...
  • Page 8 Description Pin 1-3 Pin 3-5 Pin 2-4 Pin 4-6 X8 x8 X8 x4 X8 x4 x4 “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 8 ATX-HSW-S - Quick Installation Guide - Version 1.0 //...
  • Page 9: Real I/O Panel Connector Locations

    GbE LAN1 & USB3.0 Port-0, 1 Connector CN15 DVI-D Connector CN16 Line-Out & Mic-In Audio Jacks CN17 PS/2 Keyboard & Mouse Mini-DIN Connector CN18 DisplayPort Connector CN19 VGA & RS-232/422/485 COM1 Connector www.kontron.com // 9 ATX-HSW-S - Quick Installation Guide - Version 1.0 //...
