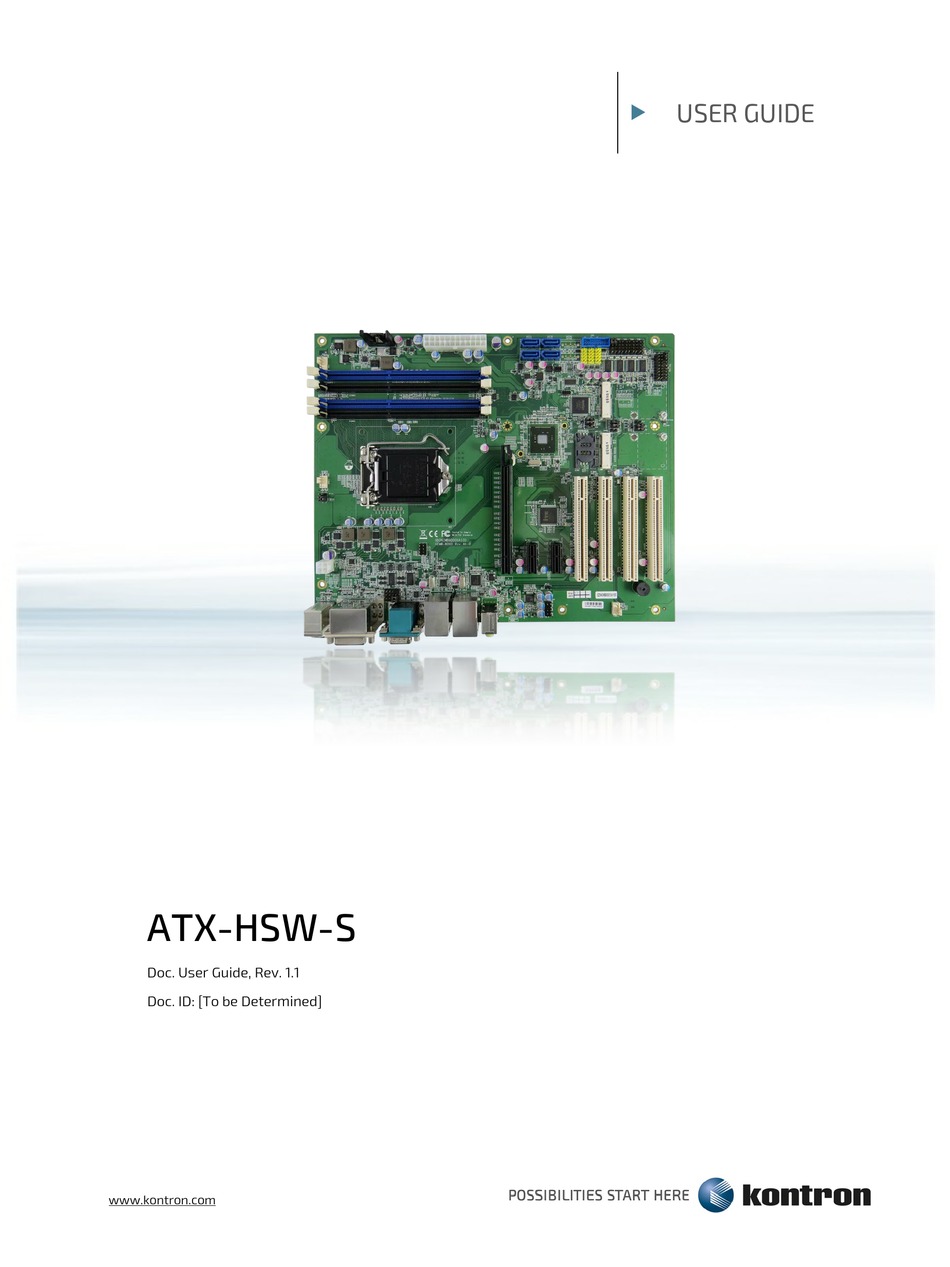

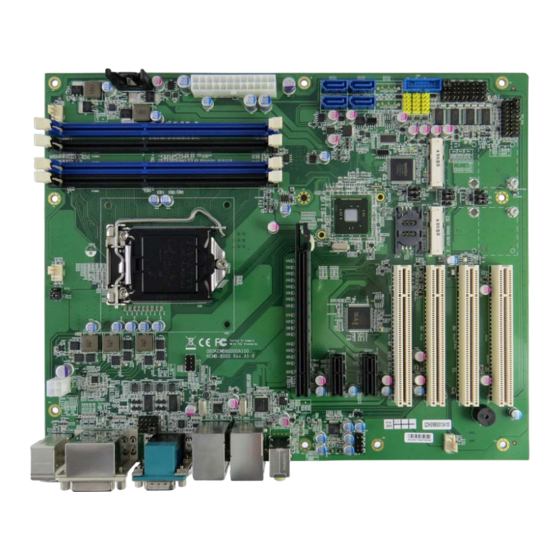

USER GUIDE
ATX-HSW-S
Doc. User Guide, Rev. 1.1
Doc. ID: [To be Determined]
www.kontron.com
// 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATX-HSW-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kontron ATX-HSW-S

Summary of Contents for Kontron ATX-HSW-S

  • Page 1  USER GUIDE ATX-HSW-S Doc. User Guide, Rev. 1.1 Doc. ID: [To be Determined] www.kontron.com // 1...
  • Page 2 ATX-HSW-S - User Guide, Rev. 1.1 This page has been intentionally left blank www.kontron.com // 2...
  • Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
  • Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
  • Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.

  • Page 6: Symbols

    ATX-HSW-S - User Guide, Rev. 1.1 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 7: For Your Safety

    Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.

  • Page 8: Lithium Battery Precautions

    General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty.

  • Page 9: Table Of Contents

    ATX-HSW-S - User Guide, Rev. 1.1 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management ..............................

  • Page 10: List Of Tables

    ATX-HSW-S - User Guide, Rev. 1.1 7.4. USB Connectors (Internal) (CN1, CN6, CN7 & CN8) ........................42 7.5. Front Panel Audio Pin Header (CN14) ..............................44 7.6. Front Panel Pin Header (FP1 & FP2) ..............................45 7.7. Serial COM2 - COM6 Ports (CN11, CN2, CN3, CN4 & CN5) ......................47 7.8.

  • Page 11: List Of Figures

    Table 58: Main Setup Menu Sub-Screens and Functions ........................69 Table 59: List of Acronyms ................................... 96 List of Figures Figure 1: System Block Diagram ATX-HSW-S............................18 Figure 2: Top Side ......................................23 Figure 3: Connector Panel Side ................................... 26 Figure 4: DP Connector CN18 ..................................
  • Page 12 ATX-HSW-S - User Guide, Rev. 1.1 Figure 10: USB 2.0 High Speed Cable ................................. 33 Figure 11: USB 3.0 High Speed Cable ................................33 Figure 12: Serial COM1 Port CN19 - Top ..............................34 Figure 13: Audio Jack CN16 .................................... 36 Figure 14: PS/2 Keyboard &...
  • Page 13 ATX-HSW-S - User Guide, Rev. 1.1 www.kontron.com // 13...

  • Page 14: 1/ Introduction

    ATX-HSW-S - User Guide, Rev. 1.1 1/ Introduction This user guide describe the ATX-HSW-S board made by Kontron. This board will also be denoted ATX-HSW-S within this user guide. Use of this user guide implies a basic knowledge of PC-AT hardware and software. This user guide focuses on describing the ATX-HSW-S board's special features and is not intended to be a standard PC-AT textbook.

  • Page 15: 2/ Installation Procedures

     Handle the board only by the edges To get the board running follow these steps. If the board shipped from KONTRON already has components like RAM and CPU cooler mounted, then skip the relevant steps below. Turn off the PSU (Power Supply Unit) Turn off PSU (Power Supply Unit) completely (no mains power connected to the PSU) or leave the Power Connectors unconnected while configuring the board.

  • Page 16: Chassis Safety Standards

    > 7 mm. Do not use washers with teeth, as they can damage the PCB and cause short circuits. 2.2. Chassis Safety Standards Before installing the ATX-HSW-S in the chassis, users must evaluate the end product to ensure compliance with the requirements of the IEC60950-1 safety standard: ...
  • Page 17 ATX-HSW-S - User Guide, Rev. 1.1  Levér det brugte batteri tilbage til leverandøren ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri.  Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten  Brukte batterier kasseres i henhold til fabrikantens instruksjoner VARNING! Explosionsfara vid felaktigt batteribyte.

  • Page 18: 3/ System Specifications

    ATX-HSW-S - User Guide, Rev. 1.1 3/ System Specifications 3.1. System Block Diagram Figure 1: System Block Diagram ATX-HSW-S www.kontron.com // 18...

  • Page 19: Component Main Data

    ATX-HSW-S - User Guide, Rev. 1.1 3.2. Component Main Data The table below summarizes the features of the ATX-HSW-S motherboard. Table 1: Component Main Data System Processor 4th Gen Intel® Core™ / Celeron® S-Series Processors (FCLGA1150 Socket) Chipset  Intel® Q87 ...

  • Page 20: Environmental Conditions

    Humidity 0 % ~ 95 % 3.4. Processor Support The ATX-HSW-S is designed to support the following processors which are connected to a discrete Intel® H81 or Q87 Chipset Platform Controller Hub on the motherboard.  Intel® Core i7, i5, i3 & Celeron® processors (FCLGA1150 Socket) Sufficient cooling must be applied to the CPU in order to remove the effect defined as TDP (Thermal Design Power).

  • Page 21: Memory Operating Frequencies

    Memory modules have in general a much lower longevity than embedded motherboards, and therefore EOL of modules can be expected several times during lifetime of the motherboard. As a minimum it is recommend using Kontron memory modules for prototype system(s) in order to prove stability of the system and as for reference.

  • Page 22: Power Supply

    ATX-HSW-S - User Guide, Rev. 1.1 3.7. Power Supply In order to ensure safe operation of the board, the input power supply must monitor the supply voltage and shut down if the supply is out of range – refer to the actual power supply specification. Please note, in order to keep the power consumption to a minimal level, boards do not implement a guaranteed minimum load.

  • Page 23: 4/ Connector Locations

    ATX-HSW-S - User Guide, Rev. 1.1 4/ Connector Locations 4.1. Top Side Figure 2: Top Side 43 38 39 33 40 Table 6: Jumper List Item Designation Description See Chapter Pin-9 Selection for COM3 & COM4 7.15.1 Keyboard Lock Selection 7.15.2...

  • Page 24: Table 7: Top Side Internal Connector Pin Assignment

    ATX-HSW-S - User Guide, Rev. 1.1 Item Designation Description See Chapter JP15 PCIE Configuration Setting for PEG1 7.15.10 Table 7: Top Side Internal Connector Pin Assignment Item Designation Description See Chapter ATX1 2x12-pin ATX Power Supply Wafer 7.1.1 ATX2 2x2-pin ATX Power Supply Wafer 7.1.2...
  • Page 25 ATX-HSW-S - User Guide, Rev. 1.1 Item Designation Description See Chapter SIM1 SIM Card Holder for MPCIE1 7.10 www.kontron.com // 25...

  • Page 26: Connector Panel Side

    ATX-HSW-S - User Guide, Rev. 1.1 4.2. Connector Panel Side Figure 3: Connector Panel Side Table 8: Connector Panel Side Connector List Item Designation Description See Chapter CN12 GbE LAN2 & USB2.0 Port-8, 9 Connector 6.4 & 6.5 CN13 GbE LAN1 & USB3.0 Port-0, 1 Connector 6.4 &...

  • Page 27: 5/ Connector Definitions

    ATX-HSW-S - User Guide, Rev. 1.1 5/ Connector Definitions The following defined terms are used within this user guide to give more information concerning the pin assignment and to describe the connector's signals. Defined Term Description Shows the pin numbers in the connector...

  • Page 28: 6/ I/O-Area Connectors

    ATX-HSW-S - User Guide, Rev. 1.1 6/ I/O-Area Connectors 6.1. DP Connector (CN18) The DP (DisplayPort) connector is based on standard DP female port. Figure 4: DP Connector CN18 Table 9: Pin Assignment DP Connector CN18 Signal Description Note TX0+...

  • Page 29: Dvi-D Connector (Cn15)

    ATX-HSW-S - User Guide, Rev. 1.1 6.2. DVI-D Connector (CN15) The external I/O connector panel supports one DVI-D female port. Figure 5: DVI-D Connector CN15 Table 10: Pin Assignment DVI-D Connector CN15 Signal Description Note TX2- TX2+ DDC_CLK DDC_DATA TX1-...

  • Page 30: Vga Connector (Cn19 - Bottom)

    ATX-HSW-S - User Guide, Rev. 1.1 6.3. VGA Connector (CN19 - Bottom) The external I/O connector panel supports one DB-15 VGA female port. Figure 6: VGA Connector CN19 - Bottom Table 11: Pin Assignment VGA Connector CN19 - Bottom Signal...

  • Page 31: Ethernet Connectors (Cn13 - Lan1 & Cn12 - Lan2)

    ATX-HSW-S - User Guide, Rev. 1.1 6.4. Ethernet Connectors (CN13 - LAN1 & CN12 - LAN2) The ATX-HSW-S supports two channels of 10/100/1000 Mbit Ethernet, which are based Intel® I217-LM and Intel® I210-AT controllers. In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100 MByte and Category 5E, 6 or 6E with 1 Gbit LAN networks.

  • Page 32: Usb Connectors (I/O Area)

    ATX-HSW-S - User Guide, Rev. 1.1 6.5. USB Connectors (I/O Area) The external I/O connector panel supports one dual USB 3.0 connector and one dual USB 2.0 connector. USB3.0 ports are backward compatible with USB2.0. Figure 8: USB 3.0 Connectors CN13 - USB 3.0 Port 0, 1 Table 13: Pin Assignment USB3.0 Connector CN13 - USB 3.0 Port 0, 1...

  • Page 33: Table 15: Signal Description

    ATX-HSW-S - User Guide, Rev. 1.1 Signal Note USB_B- USB 2.0 Differential Pair (-) USB_B+ USB 2.0 Differential Pair (+) Table 15: Signal Description Signal Description USB3_SSTX+, USB3_SSTX-, Differential pair works as serial differential receive/transmit data lines. USB3_SSRX+, USB3_SSRX-, USB_A-, USB_A-, USB_B-,...

  • Page 34: Serial Com1 Port (Cn19 - Top)

    ATX-HSW-S - User Guide, Rev. 1.1 6.6. Serial COM1 Port (CN19 - Top) The external I/O connector panel supports one DB-9 RS-232/422/485 COM male port. Figure 12: Serial COM1 Port CN19 - Top Table 16: Pin Assignment Serial COM1 Port CN19 - Top...
  • Page 35 ATX-HSW-S - User Guide, Rev. 1.1 Signal Description Data Carrier Detect, indicates that the modem or data set has detected the data carrier. Ring Indicator, indicates that the modem has received a ringing signal from the telephone line. TX+/- Transmitted Data differential pair sends data to the communications link.

  • Page 36: Audio Jack (Cn16)

    ATX-HSW-S - User Guide, Rev. 1.1 6.7. Audio Jack (CN16) The external I/O connector panel supports one 3.5 mm dual-port Azalia audio phone jack for headset and microphone. Figure 13: Audio Jack CN16 Table 18: Pin Assignment Audio Jack CN16...

  • Page 37: Ps/2 Keyboard & Mouse Mini-Din Connector (Cn17)

    ATX-HSW-S - User Guide, Rev. 1.1 6.8. PS/2 Keyboard & Mouse Mini-DIN Connector (CN17) The external I/O connector panel supports one dual-port PS/2 keyboard & mouse Mini-DIN connector. Figure 14: PS/2 Keyboard & Mouse Mini-DIN Connector CN17 Table 19: Pin Assignment PS/2 Keyboard & Mouse Mini-DIN Connector CN17...

  • Page 38: 7/ Internal Connectors

    ATX-HSW-S - User Guide, Rev. 1.1 7/ Internal Connectors 7.1. Power Connector Power connector must be used to supply the board with ATX power supply. Hot plugging any of the power connector is not allowed. Hot plugging might damage the board. In other words, turn off main supply etc. to make sure all the power lines are turned off when connecting to the motherboard.

  • Page 39: 2X2-Pin Atx Power Supply Wafer (Atx2)

    ATX-HSW-S - User Guide, Rev. 1.1 Signal Description Ground Power -5 V Power +5 V Power +5 V Power +5 V Ground 7.1.2. 2x2-pin ATX Power Supply Wafer (ATX2) Figure 16: 2x2-pin ATX Power Supply Wafer ATX2 Table 21: Pin Assignment ATX2...

  • Page 40: Fan Wafers (Fan1, Fan2 & Fan3)

    ATX-HSW-S - User Guide, Rev. 1.1 7.2. Fan Wafers (FAN1, FAN2 & FAN3) The CPU FAN Wafer (FAN2) is used for the connection of the FAN for the CPU while the System FAN Wafer (FAN1) and AUX FAN Wafer (FAN3) for the connection of the FAN for the system.

  • Page 41: Sata (Serial Ata) Disk Interfaces (Sata1, Sata2, Sata3, Sata4, Sata5 & Sata6)

    ATX-HSW-S - User Guide, Rev. 1.1 7.3. SATA (Serial ATA) Disk Interfaces (SATA1, SATA2, SATA3, SATA4, SATA5 & SATA6) The SATA Port 0, Port 1, Port 2, Port 3, Port 4 & Port 5 connectors (SATA1, SATA2, SATA3, SATA4, SATA5 & SATA6) supply the data connection for the SATA hard disks.

  • Page 42: Usb Connectors (Internal) (Cn1, Cn6, Cn7 & Cn8)

    ATX-HSW-S - User Guide, Rev. 1.1 7.4. USB Connectors (Internal) (CN1, CN6, CN7 & CN8) USB 3.0 Port 4 and Port 5 are supplied via the internal box header CN1 (only for models with Intel® Q87 chipset). USB 2.0 Port 2 and Port 3 are supplied via the internal pin header CN6.

  • Page 43: Table 29: Pin Assignment Cn7, Cn8, Cn9

    ATX-HSW-S - User Guide, Rev. 1.1 Table 29: Pin Assignment CN7, CN8, CN9 Signal Note +VBUS_A +5 V Supply for USB device +VBUS_B +5 V Supply for USB device USB_A- USB 2.0 Differential Pair (-) USB_B- USB 2.0 Differential Pair (-) USB_A+ USB 2.0 Differential Pair (+)

  • Page 44: Front Panel Audio Pin Header (Cn14)

    ATX-HSW-S - User Guide, Rev. 1.1 7.5. Front Panel Audio Pin Header (CN14) The front panel audio pin header provides audio output (Line-Out) and microphone (Mic-In) signals through the pin header CN14. Figure 22: Front Panel Audio Pin Header CN14...

  • Page 45: Front Panel Pin Header (Fp1 & Fp2)

    ATX-HSW-S - User Guide, Rev. 1.1 7.6. Front Panel Pin Header (FP1 & FP2) Figure 23: Front Panel Pin Header FP1 RSTBTN SPKR HLED Table 32: Pin Assignment FP1 Signal Note Reset Button + Speaker + Reset Button - HDD LED +...

  • Page 46: Table 35: Signal Description

    ATX-HSW-S - User Guide, Rev. 1.1 Signal Note Power Button + Power Button - Power LED - SM ALERT# BAT_LOW# SMBus Data SMBus Clock Table 35: Signal Description Signal Description Power LED - System Power LED. The power LED lights up when users turn on the system power, and blinks when the system is in sleep mode.

  • Page 47: Serial Com2 - Com6 Ports (Cn11, Cn2, Cn3, Cn4 & Cn5)

    ATX-HSW-S - User Guide, Rev. 1.1 7.7. Serial COM2 - COM6 Ports (CN11, CN2, CN3, CN4 & CN5) One RS232/422/485 COM port is supplied via the internal pin header CN11. Four RS232 COM ports are supplied via the internal pin header CN2, CN3, CN4 & CN5.

  • Page 48: Table 38: Pin Assignment Com5, Com6 (Cn4, Cn5)

    ATX-HSW-S - User Guide, Rev. 1.1 RS232 Signal Note NC, Key *: Pin configuration can be selected by Jumper JP1. Table 38: Pin Assignment COM5, COM6 (CN4, CN5) RS232 Signal Note NC, Key The COM ports need to install an OS patch from ITE. The patch is only available for Windows and is not available Linux.

  • Page 49: Digital Input / Output Pin Header (Cn9)

    ATX-HSW-S - User Guide, Rev. 1.1 7.8. Digital Input / Output Pin Header (CN9) Figure 26: Digital Input / Output Pin Header CN9 Table 40: Pin Assignment CN9 Signal Note DIO_0 DIO_8 DIO_1 DIO_9 DIO_2 DIO_10 DIO_3 DIO_11 DIO_4 DIO_12...

  • Page 50: Mpcie / Msata Socket (Mpcie1 & Mpcie2)

    ATX-HSW-S - User Guide, Rev. 1.1 7.9. mPCIe / mSATA Socket (MPCIE1 & MPCIE2) Two Full-sized Mini-PCI Express V1.2 sockets (MPCIE1 & MPCIE2) are offered for model with Intel® Q87 chipset while only one socket (MPCIE1) is offered for model with Intel® H81 chipset.

  • Page 51: Table 42: Pin Assignment Mpcie2

    ATX-HSW-S - User Guide, Rev. 1.1 Signal Note PERST# PERn0 / SATA_RX+* +3.3VSB PERp0 / SATA_RX-* Ground Ground +1.5V Ground SMB_CLK PETn0 / SATA_TX-* SMB_DATA PETp0 / SATA_TX+* Ground Ground USB_D- Ground USB_D+ +3.3VSB Ground +3.3VSB LED_WWAN# Ground / NC*...
  • Page 52 ATX-HSW-S - User Guide, Rev. 1.1 Signal Note WAKE# +3.3VSB Reserved Ground Reserved +1.5V CLKREQ# Reserved Ground Reserved REFCLK- Reserved REFCLK+ Reserved Ground Reserved Reserved Ground Reserved W_Disable# Ground PERST# PERn0 / SATA_RX+* +3.3VSB PERp0 / SATA_RX-* Ground Ground +1.5V...
  • Page 53 ATX-HSW-S - User Guide, Rev. 1.1 Signal Note Ground / NC* LED_WLAN# Reserved LED_WPAN# Reserved +1.5V Reserved Ground Reserved +3.3VSB *: Pin configuration can be selected by Jumper JP6. www.kontron.com // 53...

  • Page 54: Sim Card Holder For Mpcie1 (Sim1)

    ATX-HSW-S - User Guide, Rev. 1.1 7.10. SIM Card Holder for MPCIE1 (SIM1) Figure 28: SIM Card Holder SIM1 Table 43: Pin Assignment SIM1 Signal Description Note UIM_PWR Power +5V or +3.3V UIM_RST Reset signal UIM_CLK Clock signal Ground UIM_VPP...

  • Page 55: Pci Slot (Pci1, Pci2, Pci3 & Pci4)

    ATX-HSW-S - User Guide, Rev. 1.1 7.11. PCI Slot (PCI1, PCI2, PCI3 & PCI4) The ATX-HSW-S supports four 32-bit 33 MHz PCI cards via Slot PCI1, PCI2, PCI3 & PCI4. Figure 29: PCI Slot PCI1, PCI2, PCI3, PCI4 Table 44: Pin Assignment PCI1, PCI2, PCI3, PCI4...
  • Page 56 ATX-HSW-S - User Guide, Rev. 1.1 Side B Side A Signal Description Signal Description Reserved +3.3VAUX +3.3 V auxiliary power Ground RST# Reset Clock +5 V power Ground GNT# Grant PCI use REQ# Request Ground +5 V power PME# Power Management Event...
  • Page 57 ATX-HSW-S - User Guide, Rev. 1.1 Side B Side A Signal Description Signal Description AD[05] Address / Data 05 AD[04] Address / Data 04 AD[03] Address / Data 03 Ground Ground AD[02] Address / Data 02 AD[01] Address / Data 01...

  • Page 58: Pci Express X1 Slot (Pcie1 & Pcie2)

    ATX-HSW-S - User Guide, Rev. 1.1 7.12. PCI Express x1 Slot (PCIE1 & PCIE2) The ATX-HSW-S supports two PCI Express x1 via slot PCIE1 and PCIE2. The single-lane (x1) PCI Express (PCIE1 & PCIE2) port can be used for external PCI Express cards inclusive graphics card.

  • Page 59: Pci Express X16 Slot (Peg1)

    ATX-HSW-S - User Guide, Rev. 1.1 7.13. PCI Express x16 Slot (PEG1) The ATX-HSW-S supports one PCI Express x16 via slot PEG1. The 16-lane (x16) PCI Express (PEG1) port can be used for external PCI Express cards inclusive graphics card.
  • Page 60 ATX-HSW-S - User Guide, Rev. 1.1 Side B Side A Signal Description Signal Description SMDAT SMBus data Reserved Ground Reserved +3.3V +3.3 V power Reserved Reserved +3.3V +3.3 V power +3.3VSB +3.3 V standby power +3.3V +3.3 V power WAKE#...
  • Page 61 ATX-HSW-S - User Guide, Rev. 1.1 Side B Side A Signal Description Signal Description Ground HSIP7 Receiver Lane 7 differential pair PRSNT2# Hot plug presence detect HSIN7 Ground Ground HSOP8 Transmitter Lane 8 differential pair Reserved HSON8 Ground Ground HSIP8...

  • Page 62: Switches And Jumpers

    ATX-HSW-S - User Guide, Rev. 1.1 7.14. Switches and Jumpers The product has several jumpers which must be properly configured to ensure correct operation. Figure 32: Jumper Connector For a three-pin jumper (see Figure 35), the jumper setting is designated “1-2” when the jumper connects pins 1 and 2.

  • Page 63: Keyboard Lock Selection (Jp2)

    ATX-HSW-S - User Guide, Rev. 1.1 “X” = Jumper set (short) and “-” = jumper not set (open) 7.14.2. Keyboard Lock Selection (JP2) Figure 34: Keyboard Lock Selection JP2 Table 48: Pin Assignment JP2 Jumper 1 Position Description Pin 1-2...

  • Page 64: Mpcie / Msata Selection For Mpcie2 & Mpcie1 (Jp6 & Jp9)

    ATX-HSW-S - User Guide, Rev. 1.1 Jumper 1 Position Description Pin 1-2 Pin 2-3 Normal (default position) Clear RTC_RST Register (board does not boot with the jumper in this position) “X” = Jumper set (short) and “-” = jumper not set (open) Do not leave the jumper in position 2-3, otherwise if the power is disconnected, the battery will fully deplete within a few weeks.

  • Page 65: Terminator Selection For Com1 & Com2 (Jp11 & Jp12)

    ATX-HSW-S - User Guide, Rev. 1.1 “X” = Jumper set (short) and “-” = jumper not set (open) 7.14.7. Terminator Selection for COM1 & COM2 (JP11 & JP12) Figure 39: COM Terminator Selection JP11, JP12 Table 53: Pin Assignment JP11, JP12...

  • Page 66: Pin-9 Selection For Com1 & Com2 (Jp14)

    ATX-HSW-S - User Guide, Rev. 1.1 7.14.9. Pin-9 Selection for COM1 & COM2 (JP14) Figure 41: Pin-9 Selection JP14 Table 55: Pin Assignment JP14 Jumper 1 Position Description Pin 1-3 Pin 3-5 Pin 5-7 Pin 7-9 COM1, Pin-9 = +12V...
  • Page 67 ATX-HSW-S - User Guide, Rev. 1.1 “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 67...

  • Page 68: 8/ Bios

    Supervisor Password (see Security menu), press <RETURN>, and proceed with step 5. 5. A setup menu will appear. The ATX-HSW-S uEFI BIOS setup program uses a hot key-based navigation system. A hot key legend bar is located on the bottom of the setup screens.

  • Page 69: Setup Menus

    ATX-HSW-S - User Guide, Rev. 1.1 8.2. Setup Menus The Setup utility features shows six menus in the selection bar at the top of the screen:  Main  Advanced  Power  Security  Boot  Save & Exit The Setup menus are selected via the left and right arrow keys.

  • Page 70: Figure 43: Bios Main Menu Screen System Data And Time

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 43: BIOS Main Menu Screen System Data and Time BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit Product Information Product Name ATX-HSW-S-Q87 BIOS Version R0.05 (x64) BIOS Build Date 08/04/2015 ME FW Version 9.1.25.1005...

  • Page 71: Advanced Setup Menu

    ATX-HSW-S - User Guide, Rev. 1.1 8.2.2. Advanced Setup Menu The Advanced setup menu provides sub-screens and functions for advanced configurations. The following sub- screen functions are included in the menu:  LAN & Audio Configuration  Display Configuration ...

  • Page 72: Figure 44: Bios Advanced Menu

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 44: BIOS Advanced Menu BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit Onboard LAN1 Controller [Enabled] Onboard LAN1 Boot [Disabled] Onboard LAN2 Controller [Enabled] Onboard LAN2 Boot [Disabled] Audio Controller [Enabled] >...

  • Page 73: Figure 45: Bios Advanced Menu - Display Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 45: BIOS Advanced Menu - Display Configuration BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit Display Configuration Primary Display [Auto] → ←: Select Screen UWA Frame Buffer Size [256MB] ↑ ↓: Select Item...

  • Page 74: Figure 46: Bios Advanced Menu - Super Io Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 46: BIOS Advanced Menu - Super IO Configuration BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit Super IO Chip Parameters > Serial Port 1 Configuration → ←: Select Screen > Serial Port 2 Configuration ↑...

  • Page 75: Figure 48: Bios Advanced Menu - Super Io Configuration - Serial Port 2 Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Feature Option Description Serial Port 1 Type [RS232], [RS422], Select an appropriate type for Serial Port 1. [RS485] RS485 Duplex Mode [Half Duplex], [Full Select an appropriate RS485 Duplex Mode. Duplex] Figure 48: BIOS Advanced Menu - Super IO Configuration - Serial Port 2 Configuration...

  • Page 76: Figure 49: Bios Advanced Menu - Super Io Configuration - Serial Port 3 Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 49: BIOS Advanced Menu - Super IO Configuration - Serial Port 3 Configuration BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit Serial Port 3 Configuration Serial Port [Enabled] → ←: Select Screen Device Settings IO=3E8h;...

  • Page 77: Figure 51: Bios Advanced Menu - Super Io Configuration - Serial Port 5 Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Feature Option Description Serial Port [Disabled], [Enabled] Select whether to enable or disable Serial Port (COM). Change Settings [Auto], [IO=2E8h; Select an optional setting for Super IO device. IRQ=7;], [IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;], [IO=2E8h;...

  • Page 78: Figure 52: Bios Advanced Menu - Super Io Configuration - Serial Port 6 Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 52: BIOS Advanced Menu - Super IO Configuration - Serial Port 6 Configuration BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit Serial Port 6 Configuration Serial Port [Enabled] → ←: Select Screen Device Settings IO=2E0h;...

  • Page 79: Figure 53: Bios Advanced Menu - Cpu Chipset Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 53: BIOS Advanced Menu - CPU Chipset Configuration BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit CPU Chipset Configuration EIST [Enabled] → ←: Select Screen Active Processor Cores [All] ↑ ↓: Select Item...

  • Page 80: Figure 54: Bios Advanced Menu - Sata Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 54: BIOS Advanced Menu - SATA Configuration BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit SATA Configuration SATA Controller(s) [Enabled] SATA Mode Selection [AHCI] SATA Controller Speed [Default] Serial ATA Port 1...

  • Page 81: Figure 55: Bios Advanced Menu - Usb Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 55: BIOS Advanced Menu - USB Configuration BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit USB Configuration USB Devices: → ←: Select Screen 2 Hubs ↑ ↓: Select Item Enter: Select...

  • Page 82: Figure 56: Bios Advanced Menu - Amt Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 56: BIOS Advanced Menu - AMT Configuration* BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit AMT Configuration Intel AMT [Enabled] → ←: Select Screen Un-Configure ME [Disabled] ↑ ↓: Select Item Enter: Select +/-: Change Opt.

  • Page 83: Figure 57: Bios Advanced Menu - Tpm Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 57: BIOS Advanced Menu - TPM Configuration* BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit TPM Configuration Security Device Support [Disabled] → ←: Select Screen Current Status Information ↑ ↓: Select Item Enter: Select +/-: Change Opt.

  • Page 84: Figure 58: Bios Advanced Menu - Intel® Rapid Start Technology

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 58: BIOS Advanced Menu - Intel® Rapid Start Technology* BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit Intel® Rapid Start Technology [Disabled] → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt.

  • Page 85: Figure 59: Bios Advanced Menu - Dio Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 59: BIOS Advanced Menu - DIO Configuration BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit DIO Configuration User Configuration [Disabled] DIO_0* [Output High] DIO_1* [Output High] DIO_2* [Output High] DIO_3*...
  • Page 86 ATX-HSW-S - User Guide, Rev. 1.1 Feature Option Description User Configuration [Enabled], [Disabled] Select whether or not to allow user to set the DO pin output value. DIO_0..15 [Output Low], [Output Set up the DIO pin input / output value.

  • Page 87: Figure 60: Bios Advanced Menu - H/W Monitor

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 60: BIOS Advanced Menu - H/W Monitor BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit PC Health Status CPU Warning Temperature [Disabled] > Smart FAN Configuration CPU Temperature : +40 C...
  • Page 88 ATX-HSW-S - User Guide, Rev. 1.1 BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit Version 2.17.1249. Copyright (C) 2015, American Megatrends, Inc. Feature Option Description CPU FAN Setting [Manual], [Smart] Switch the CPU FAN control mode. SYS FAN Setting [Manual], [Smart] Switch the SYS FAN control mode.

  • Page 89: Power Setup Menu

    ATX-HSW-S - User Guide, Rev. 1.1 8.2.3. Power Setup Menu The Power setup menu provides functions and a sub-screen for power configurations. The following sub-screen function is included in the menu:  WatchDog Timer Configuration Figure 61: BIOS Power Setup Menu...
  • Page 90 ATX-HSW-S - User Guide, Rev. 1.1 Feature Option Description Resume By Ring [Disabled], [Enabled] Select whether to enable or disable Wake from Ring Device. Device Resume By RTC Alarm [Disabled], [Enabled] Select whether to enable or disable Wake Up on Alarm, to turn on your system on a special day of the month.

  • Page 91: Figure 62: Bios Power Setup Menu - Watchdog Timer Configuration

    ATX-HSW-S - User Guide, Rev. 1.1 Figure 62: BIOS Power Setup Menu - WatchDog Timer Configuration BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit WatchDog Timer Configuration WDT Function [Disabled] → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt.

  • Page 92: Security Setup Menu

    The Security setup menu provides information about the passwords and functions for specifying the security settings. The passwords are case-sensitive. The ATX-HSW-S provides no factory-set passwords. If there is already a password installed, the system asks for this first. To clear a password, simply enter nothing and acknowledge by pressing <RETURN>.

  • Page 93: Remember The Password

    ATX-HSW-S - User Guide, Rev. 1.1 8.2.4.1. Remember the password It is highly recommended to keep a record of all passwords in a safe place. Forgotten passwords results in being locked out of the system. If the system cannot be booted because the User Password or the Supervisor Password are not know, contact Kontron Support for further assistance.

  • Page 94: Boot Setup Menu

    ATX-HSW-S - User Guide, Rev. 1.1 8.2.5. Boot Setup Menu The boot setup menu lists the for boot device priority order, that is generated dynamically. Figure 64: BIOS Boot Setup Menu BIOS SETUP UTILITY Main Advanced Power Security Boot Save & Exit...

  • Page 95: Save & Exit Setup Menu

    ATX-HSW-S - User Guide, Rev. 1.1 8.2.6. Save & Exit Setup Menu The exit setup menu provides functions for handling changes made to the UEFI BIOS settings and the exiting of the setup program. Figure 65: BIOS Boot Setup Menu...

  • Page 96: Appendix A: List Of Acronyms

    ATX-HSW-S - User Guide, Rev. 1.1 Appendix A: List of Acronyms The following table does not contain the complete acronyms used in signal names, signal type definitions or similar. A description of the signals is included in the I/O Connector and Internal connector chapters within this user guide.

  • Page 97: About Kontron

    Kontron is a listed company. Its shares are traded in the Prime Standard segment of the Frankfurt Stock Exchange and on other exchanges under the symbol "KBC". For more information, please visit: www.kontron.com...
