6. Enter a percentage from 1 through 100 for % utilization. When throughput reaches this
percentage of port capacity, a threshold alert will occur.
7. Enter the amount of cumulative minutes in which the % utilization should exist during the
notification interval before an alert is generated. You can also select At any time if you want an
alert to occur whenever the set % utilization is reached. The valid range is from 1 to the interval
value set in step 8.
8. Enter the interval in minutes in which throughput is measured and threshold notifications can
occur. The valid range is 5 minutes to 70,560 minutes.

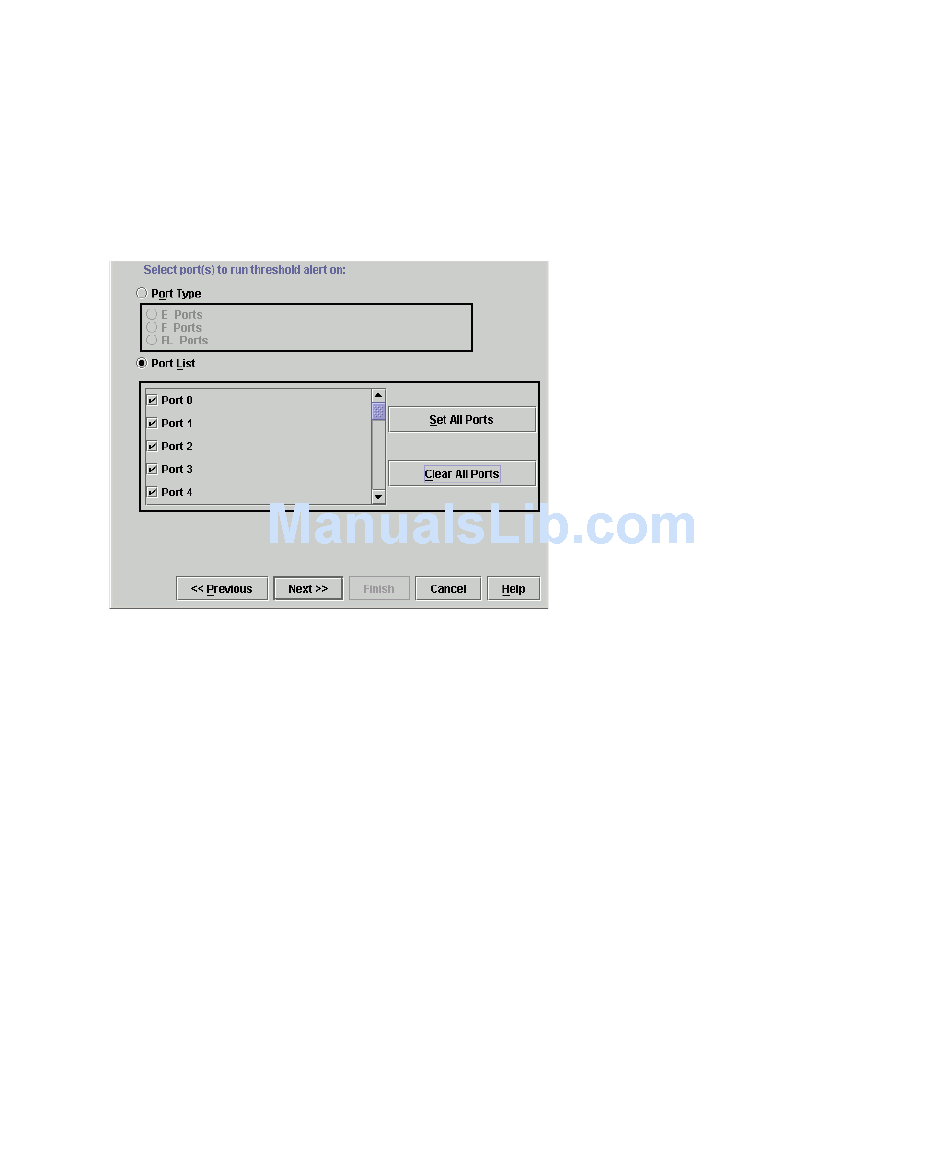

9. Click Next. A new screen is displayed for selecting ports for the alerts, as shown in
Figure 28 New Threshold Alerts dialog box
10.Select either Port Type or Port List.
• For Port Type, select either E_Ports or F_Ports. This will cause this alert to generate for all
ports configured as E_Ports or F_Ports respectively.
• For Port List, you can select individual ports by clicking the check box by each port number
or set all ports. Selecting Set All Ports places a check mark by each port number. Selecting
Clear All Ports will clear the check marks by each port number.
third screen
—
Edge Switch 2/24 installation guide
Figure 28.
