6. Ensure that the Connect using field displays COM1 or COM2 (depending on the serial
communication port connection to the switch), and click OK. The Port Settings dialog box is
displayed

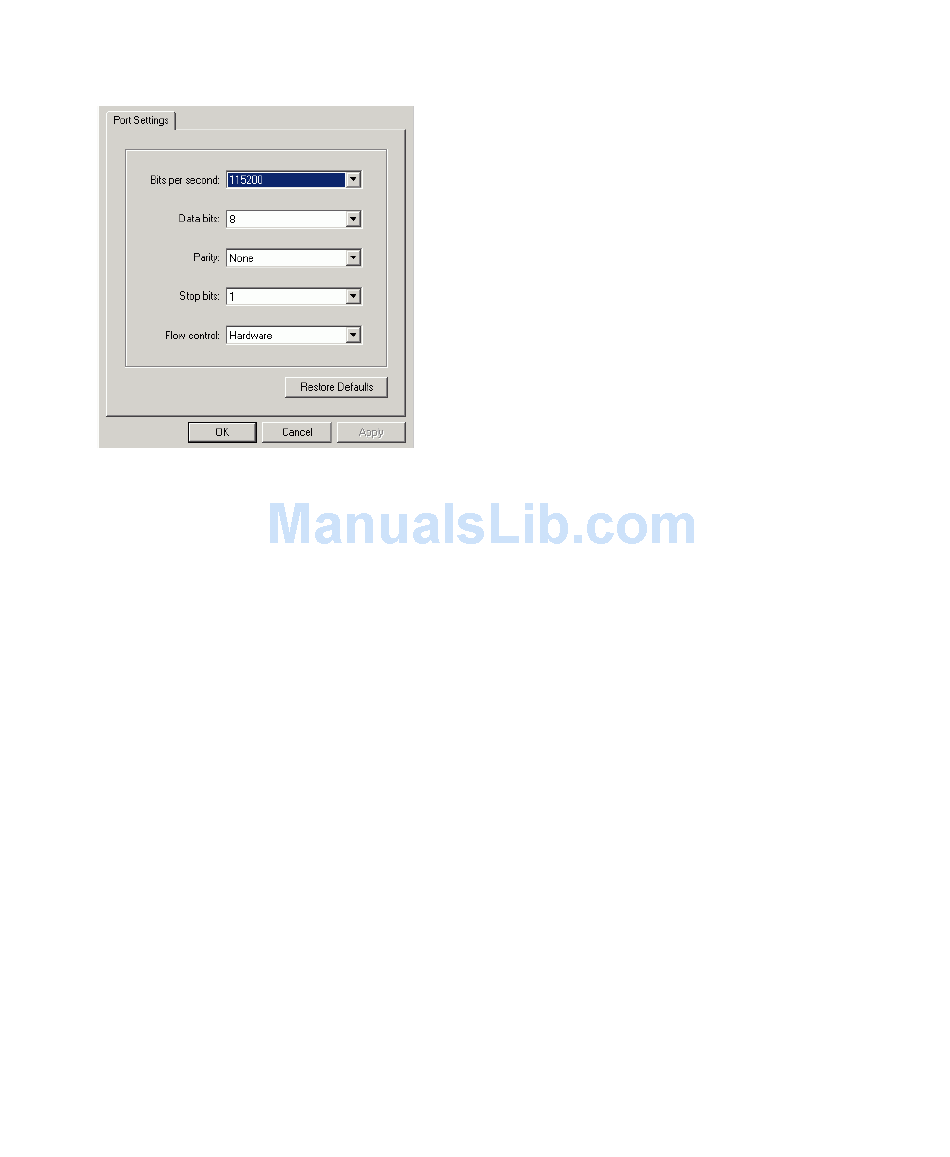

Figure 9

Port Settings dialog box

7. Enter the Port Settings parameters as follows:
• Bits per second: 115200
• Data bits: 8
• Parit: None
• Stop bits: 1
• Flow control: Hardware
When the parameters are set, click OK. The HyperTerminal window appears.
36 Installing and configuring the Edge Switch 2/24
(Figure 9).
