Back up the configuration

Use these steps to back up the configuration file on the HAFM appliance.
1. At the HAFM appliance, open the HAFM application. The Products View page is displayed.
2. At the SAN management application's physical map, right-click the product icon representing
the switch for which a configuration file is to be backed up, then select Element Manager from
the pop-up menu. The application opens.
3. Select Maintenance > Backup & Restore Configuration. The Backup and Restore Configuration
dialog box is displayed

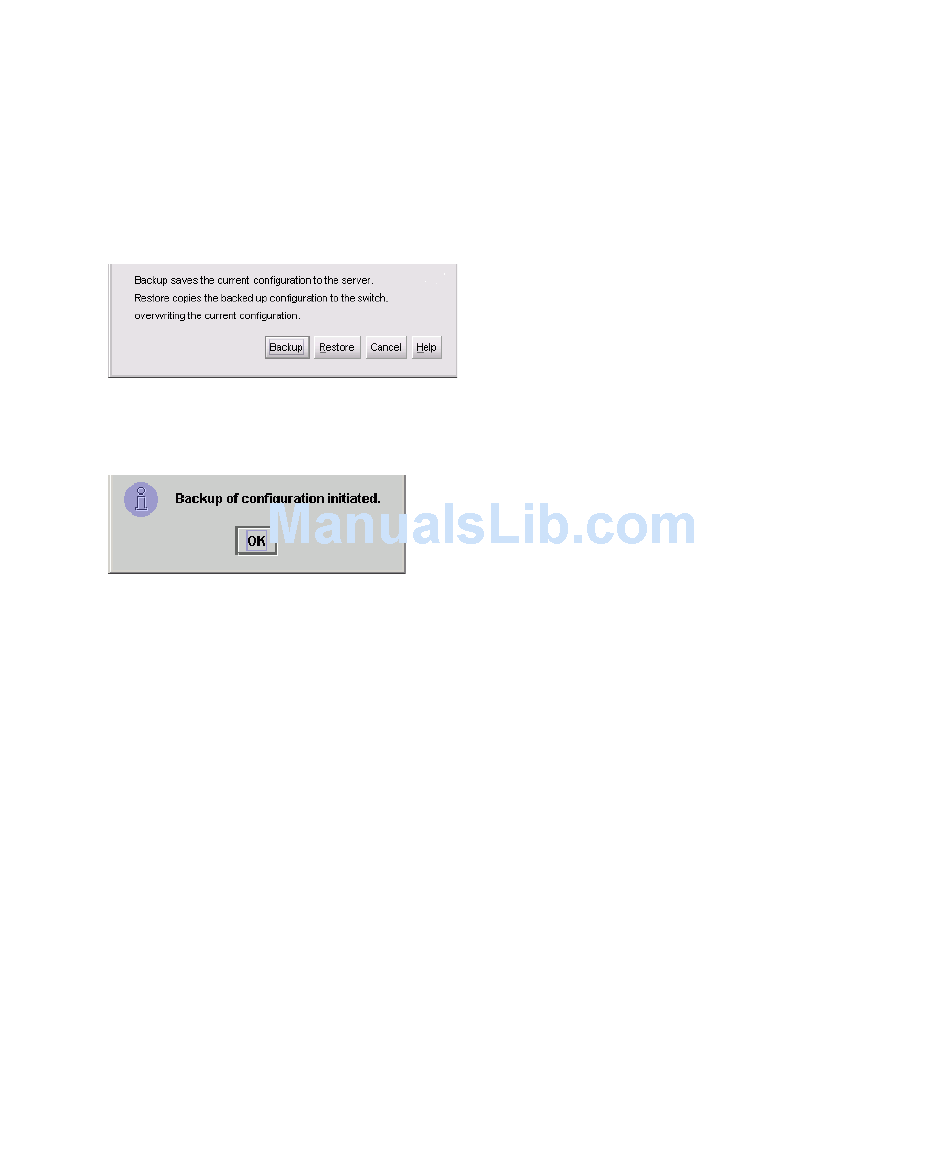

Figure 52

Backup and Restore Configuration dialog box

4. Click Backup. An Information dialog box is displayed, indicating the backup operation was
initiated (Figure
Figure 53

Information dialog box

5. Click OK to complete the backup operation and close the dialog box.
(Figure 52).
53).
Edge Switch 2/24 installation guide 85
