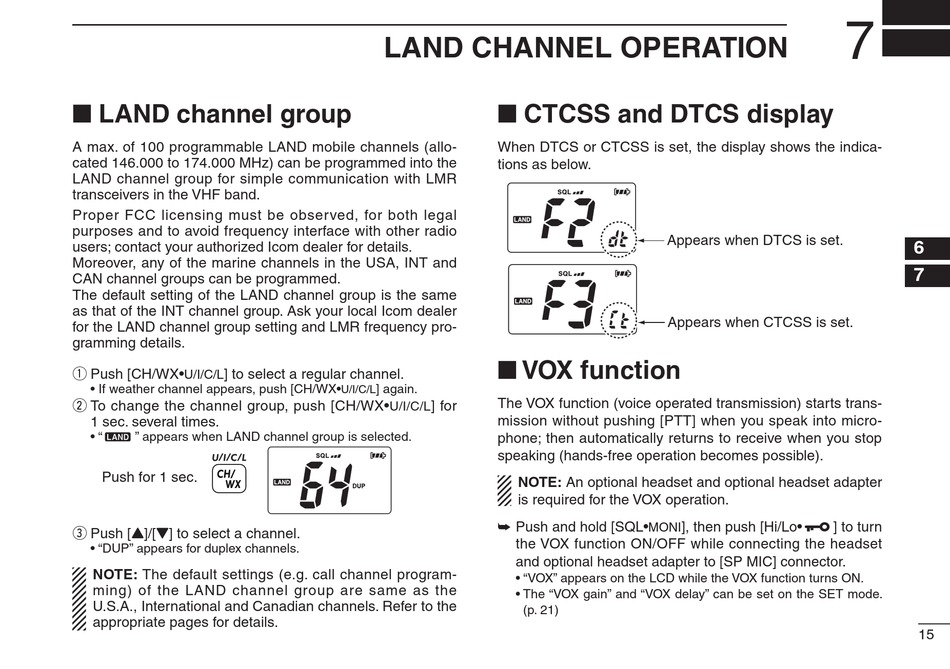

■ LAND channel group

A max. of 100 programmable LAND mobile channels (allo-
cated 146.000 to 174.000 MHz) can be programmed into the
LAND channel group for simple communication with LMR
transceivers in the VHF band.
Proper FCC licensing must be observed, for both legal
purposes and to avoid frequency interface with other radio
users; contact your authorized Icom dealer for details.
Moreover, any of the marine channels in the USA, INT and
CAN channel groups can be programmed.
The default setting of the LAND channel group is the same
as that of the INT channel group. Ask your local Icom dealer
for the LAND channel group setting and LMR frequency pro-
gramming details.
q Push [CH/WX•
] to select a regular channel.
U/I/C/L
• If weather channel appears, push [CH/WX•
w To change the channel group, push [CH/WX•
1 sec. several times.
• " " appears when LAND channel group is selected.
Push for 1 sec.
e Push [Y]/[Z] to select a channel.
• "DUP" appears for duplex channels.
NOTE: The default settings (e.g. call channel program-
ming) of the LAND channel group are same as the
U.S.A., International and Canadian channels. Refer to the
appropriate pages for details.

LAND CHANNEL OPERATION

■ CTCSS and DTCS display

When DTCS or CTCSS is set, the display shows the indica-
tions as below.

■ VOX function

] again.
U/I/C/L
The VOX function (voice operated transmission) starts trans-
] for
U/I/C/L
mission without pushing [PTT] when you speak into micro-
phone; then automatically returns to receive when you stop
speaking (hands-free operation becomes possible).
NOTE: An optional headset and optional headset adapter
is required for the VOX operation.
➥ Push and hold [SQL•
the VOX function ON/OFF while connecting the headset
and optional headset adapter to [SP MIC] connector.
• "VOX" appears on the LCD while the VOX function turns ON.
• The "VOX gain" and "VOX delay" can be set on the SET mode.
Appears when DTCS is set.
Appears when CTCSS is set.
], then push [Hi/Lo•
MONI
(p. 21)
7
6
7
] to turn
15
