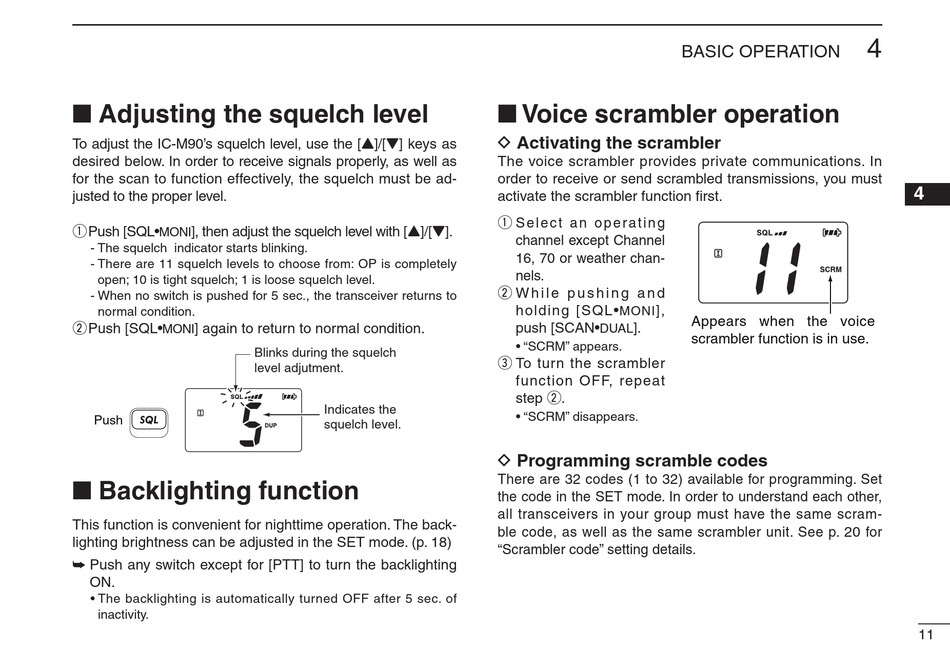

■ Adjusting the squelch level

To adjust the IC-M90's squelch level, use the [Y]/[Z] keys as
desired below. In order to receive signals properly, as well as
for the scan to function effectively, the squelch must be ad-
justed to the proper level.
q Push [SQL•
], then adjust the squelch level with [Y]/[Z].
MONI
- The squelch indicator starts blinking.
- There are 11 squelch levels to choose from: OP is completely
open; 10 is tight squelch; 1 is loose squelch level.
- When no switch is pushed for 5 sec., the transceiver returns to
normal condition.
w Push [SQL•
] again to return to normal condition.
MONI
Push
■ Backlighting function
This function is convenient for nighttime operation. The back-
lighting brightness can be adjusted in the SET mode. (p. 18)
➥ Push any switch except for [PTT] to turn the backlighting
ON.
• The backlighting is automatically turned OFF after 5 sec. of
inactivity.
Blinks during the squelch
level adjutment.
Indicates the
squelch level.

■ Voice scrambler operation

D Activating the scrambler
The voice scrambler provides private communications. In
order to receive or send scrambled transmissions, you must
activate the scrambler function fi rst.
q S e l e c t a n o p e ra t i n g
channel except Channel
16, 70 or weather chan-
nels.
w W h i l e p u s h i n g a n d
holding [SQL• ],
MONI
push [SCAN• ].
DUAL
• "SCRM" appears.
e To turn the scrambler
function OFF, repeat
step w.
• "SCRM" disappears.
D Programming scramble codes
There are 32 codes (1 to 32) available for programming. Set
the code in the SET mode. In order to understand each other,
all transceivers in your group must have the same scram-
ble code, as well as the same scrambler unit. See p. 20 for
"Scrambler code" setting details.
BASIC OPERATION
Appears when the voice
scrambler function is in use.
