Icom IC-M90 Instruction Manual page 12

3

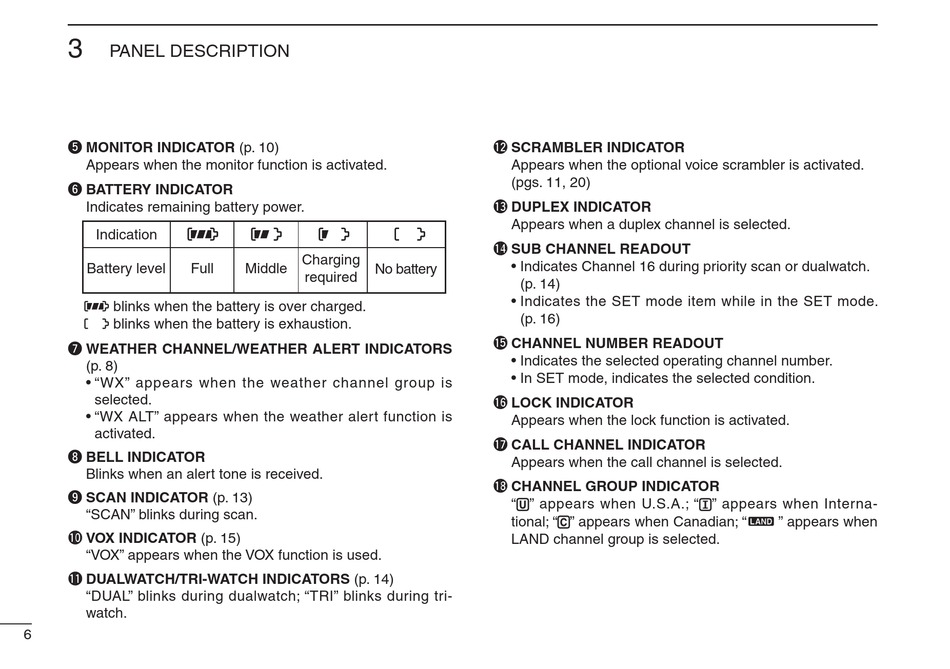

PANEL DESCRIPTION
t MONITOR INDICATOR (p. 10)
Appears when the monitor function is activated.
y BATTERY INDICATOR
Indicates remaining battery power.
Indication
Battery level Full
blinks when the battery is over charged.
blinks when the battery is exhaustion.
u WEATHER CHANNEL/WEATHER ALERT INDICATORS
(p. 8)
• "WX" appears when the weather channel group is
selected.
• "WX ALT" appears when the weather alert function is
activated.
i BELL INDICATOR
Blinks when an alert tone is received.
o SCAN INDICATOR (p. 13)
"SCAN" blinks during scan.
!0 VOX INDICATOR (p. 15)
"VOX" appears when the VOX function is used.
!1 DUALWATCH/TRI-WATCH INDICATORS (p. 14)
"DUAL" blinks during dualwatch; "TRI" blinks during tri-
watch.
6
Charging
Middle No battery
required
!2 SCRAMBLER INDICATOR
Appears when the optional voice scrambler is activated.
(pgs. 11, 20)
!3 DUPLEX INDICATOR
Appears when a duplex channel is selected.
!4 SUB CHANNEL READOUT
• Indicates Channel 16 during priority scan or dualwatch.
(p. 14)
• Indicates the SET mode item while in the SET mode.
(p. 16)
!5 CHANNEL NUMBER READOUT
• Indicates the selected operating channel number.
• In SET mode, indicates the selected condition.
!6 LOCK INDICATOR
Appears when the lock function is activated.
!7 CALL CHANNEL INDICATOR
Appears when the call channel is selected.
!8 CHANNEL GROUP INDICATOR
" " appears when U.S.A.; " " appears when Interna-
tional; " " appears when Canadian; "
LAND channel group is selected.
" appears when
