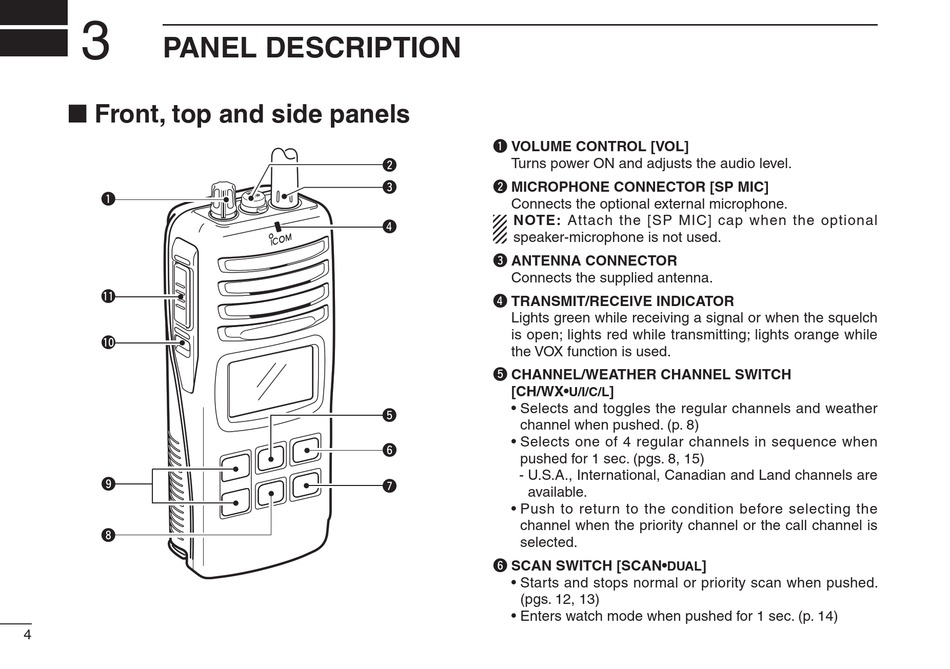

PANEL DESCRIPTION

■ Front, top and side panels

q
!1
!0
o
i
4
q VOLUME CONTROL [VOL]
w
Turns power ON and adjusts the audio level.
e
w MICROPHONE CONNECTOR [SP MIC]
Connects the optional external microphone.
NOTE: Attach the [SP MIC] cap when the optional
r
speaker-microphone is not used.
e ANTENNA CONNECTOR
Connects the supplied antenna.
r TRANSMIT/RECEIVE INDICATOR
Lights green while receiving a signal or when the squelch
is open; lights red while transmitting; lights orange while
the VOX function is used.
t CHANNEL/WEATHER CHANNEL SWITCH
[CH/WX•
• Selects and toggles the regular channels and weather
t
channel when pushed. (p. 8)
• Selects one of 4 regular channels in sequence when
y
pushed for 1 sec. (pgs. 8, 15)
- U.S.A., International, Canadian and Land channels are
u
available.
• Push to return to the condition before selecting the
channel when the priority channel or the call channel is
selected.
y SCAN SWITCH [SCAN•
• Starts and stops normal or priority scan when pushed.
(pgs. 12, 13)
• Enters watch mode when pushed for 1 sec. (p. 14)
]
U/I/C/L
]
DUAL
