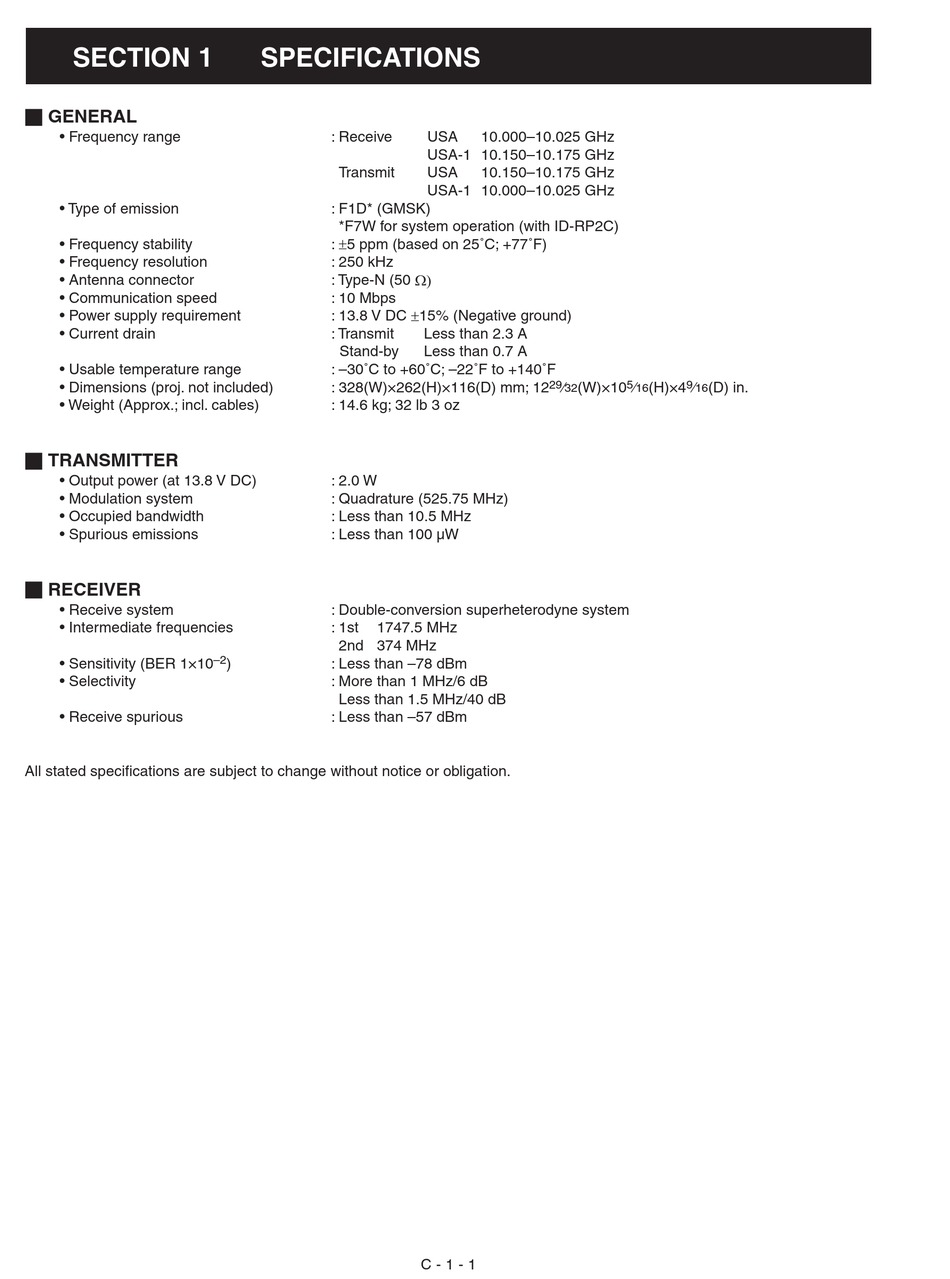

SECTION 1
¤ GENERAL
• Frequency range
• Type of emission
• Frequency stability
• Frequency resolution
• Antenna connector
• Communication speed
• Power supply requirement
• Current drain
• Usable temperature range
• Dimensions (proj. not included)
• Weight (Approx.; incl. cables)
¤ TRANSMITTER
• Output power (at 13.8 V DC)
• Modulation system
• Occupied bandwidth
• Spurious emissions
¤ RECEIVER
• Receive system
• Intermediate frequencies
• Sensitivity (BER 1×10
• Selectivity
• Receive spurious
All stated specifi cations are subject to change without notice or obligation.

SPECIFICATIONS

: Receive
Transmit
: F1D* (GMSK)
*F7W for system operation (with ID-RP2C)
: ±5 ppm (based on 25˚C; +77˚F)
: 250 kHz
: Type-N (50 Ω)
: 10 Mbps
: 13.8 V DC ±15% (Negative ground)
: Transmit
Stand-by
: –30˚C to +60˚C; –22˚F to +140˚F
: 328(W)×262(H)×116(D) mm; 12
: 14.6 kg; 32 lb 3 oz
: 2.0 W
: Quadrature (525.75 MHz)
: Less than 10.5 MHz
: Less than 100 µW
: Double-conversion superheterodyne system
: 1st 1747.5 MHz
2nd 374 MHz
–2
) : Less than –78 dBm
: More than 1 MHz/6 dB
Less than 1.5 MHz/40 dB
: Less than –57 dBm
USA 10.000–10.025 GHz
USA-1 10.150–10.175 GHz
USA 10.150–10.175 GHz
USA-1 10.000–10.025 GHz
Less than 2.3 A
Less than 0.7 A
29
⁄ (W)×10
32
C - 1 - 1
5 9
⁄ (H)×4 ⁄ (D) in.
16 16
