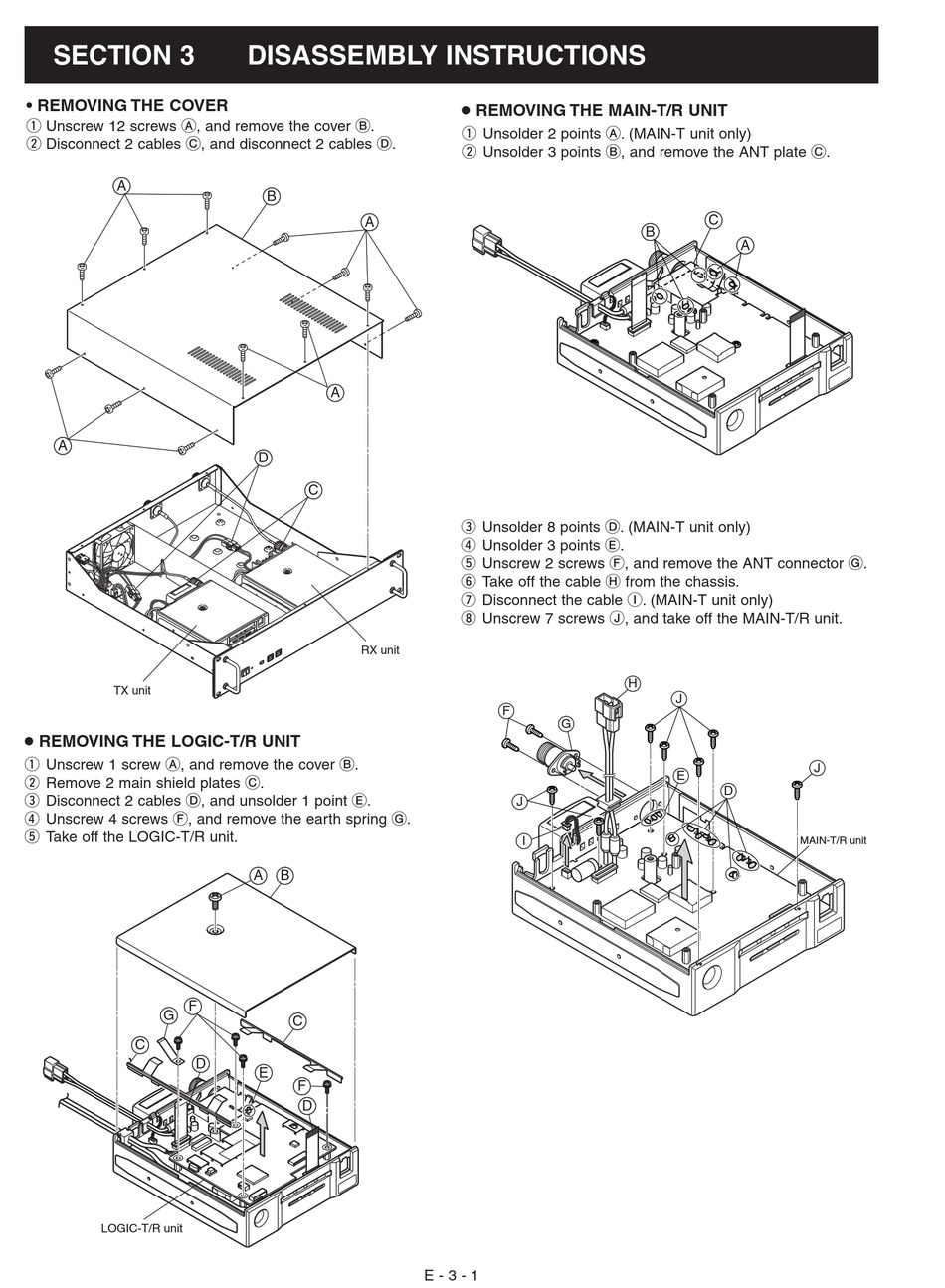

SECTION 3
• REMOVING THE COVER
1 Unscrew 12 screws A, and remove the cover B.
2 Disconnect 2 cables C, and disconnect 2 cables D.
A
A
TX unit
•
REMOVING THE LOGIC-T/R UNIT
1 Unscrew 1 screw A, and remove the cover B.
2 Remove 2 main shield plates C.
3 Disconnect 2 cables D, and unsolder 1 point E.
4 Unscrew 4 screws F, and remove the earth spring G.
5 Take off the LOGIC-T/R unit.
F
G
C
D
LOGIC-T/R unit
DISASSEMBLY INSTRUCTIONS
B
A
A
D
C
RX unit
A B
C
E
F
D
E - 3 - 1
•
REMOVING THE MAIN-T/R UNIT
1 Unsolder 2 points A. (MAIN-T unit only)
2 Unsolder 3 points B, and remove the ANT plate C.
3 Unsolder 8 points D. (MAIN-T unit only)
4 Unsolder 3 points E.
5 Unscrew 2 screws F, and remove the ANT connector G.
6 Take off the cable H from the chassis.
7 Disconnect the cable I. (MAIN-T unit only)
8 Unscrew 7 screws J, and take off the MAIN-T/R unit.
H
F
G
J
I
C
B
A
J
J
E
D
MAIN-T/R unit
